EasyPump series have the unique tube clamp linkage mechanism, with the opening process of the upper block, the tube clamp naturally lifts, and the user can easily put in the tube. With the closing process of the upper block, the tube clamp automatically resets and fixes the tube. At the same time, the "Trigger lever assist mechanism" assists the user in pressing the upper pressure block.
This pump adopted DC brushless motor drive.
Technical Parameter
Power supply
DC24V/6.5A
Speed control voltage
0-5V
Motor speed
0-600rpm±5%
Speed signal output
Pulse frequency output
Ambient temperature
0-40℃
Ambient humidity
≤80% RH, no condensation
Working environment
Keep away from heating equipment, avoid dust, oil mist, corrosive gas and strong vibration.
Product lctroduction
Pump Head
Tubing
lDxWall thickness(mm)
mL/r
Flow Rate(mL/min) (0.1-600rpm)
Tubing Max.Pressure(Mpa)
Weight(kg)
Intermittent
Continuous
Single Channel EasyPump I/III
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
0.6
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
25#
4.8x1.6
1.967
0.1967-1180
0.24
0.14
17#
6.4x1.6
3.333
0.3333-2000
0.14
0.10
18#
7.9x1.6
4.3
0.43-2580
0.10
0.07
Single Channel EasyPump II/IV
15#
4.8x2.4
1.8
0.18-1080
0.27
0.17
24#
6.4x2.4
2.733
0.2733-1640
35#
7.9x2.4
3.833
0.3833-2300
0.24
0.14
36#
9.6x2.4
5.167
0.5167-3100
Dual Channel EasyPump V/VI
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
25#
4.8x1.6
1.967
0.1967-1180
0.24
0.14
Tubing Installation Procedure
Invention Patent

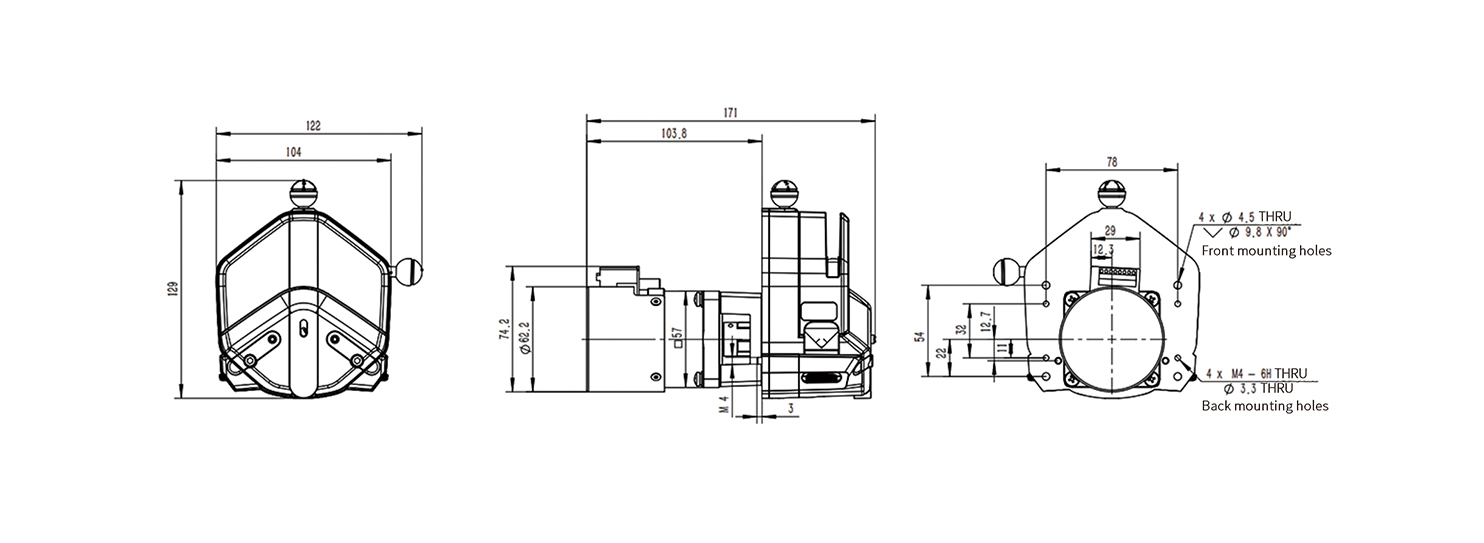

Dimension（Unit：mm）
