YZ35-II pump head housing is produced with high-pressure die-casting aluminum, ensuring high strength and good consistency.
Equipped with a standard electromagnetic sensor that outputs a cover-open to stop signal to enable the cover-open to stop function.
The optimized tubing clamp structure allows for easy installation and removal of the tubing, preventing abnormal damage to the tubing.
Added a lever limiter to securely fix the lever, preventing loosening due to vibrations.
304 stainless steel roller assembly, resistant to liquid leakage and corrosion.
Technical Parameter
Model No.
OEM-Z501
Motor type
DC geared motor
Power supply
DC 24V
Speed(rpm)
600
Speed error
≤±10%
Working environment
0-40℃, 80% RH
Flow Range
Pump Head
Tubing
ID×Wall thickness (mm)
mL/r
Flow rate(mL/min) (0.1-600rpm)
Tubing pressure resistance(Mpa)
Continuous
Intermittent
YZ35
26#
6.4×3.3
6.9
0.69-4200
0.27
0.2
73#
9.6×3.3
12.3
1.23-7400
0.27
0.2
82#
12.7×3.3
20
2-12000
0.14
0.1
Application Cases
Large volume transfering and dispensing.

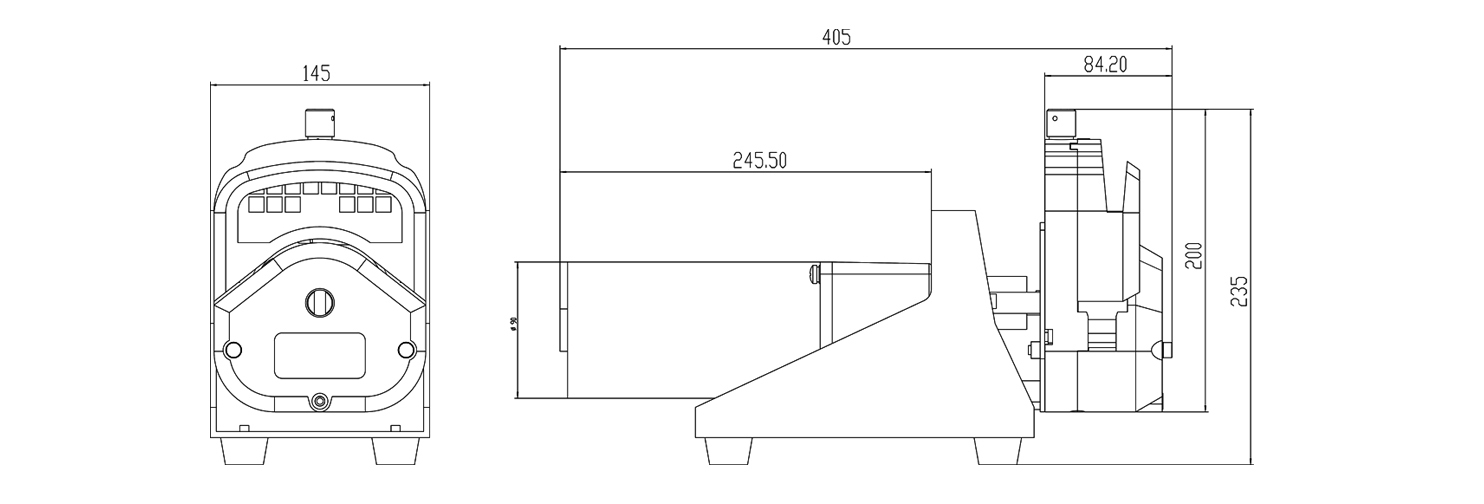

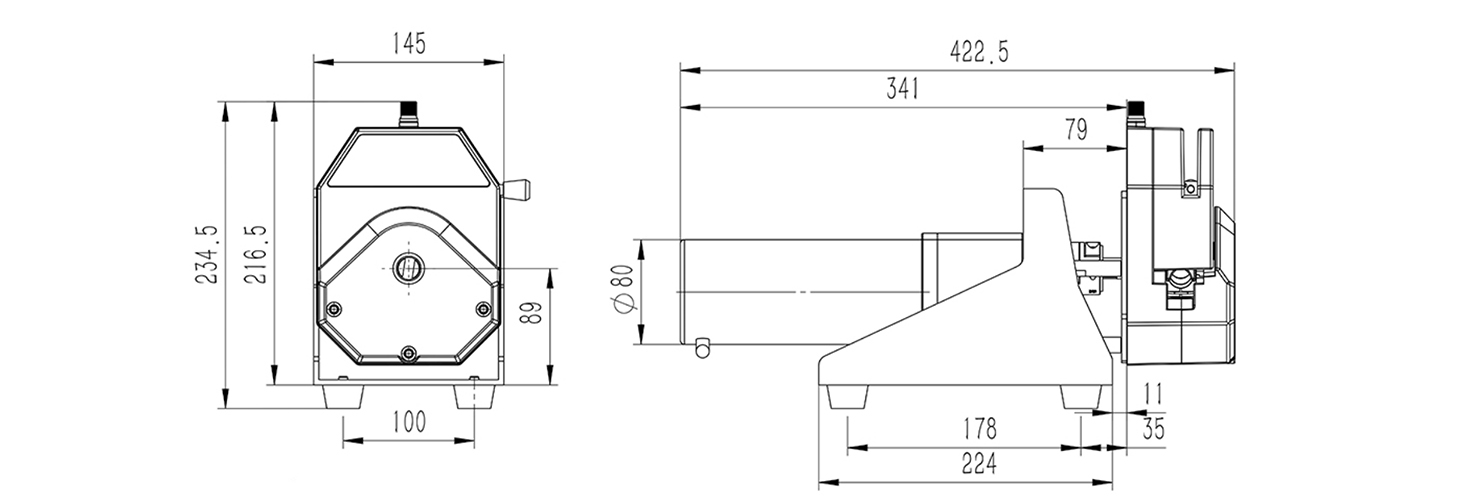

Dimension（Unit：mm）
