Exquisite appearance, fixed tube space and stable running.
Stack several pump heads, and support various equipments.
Technical Parameter
Model No.
OEM-JT03
Flow rate
7.2-750 mL/min
Motor type
AC speed adjustable motor
Voltage
AC220V (standard), DC110V (optional)
Speed
35-350rpm
Speed error
≤±10%
Working environment
0-40℃, 80% RH
Flow Range
Model No.
Housing Material
Rollers Material
Tubing
Speed range(rpm)
Flow rate(mL/min)
Weight(kg)
Tubing size
ID×Wall thickness(mm)
SN15-14
PC
304 Stainless steel
14#
1.6×1.6
35-350
8.4-84
0.20
SN15-16
16#
3.1×1.6
30.8-308
SN25
24#
6.4×2.4
87.5-875
Installation Steps
Application Cases

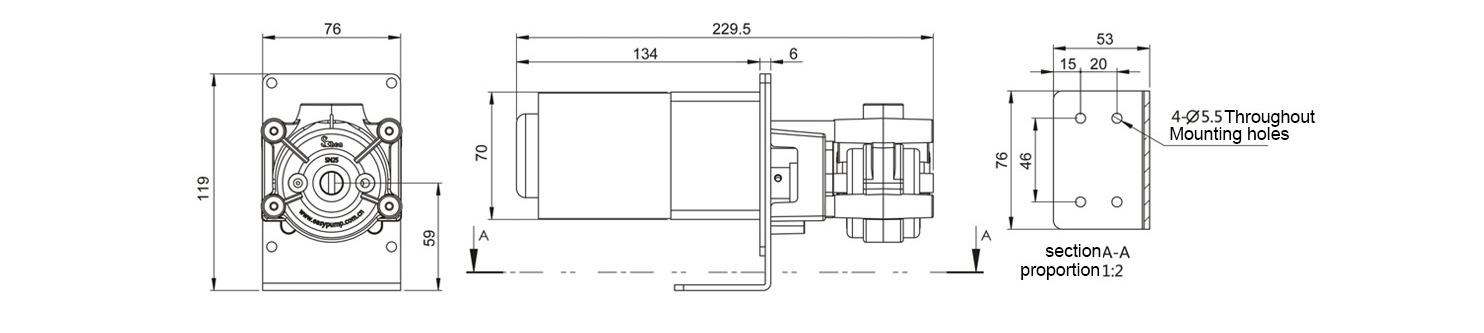

Dimension（Unit：mm）
