ISPLab01-Pro Syringe Pump Series
- Product Introduction
- Technical Parameter
- Dimension
- Video Tutorials
Product Introduction
ISPLab01-Pro syringe pump with infusion/withdrawal mode, durable and available for various environments with stainless steel housing. Easy and intuitive operation with 4.3" full color touch screen. Multiple external controls like RS232/485 (Modbus) supported. Capable of handling more types of liquids with stronger linear force. All materials and sizes of syringes supported, especially applicable for transferring micro liquids. (Non-medical use)
- Most Advanced Syringe Loading System:
-Special structure design to minimizing the impact on the properties of solution inside the syringe.
-Loading and replacement of syringe are super fast and convenient, can be operated with one hand.
-Unique adaptive structure, fitting various syringe barrel shapes, syringe protectable and accuracy guaranteed.
-Featured syringe plunger mounting design, secured syringe installation and stable operation.
-All materials, models, and sizes of syringe from 0.5μL-150mL adapted.
- Real Time Flow Rate Modification: Flow rate adjustable at any time without stopping, meeting the requirements of complex applications.
- 4.3-inch full color LCD touch screen, intuitive interface, real-time display of various technical data.
- Built-in Syringe Model List: Syringe model selectable or syringe inner diameter directly inputted.
- Three metering methods to choose from: liquid volume-flow rate, liquid volume-time, and flow rate-time. The volume can be displayed in real time and can be calibrated.
- Up to 45kgf linear force, more kinds of liquids handleable and a wider range of applications available.
- Blockage Protection: During operation, if propulsion mechanism blocked, pump will stop operating and sound alarm signal.
- Power Off Memory: The pump remains running or stop according to the setting parameters when power returns after an interruption.
Technical Parameter
| Working Mode | Infusion, Withdrawal, Infusion-Withdrawal, Withdrawal-Infusion, Continuous |
| Channel Number | Single |
| Applicable Syringe | 0.5μL-150mL of all materials |
| Syringe Selection | Built in syringe model and customizable syringe inner diameter |
| Linear Speed Range | 1μm/min-132mm/min(Flow rate=linear speed * internal cross-sectional area of syringe) |
| Linear Speed Resolution | 1μm/min |
| Linear Force | 12-45kgf, adjustable |
| Max. Stroke | 140mm |
| Stroke Resolution | 0.078μm/μstep |
| Accuracy | Error≤±0.3%(Stroke≥30% of Max. stroke) |
| Reverse Distance | 0.01-10mm |
| Common Modes | Up to 60 commonly used modes can be saved |
| Display | 4.3" full color LCD screen |
| Control | Touch screen and keypads |
| Power Off Memory | The pump remains running or stops according to the setting parameters when power returns after an interruption. |
| Output | OC gate signal output, indicating operating status and direction |
| External Control | Start/stop signal, fast extraction and infusion signal, active switch signal 5V-24V Start/stop signal, passive switch signal, e.g. foot pedal switch |
| Communication Interface | RS232/RS485 (Modbus, RTU) |
| Power Supply | AC 90-264V/65W(50-60Hz) |
| Condition Temperature | 0-40℃ |
| Relative Humidity | <80% |
| Dimension | 296*226*160 |
| Weight | 4.85kg |

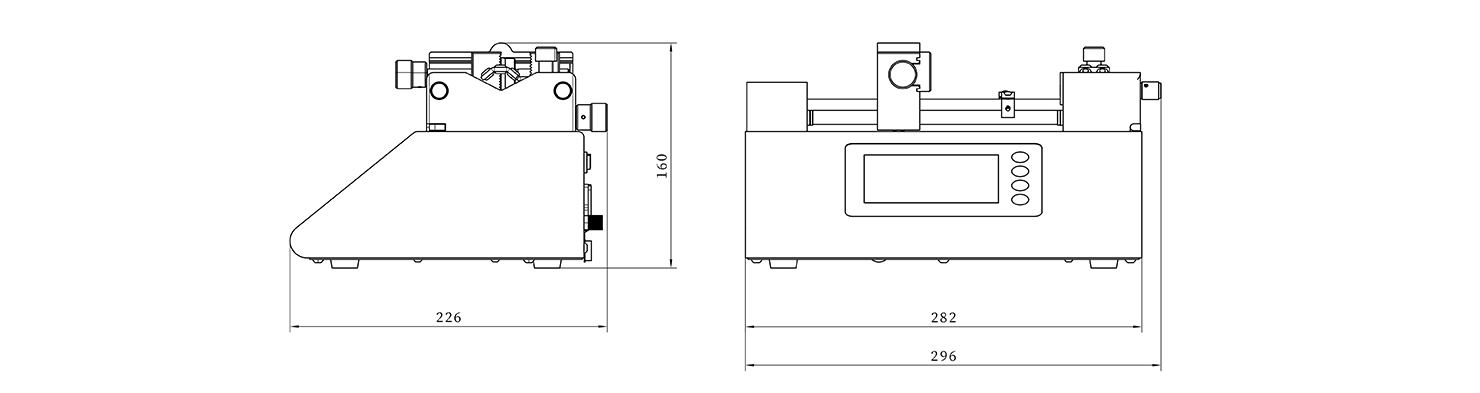

Dimension（Unit：mm）
