Name: HP265/UT35 IP66/IP67/IP68 Industrial Peristaltic Pump
Brand: 申辰流体
SKU: HP265/UT35

HP265/UT35

5-Year Warranty

0.1-265 rpm

2.252-18000mL/min

Optional pump head：

UT35

Online consultation

Download

Product Introduction
Technical Parameter
Pump Head Parameter
OSD
Qualification Certificate

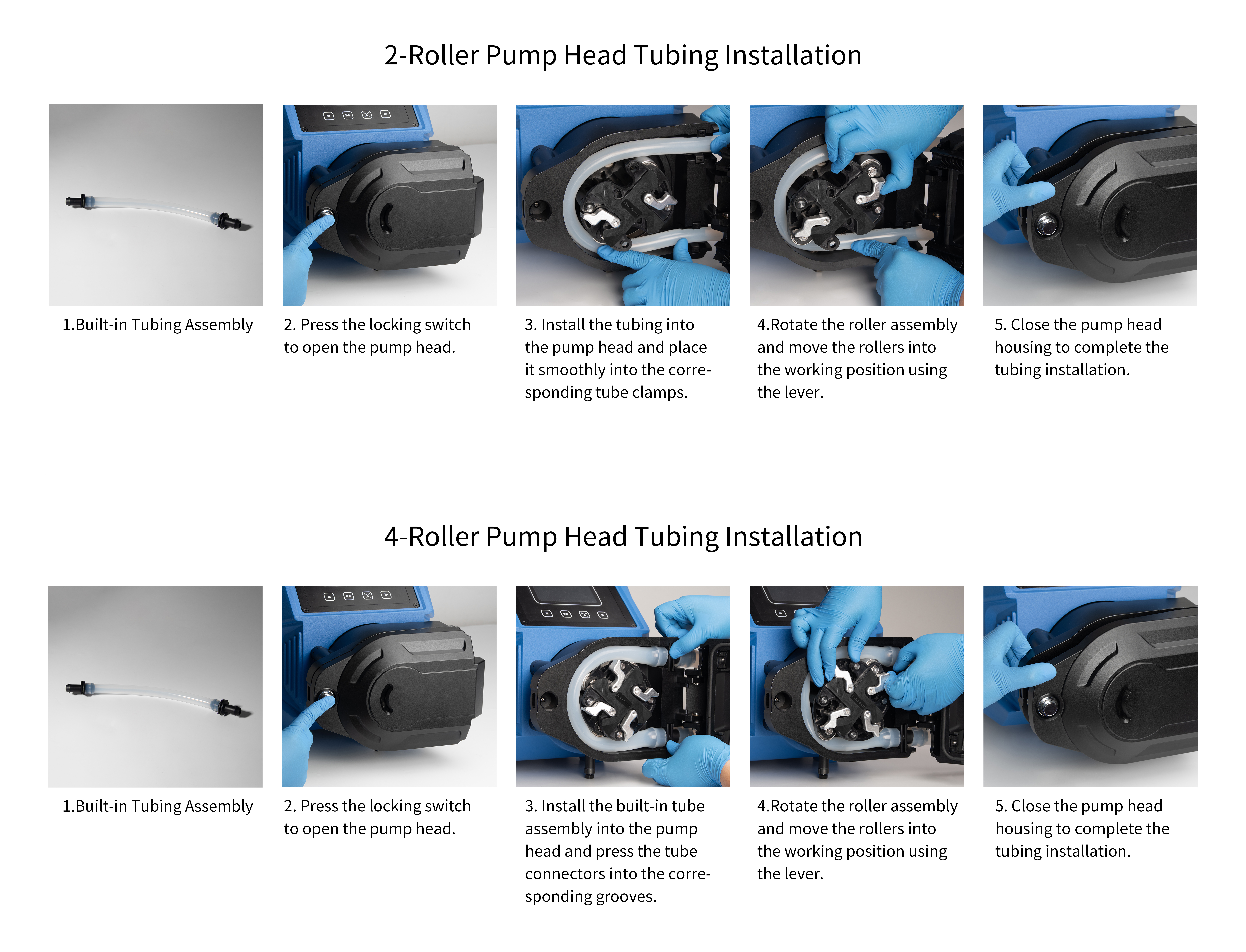

Tubing Installation Procedure
Dimension
Video Tutorials

Product Introduction

IP66/IP67/IP68 protection rating, specially designed for industrial environments.
Intelligent control system.
Passed EMC test with excellent anti-electromagnetic interference performance.
The automatic pressure control device ensures internal and external pressure balance.
The external control interface provides circuit isolation for both internal and external circuits.
High-precision servo motor.
Casting shell with excellent heat dissipation performance.

Technical Parameter

Standard	IEC 60529:2013, Q/BSC01-2019
Housing material	Aluminum alloy
Speed range	0.1-265 rpm
Speed resolution	0.01 rpm

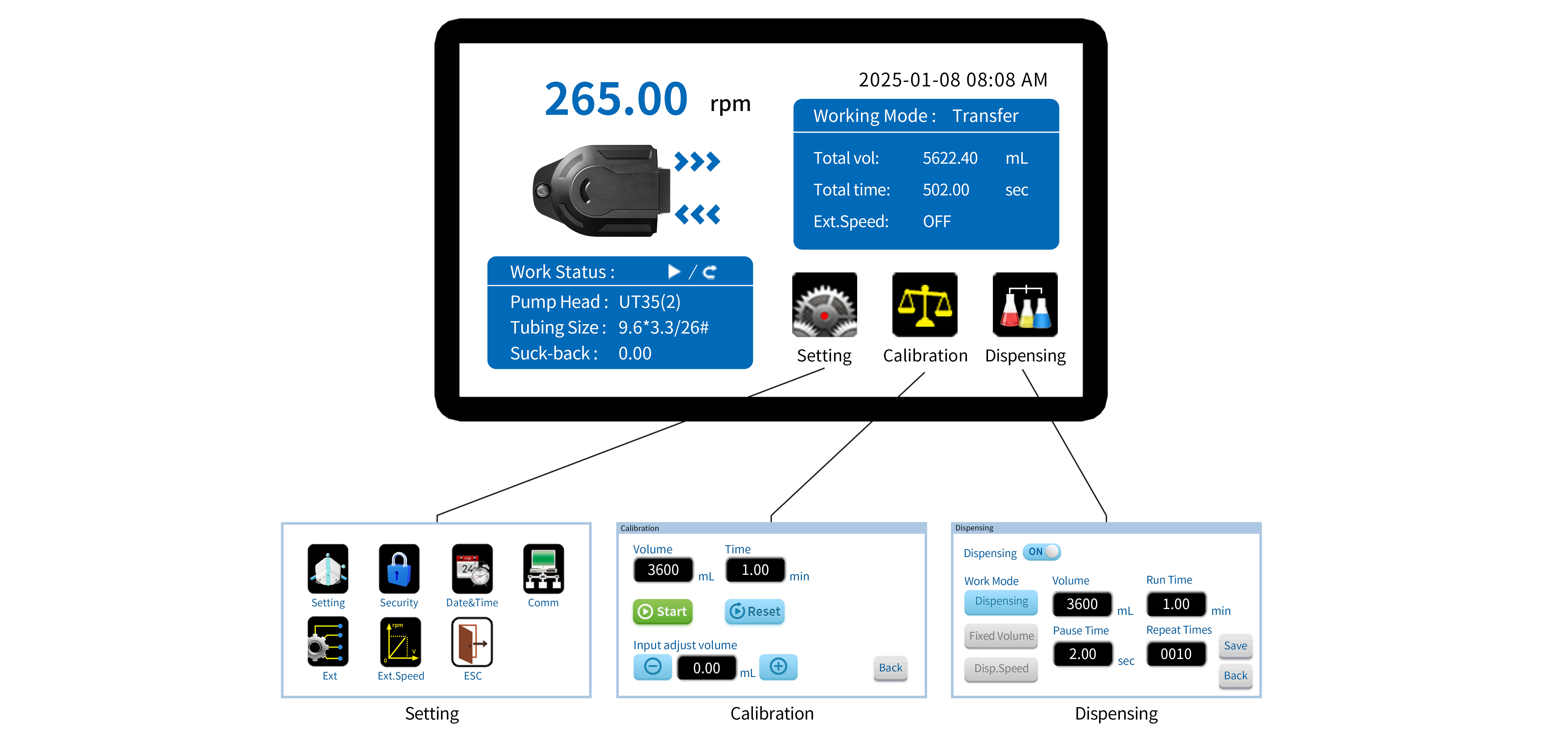

Display	4.3-inch industrial-grade true color LCD screen
Control method	Touch screen, mechanical buttons, external signal, communication
Working mode	Flow rate mode, dispensing mode
Flow rate mode	Continuous transferring according to the set flow rate or motor speed
Dispensing mode	Fixed time and volume dispensing: Set the dispensing volume, dispensing time, repeat number and pause time; Fixed volume dispensing: Set the dispensing volume, flow rate, repeat number and pause time; Speed/time dispensing: Set the motor speed (rpm), dispensing time, repeat number and pause time
Dispensing volume	0.1 mL - 9999 L
Dispensing time	0.1 s - 9999 h
Pause time	0.5 s - 9999 s
Repeat number	1-9999 times, 0 represents unlimited
Calibration function	Input actual volume and calibrate automatically
Back suction angle	0-360°
Communication	RS485, RS232
Communication protocol	Modbus protocol (RTU mode)
External control speed signal	0-5 V, 0-10 V, 4-20 mA (optional)
External control signal input	Active switch signal (5-24 V) controls start/stop, direction and full speed; Passive switch signal controls start/stop
Signal output	Open collector output working status
Lock screen function	Prevent accidental touches
Password protection function	Prevent misoperation
Drive dimension	474mm285mm335mm (L×W×H)
Power supply	AC110-220V±10%,50Hz/60Hz
Rated power	300 W
Relative humidity	<100%
Condition temperature	0-40 °C
IP rating	IP66/IP67/IP68
Drive weight	26kg

Pump Head Parameter

Pump Head	Tubing		mL/r	Speed:0.1-265mL Flow Rate(mL/min)	Tubing Max.Pressure(Mpa)		Rollers number	Weight(kg)
	Size	ID×Wall Thickness(mm)			Intermittent	Continuous
UT35(4)	12x4	12x4	34.34	3.434-9100	0.12	0.1	4 rollers	4.65
	17x4	17x4	55.85	5.585-14800	0.11	0.1

Pump Head	Tubing		mL/r	Speed:0.1-265mL Flow Rate(mL/min)	Tubing Max.Pressure(Mpa)		Rollers number	Weight(kg)
Pump Head	Size	ID×Wall Thickness(mm)	mL/r	Speed:0.1-265mL Flow Rate(mL/min)	Intermittent	Continuous	Rollers number	Weight(kg)
UT35(2)	26#	6.4x3.3	22.52	2.252-5970	0.15	0.12	2 rollers	3.99
	73#	9.6x3.3	24.15	2.415-6400	0.16	0.12
	82#	12.7x3.3	42.26	4.226-11200	0.15	0.1
	15.9x3.3	15.9x3.3	62.75	6.275-16630	0.15	0.12
	12x4	12x4	41.5	4.150-11000	0.15	0.12
	17x4	17x4	67.92	6.792-18000	0.13	0.12
