IF3II
3-Year Warranty
- Speed range：0.1-350 rpm
- Flow range：2.25-12740mL/min
Optional pump head：
DY35
- Product Introduction
- Technical Parameter
- PRODUCT INTRODUCTION
- OSD
- Dimension
Product Introduction
- Closed-loop stepper motor drive, high precision, low pulsation dispensing peristaltic pump.The low pulsation pump head is special for high precision fling.
- Through the phase differencebetween the two sets of rollers, make the fluid peaks and valleys complementary, then reduce thepulsation of the fluid.
- Adaptive pressure tubing space, extend the tubing lifetime effectively.
- Achieving high precision dispensing of micro flow rate.
- New flow rate mode, can be used for continuous transferring.
- Can communicate with balance, closed-loop control.
Technical Parameter
| Flow rate | 2.25-12740mL/min |
| Speed range | 0.1-350rpm |
| Speed resolution | 0.01rpm |
| Dispensing volume range | 0.01-9999.99mL |
| Dispensing volume resolution | 0.01mL |
| Dispensing time | 0.1-9999.99s |
| Pause time | 0.1-9999.99s |
| Time resolution | 0.01s |
| Copy numbers | 1-9999 times, setting "0" means unlimited |
| Back suction angle | 0-360° |
| Dispensing accuracy | <±0.5% |
| Motor type | Servo motor |
| Display | 4.3-inch industrial-grade true color display |
| Control method | Touch screen and mechanical keypad |
| Keypad lifetime | 300,000 times |
| Start/stop, direction signal | Passive switch signal (e.g. foot pedal switch); Active switch signal: 5-24V universal |
| Output interface | Motor working status output (open-collector output) |
| Communication interface | RS232, RS485 support Modbus protocol (RTU mode) |
| Power supply | 220V±10% 50Hz/60Hz (standard); 110V±10% 50Hz/60Hz (optional) |
| Tube pressure | 0.8-1.0mm wall thickness: 0.1MPa; 1.6-2.4mm wall thickness: 0.1-0.27MPa |
| Drive dimension | 301*270*334mm (L×W×H) |
| Drive weight | 15.7kg |
| Power consumption | <80W |
| Environment temperature | 0-40℃ |
| Relative humidity | <80% |
| IP rating | IP31 |
PRODUCT INTRODUCTION
| Drive | Motor Type | Pump Head | Tubing Size | Speed range(rpm) | Flow rate(mL/min) |
| IF3 | Closed loop stepper motor | DY35 | 73# | 0.1-350 | 2.25-7875 |
| 82# | 3.64-12740 |

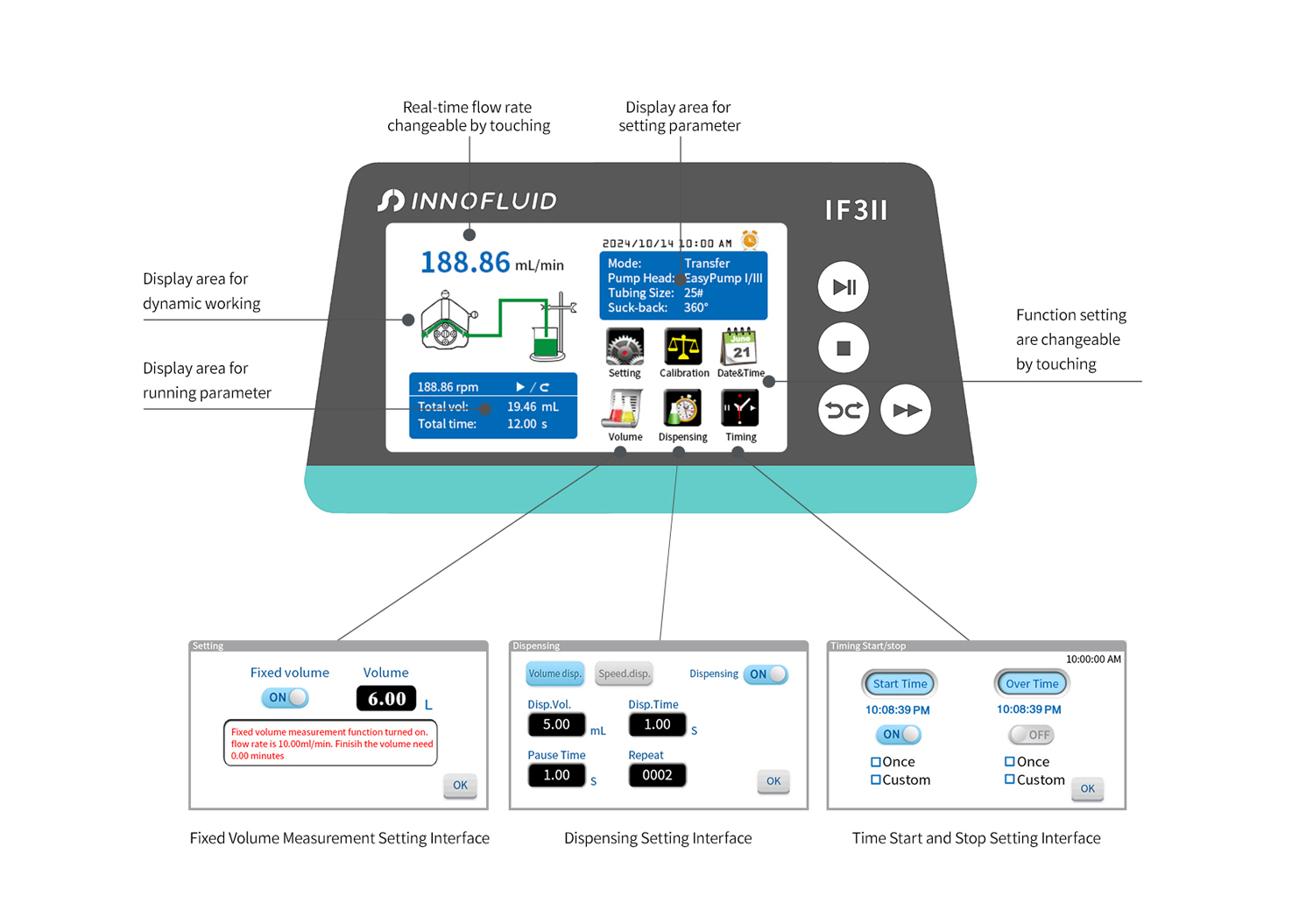

OSD

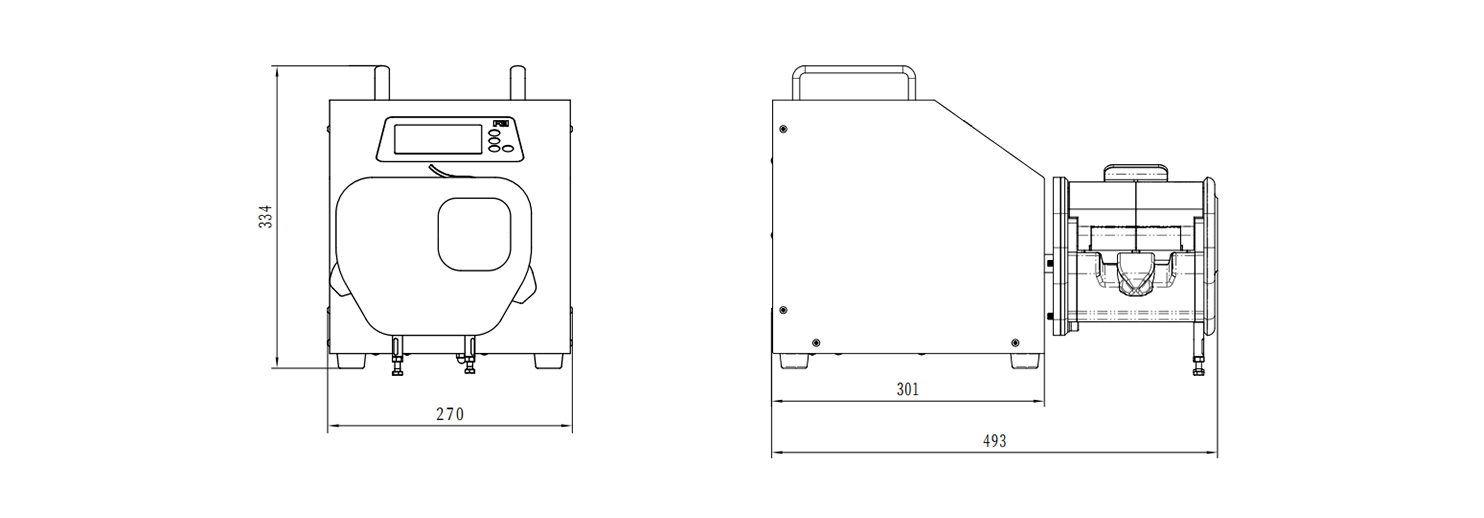

Dimension（Unit：mm）
