The tube clamp linkage mechanism makes it more convenient to install the tube.
The rubbing wheel adjustment mechanism can easily fix different size tube.
The lever assist mechanism makes the operation more easy.
The tube pressure gap fine-tuning mechanism can adjust the pressure, extend the life of the tube and improve the dispensing accuracy.
Two tubes can be installed at the same time to realize single pump head with two channels.
Technical Parameter
Speed range
0.1-600rpm
Flow rate
0.0053-3100mL/min
Speed control
External input pulse frequency speed control
Subdivision settings
1/16 (default), adjustable via DIP switches
Input signal
Supports common cathode, common anode, and differential wiring configurations
Motor type
Integrated closed-loop stepper motor
Logic input voltage
3.3V-5V
Output signal
Open collector output
Power supply
DC24V-DC36V (Recommend DC36V), ≥100W
Working ambient
0-40℃,＜80%RH
Product lctroduction
Pump Head
Tubing
lDxWall thickness(mm)
mL/r
Flow Rate(mL/min) (0.1-600rpm)
Tubing Max.Pressure(Mpa)
Weight(kg)
Intermittent
Continuous
Single Channel EasyPump I/III
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
0.6
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
25#
4.8x1.6
1.967
0.1967-1180
0.24
0.14
17#
6.4x1.6
3.333
0.3333-2000
0.14
0.10
18#
7.9x1.6
4.3
0.43-2580
0.10
0.07
Single Channel EasyPump II/IV
15#
4.8x2.4
1.8
0.18-1080
0.27
0.17
24#
6.4x2.4
2.733
0.2733-1640
35#
7.9x2.4
3.833
0.3833-2300
0.24
0.14
36#
9.6x2.4
5.167
0.5167-3100
Dual Channel EasyPump V/VI
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
25#
4.8x1.6
1.967
0.1967-1180
0.24
0.14
Tubing Installation Procedure
Invention Patent

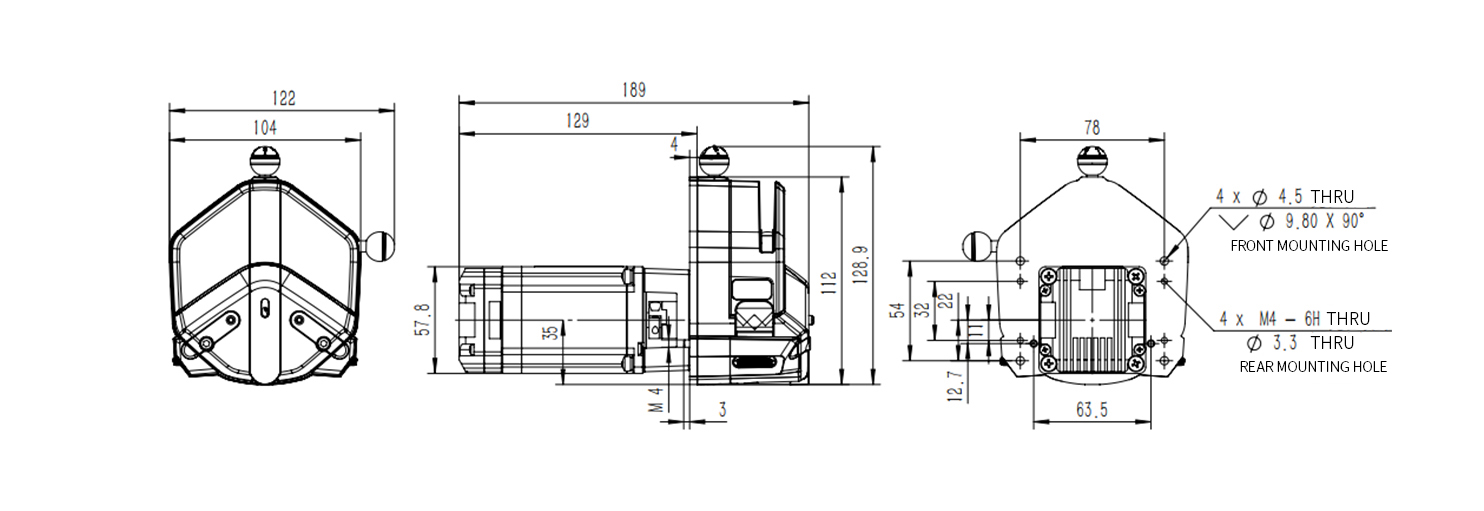

Dimension（Unit：mm）
