Upgraded Design: Inspired by Apple's iconic aesthetic, the design symbolizes health and safety, combining excellent performance with a compact and light weight structure.
Superior Performance: Designed for low pulsation, high accuracy, and high flow rates.
Universal Tube Clamp Design: The versatile tube clamp accommodates multiple tubing sizes without changing tubing clamps — saving time and reducing the risk of losing clamps.
Durable & Robust Construction: Built with a 304 stainless steel roller assembly and a 6061 aluminum alloy pump housing, featuring a sand-blasted and oxidized surface finish.
User-Friendly Operation: Equipped with an ergonomically optimized large lever handle, enabling quick and easy installation.
Extended Tube Life: Features an adjustable elastic upper block that allows customized pressure settings based on different tubing types, helping to prolong tubing service life.
Open Head Stop Running Function: The pump head features an automatic stop function when the cover is opened.
Flow Range
Pump Head
Housing Material
Tubing
mL/r
Speed （rpm）
Flow Rate （mL/min)
Weight(kg)
Size
IDxWall Thickness(mm)
DY35
Aluminum alloy
73#
9.6x3.3
23.96
0.1-350rpm
2.40-8756
9.45
82#
12.7x3.3
39.3
3.93-14147
DY35 Filling Volume Reference Parameter
Pump Head
Tubing
Filling Volume(mL)
Filling Time(s)
Accuracy(±%)
Output(pcs/min)
Motor Speed(rpm)
DY35
73#
300
3
0.5
15
245.1
82#
500
3
0.5
15
269.2

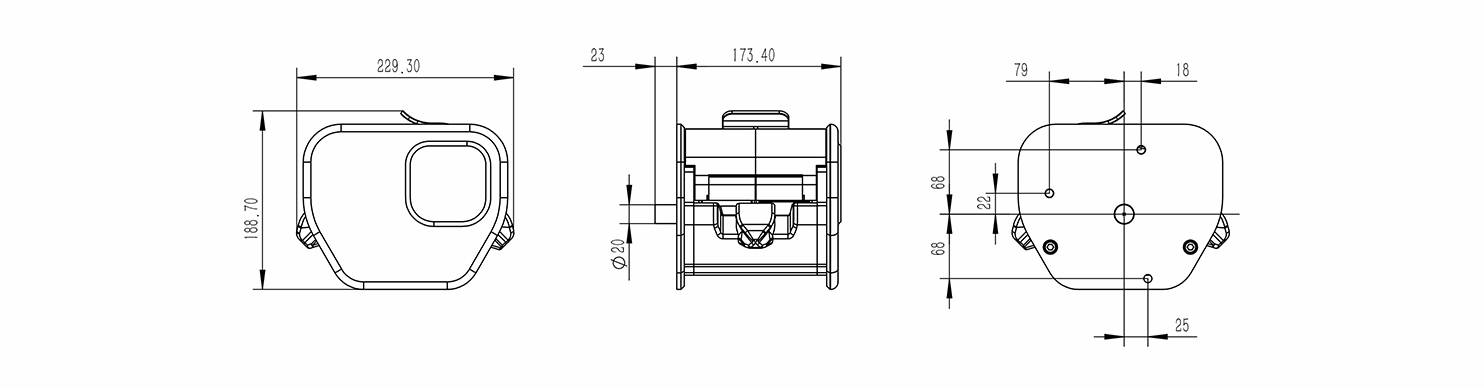

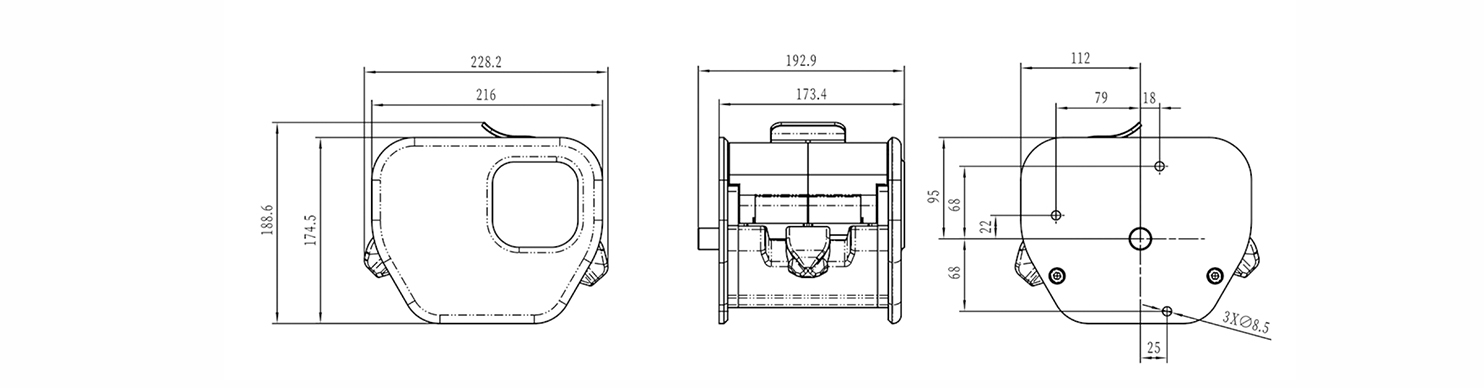

Dimension（Unit：mm）
