Stepper motor
    Speed range：0.1-300rpm
    Flow range：0.0024-190mL/min
Optional pump head：
MiniPump
Online consultation
Download

Product Introduction

  • Compact design suitable for supporting a variety of instruments.
  • Single and dual channels for option.
  • Accepts many different tubes.

Technical Parameter

Speed range ≤300 rpm
Max flow rate 190mL/min
Motor speed 0.1-300rpm
Motor type 42 stepper motor
Motor phase number 2
Motor step angle 1.8
Motor phase voltage 2.2V
Motor phase current 1.0A

Product lctroduction

Motor Speed(rpm)
 Dual Channel Flow Rate (mL/min) and Tubing (1 mm wall thickness)
ID 1mm ID 2mm ID 2.5mm ID 3mm
5 0.25 0.90 1.28 1.78
10 0.49 1.84 2.59 3.52
15 0.74 2.76 3.85 5.30
25 1.25 4.57 6.43 8.80
40 2.00 7.31 10.25 14.02
50 2.52 9.14 12.78 17.47
75 3.76 13.64 19.04 26.12
100 5.03 18.17 25.42 35.34
200 10.12 36.45 51.27 71.44
250 12.63 45.75 64.34 88.35
300 15.01 54.63 76.84 108.39

Motor Speed(rpm) Single Channel Flow Rate (mL/min) and Tubing (1 mm wall thickness)
13# ID 0.8mm 14#ID 1.6mm 19#ID2.4mm 16# ID 3.1mm 25#ID 4.8mm
5 0.12 0.56 1.26 1.97 3.26
10 0.26 1.15 2.53 3.90 6.41
15 0.39 1.74 3.80 5.80 9.52
25 0.66 2.88 6.31 9.59 15.74
40 1.08 4.59 10.11 15.29 25.15
50 1.34 5.69 12.62 18.96 31.14
75 2.00 8.54 18.93 28.36 46.55
100 2.73 11.37 25.27 37.66 61.98
200 5.46 22.76 50.82 76.02 124.14
250 6.81 28.40 65.39 95.08 153.63
300 8.28 33.88 77.23 114.31 190.00

Tubing Installation Procedure

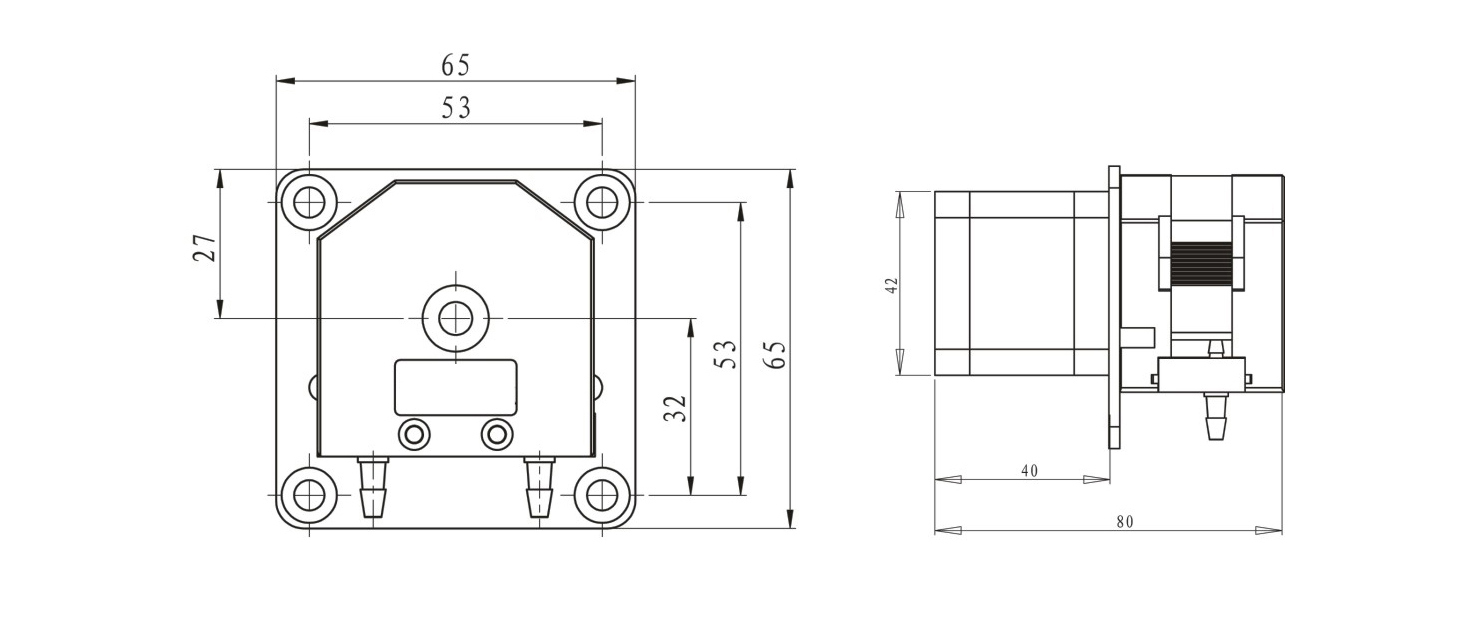

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
