Stepper motor
    Speed range：0.1-150rpm
    Flow range：0.004-149.23mL/min
Optional pump head：
MicroPump
Online consultation
Download

Product Introduction

  • Beautiful appearance.
  • Compact size.
  • Rich color.
  • OEM ideal choice.

Product lctroduction

Tubing No.
B04
B06
B10
B22
Tubing lD.( wall thickness 1mm)
1.0*1.1
2.0*1.0
3.0*1.0
4.0*1.0
Tubing material
PhaMed BPT
PhaMed BPT
PhaMed BPT
PhaMed BPT
Flow rate(mL/min)
35Stepper motor(350rpm)STB
14.88
50.05
110.27
--
42Stepper motor(350rpm)STA
14.88
50.05
110.27
149.23

Tubing Installation Procedure

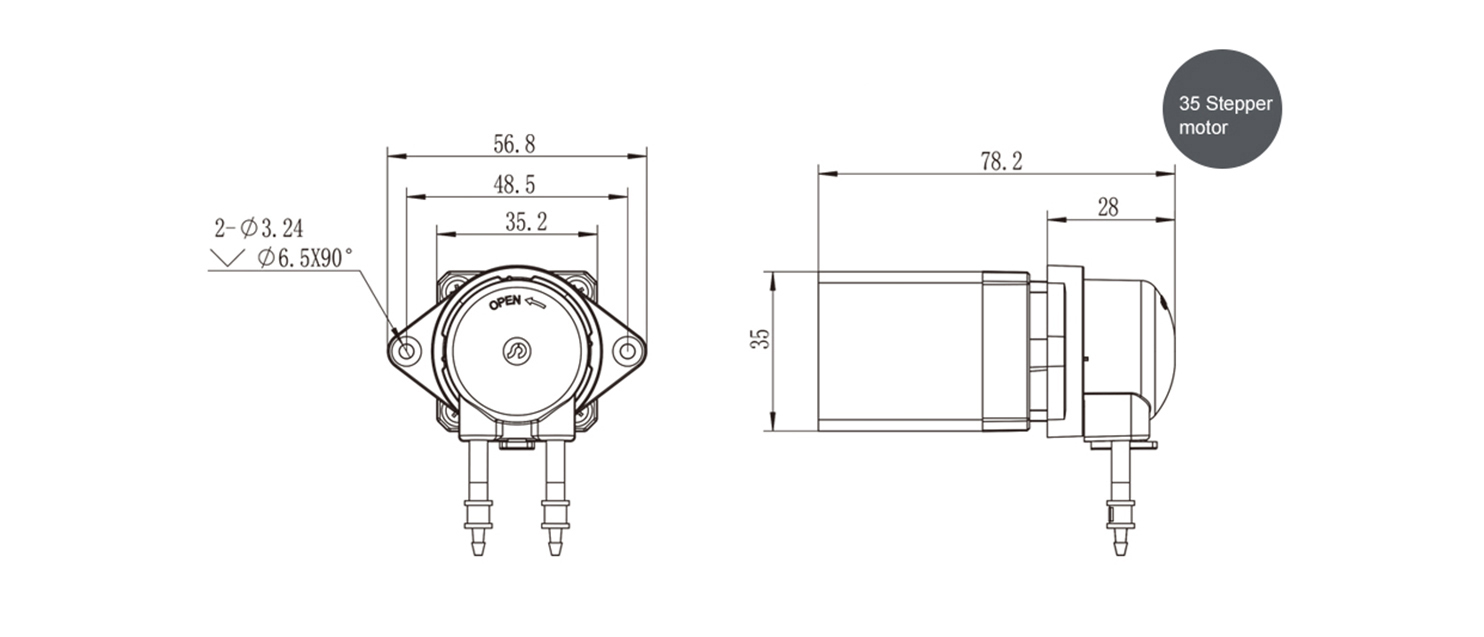

Dimension（Unit：mm）
