UC15
    Speed range：0.1-350rpm
    Flow range：0.1702~3281mL/min
Optional pump head：
UC15
Online consultation
Download

Product Introduction

  • Simple appearance, compact structure, wide flow rate range.
  • Elastic roller assembly, adaptive tubing clamp, adjustable pressure extend the tubing lifetime.
  • Transparent protecting cover, can observe working situation anytime.
  • Manual lever cooperate with installing tubing, solved the traditional spring pump head install tubing inconvenient problem.
  • When open the protecting cover, it output " stop signal', ensure operation safety.

Technical Parameter

Speed range 0.1~350rpm
Speed resolution 0.1 rpm
Motor type Stepper motor
Output signal Open cover signal( Active signal DC 12V)

Product lctroduction

Model
Housing material
Tubing
Speed range
(rpm)
Flow rate
(mL/min)
Weight(Kg)
Base
Protecting cover
Size
IDxwall thickness(mm)
UC15
PSF
PC
16#
3.1x1.6
0.1-350
0.1702-596
1.42
25#
4.8x1.6
0.3574-1251
17#
6.4x1.6
0.6245-2186
18#
7.9x1.6
0.9374-3281

Tubing Installation Procedure

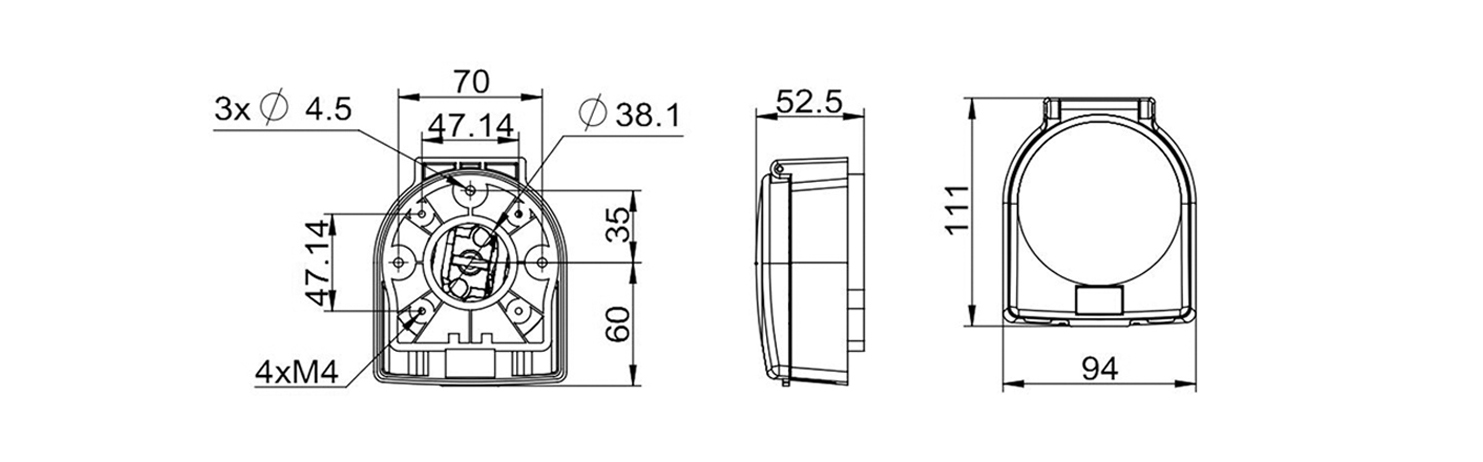

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
