OEM-HYB003/004/005
- Speed range：0.1-300rpm
- Flow range：0.0033-365.69mL/min
Optional pump head：
HandyPump
- Product Introduction
- Technical Parameter
- Product lctroduction
- Tubing Installation Procedure
- Dimension
Product Introduction
- Flow rate range: 0.0033-365.69mL/min.
- Front knob to open the pump head, save space.
- Automatic tubing retention makes tube loading easy and quick.
- Single and dual-channel head available.
- 5 different size tubing to meet different flow rate requirements.
Technical Parameter
| Model No. | OEM-HYB003/004/005 |
| Speed range | 0.1-300rpm |
| Flow rate range | 0.0033-365.69mL/min |
| Motor type | 42 stepper motor |
| Outer control | Passive switch signal control start/stop and direction |
| Speed control | OEM-HYB003: 4-20mA Analog signal OEM-HYB004: 0-5V Analog signal OEM-HYB005: 0-10V Analog signal |
| Power supply | DC 24V,≥36W |
| Working environment | 0-40°C,80%RH |
| Model No. | OEM-HYB018 |
| Speed range | 0.1-300rpm |
| Flow rate range | 0.0033-365.69mL/min |
| Speed control | External input pulse frequency speed control |
| Subdivision settings | 1/16(recommend),1,1/2,1/4,1/8,1/32,1/64,1/128 |
| Motor type | 42 stepper motor |
| Power supply | DC24V, ≥36W |
| Working environment | 0-40°C, 80%RH |
| Model No. | OEM-HYB009 |
| Speed range | 0.1-300rpm |
| Flow rate range | 0.0033-365.69mL/min |
| Speed control | Preset speed or serial port control |
| Motor type | 42 stepper motor |
| Power supply | DC24V, ≥36W |
| Working environment | 0-40°C, 80%RH |
| Model No. | OEM-HYB010 |
| Speed range | 0.1-300rpm |
| Flow rate range | 0.0033-365.69mL/min |
| Speed control | Adjustspeed by internal potentiometer |
| Motor type | 42 stepper motor |
| Power supply | DC24V, ≥36W |
| Working environment | 0-40°C, 80%RH |
Product lctroduction
|
Pump Head
|
Channel number | Tubing | IDxWall(mm) | mL/r (3 rollers) |
mL/r (6 rollers) |
Speed(rpm) |
Flow Rate
(mL/min) (3 rollers)
|
Flow Rate (mL/min) (6 rollers) |
Weight(kg) |
| HandyPump01 | Single channel |
13# | 0.8x1.6 | 0.033 | 0.031 | 0.1-300 | 0.0033-10.03 | 0.0031-9.36 | 0.224 (3 rollers) 0.302 (6 rollers) |
| 14# | 1.6x1.6 | 0.187 | 0.126 | 0.0187-56.09 | 0.0126-37.68 | ||||
| 19# | 2.4x1.6 | 0.371 | 0.215 | 0.0371-111.17 | 0.0215-64.51 | ||||
| 16# | 3.2x1.6 | 0.636 | 0.345 | 0.0636-190.76 | 0.0345-103.51 | ||||
| 25# | 4.8x1.6 | 1.219 | 0.636 | 0.1219-365.69 | 0.0636-190.81 | ||||
| HandyPump02 | Dual channel |
13# | 0.8x1.6 | 0.033 | - | 0.1-300 | 0.0033-10.03 | - | 0.224 (3 rollers) |
| 14# | 1.6x1.6 | 0.187 | - | 0.0187-56.09 | - | ||||
| 19# | 2.4x1.6 | 0.371 | - | 0.0371-111.17 | - | ||||
| 16# | 3.2x1.6 | 0.636 | - | 0.0636-190.76 | - |
Tubing Installation Procedure

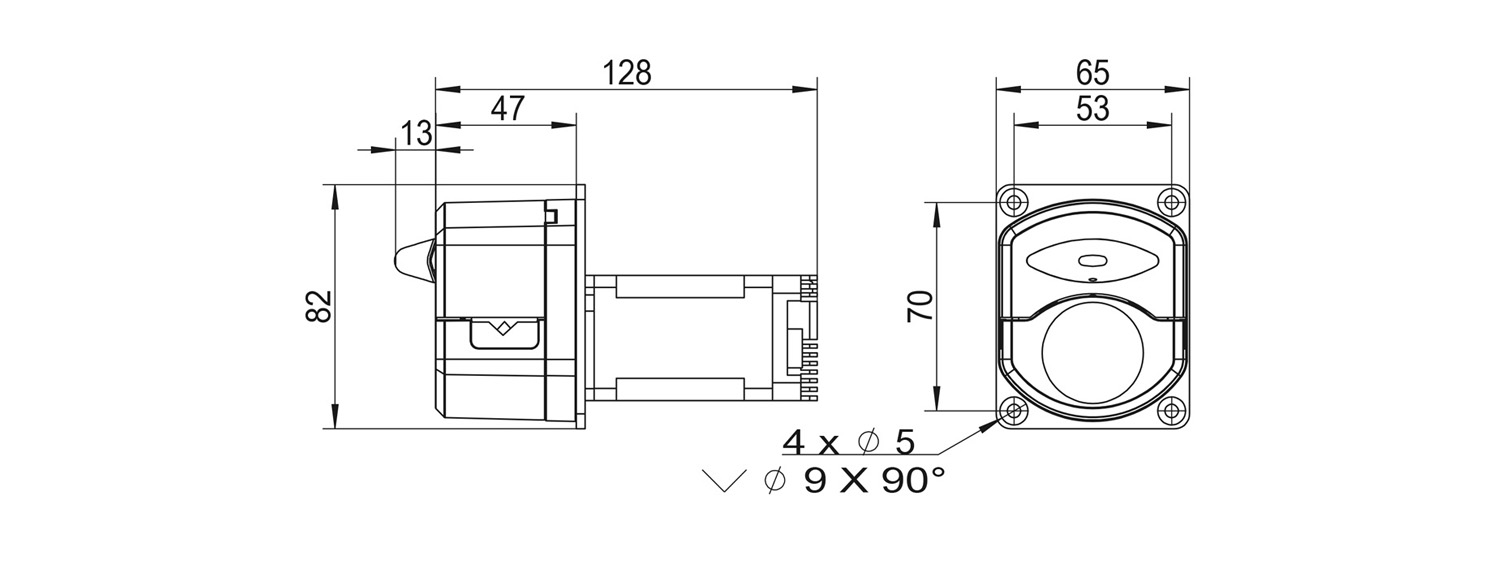

Dimension（Unit：mm）
