HandyPump
    Speed range：0.1-300rpm
    Flow range：0.0033-365.69mL/min
Optional pump head：
HandyPump
Online consultation
Download

Product Introduction

  • Flow rate range: 0.0033-365.69mL/min.
  • Front knob to open the pump head, save space.
  • Automatic tubing retention makes tube loading easy and quick.
  • Single and dual-channel head available.
  • 5 different size tubing to meet different flow rate requirements.

Product lctroduction

Pump Head
 Channel number Tubing IDxWall(mm) mL/r
(3 rollers)		 mL/r
(6 rollers)		 Speed(rpm)
Flow Rate
(mL/min)
(3 rollers)
 Flow Rate
(mL/min)
(6 rollers)		 Weight(kg)
HandyPump01 Single channel 13# 0.8x1.6 0.033 0.031 0.1-300 0.0033-10.03 0.0031-9.36 0.224
(3 rollers)

0.302
(6 rollers)
14# 1.6x1.6 0.187 0.126 0.0187-56.09 0.0126-37.68
19# 2.4x1.6 0.371 0.215 0.0371-111.17 0.0215-64.51
16# 3.2x1.6 0.636 0.345 0.0636-190.76 0.0345-103.51
25# 4.8x1.6 1.219 0.636 0.1219-365.69 0.0636-190.81
HandyPump02 Dual channel 13# 0.8x1.6 0.033 - 0.1-300 0.0033-10.03 - 0.224
(3 rollers)
14# 1.6x1.6 0.187 - 0.0187-56.09 -
19# 2.4x1.6 0.371 - 0.0371-111.17 -
16# 3.2x1.6 0.636 - 0.0636-190.76 -

Tubing Installation Procedure

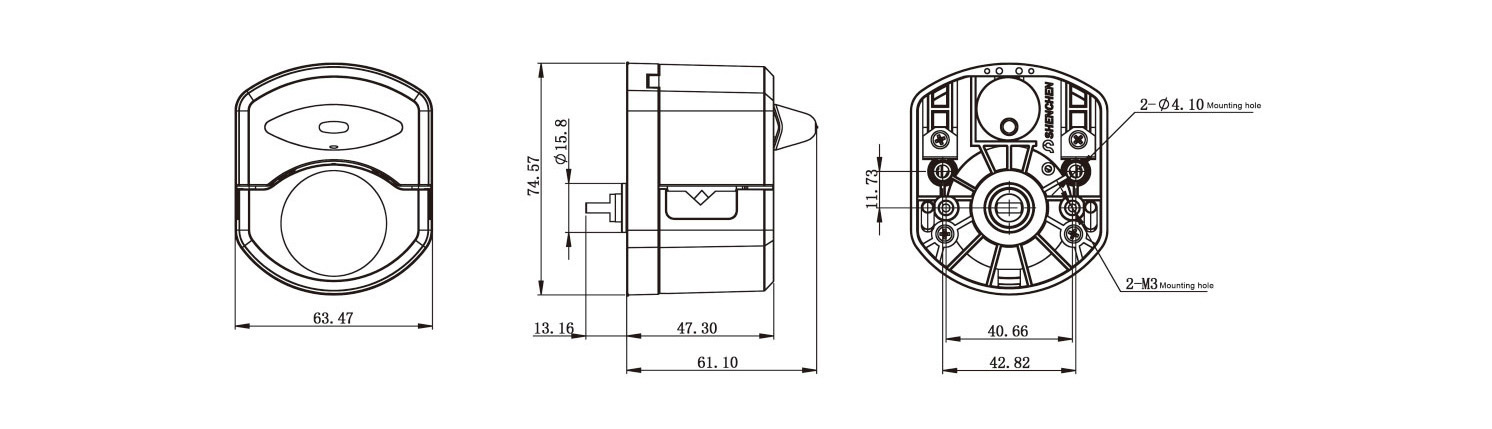

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
