OEM-KTJ001/002/003/004
    Speed range：15rpm, 30rpm, 60rpm, 100rpm
    Flow range：0.0033-93.3mL/min
Optional pump head：
KT15
Online consultation
Download

Product Introduction

  • The upper pressing block is opened by a turning method, and the operation is simple.
  • The elastic upper block can reduce tubing wear.
  • Quickly replace tubing with self-adaptive tube clamp.
  • Suitable for 5 different sizes of hoses to meet different flow requirements.
  • Exquisite appearance, small size.

Technical Parameter

Model No. OEM-KTJ001/002/003/004
Flow rate range 0.0033-55.98mL/min
Motor speed OEM-KTJ001:15rpm(±10%)
OEM-KTJ002:30rpm(±10%)
OEM-KTJ003: 60rpm(±10%)
Motor type AC synchronous motor
Motor life ≤1000hours
Suitable tubing Silicone and Pharmed tube
Roller number 4
Power supply AC220V/50Hz
Power consumption OEM-KTJ001/002:14W
OEM-KTJ003:20W
Condition temperature 0-40°C
Environment humidity ≤80%RH,No condensation
Working environment Keep away from heating equipment, avoid dust, oil mist corrosive gas and strong vibration places

Product lctroduction

Pump Head
Channel
Number
 Tubing ID xWallThickness(mm) mL/r (0.1-600rpm)
Flow Rate(mL/min)		 Weight(kg)
KT15 Single
channel		 13# 0.8x1.6 0.033 0.0033-19.97 0.096
14# 1.6x1.6 0.156 0.0156-93.42
19# 2.4x1.6 0.286 0.0286-171.6
16# 3.2x1.6 0.477 0.0477-286.32
25# 4.8x1.6 0.933 0.0933-560.04

Tubing Installation Procedure

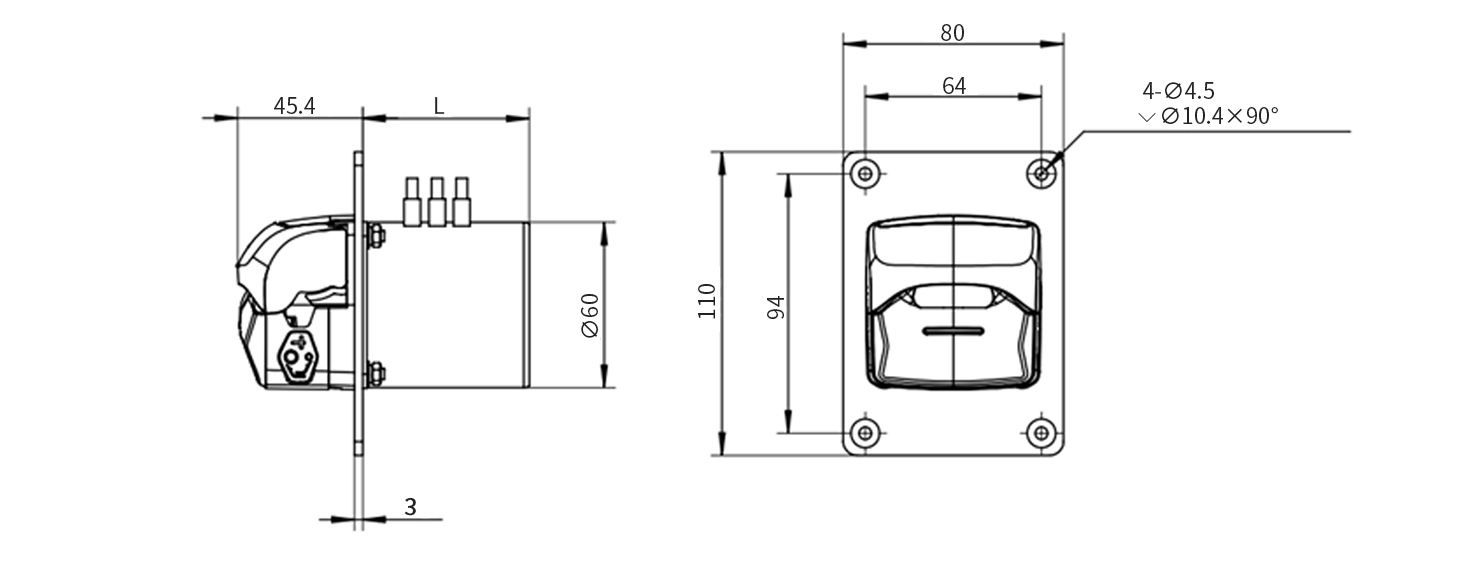

Dimension（Unit：mm）
