The upper pressing block is opened by a turning method, and the operation is simple.
The elastic upper block can reduce tubing wear.
Quickly replace tubing with self-adaptive tube clamp.
Suitable for 5 different sizes of hoses to meet different flow requirements.
Exquisite appearance, small size.
Technical Parameter
Model No.
OEM-KTB005
Speed range
0.1-400rpm
Flow rate range
0.0033-373.2mL/min
Speed mode
Preset speed or serial port control
Subdivision settings
1/16
Motor type
42 stepper motor
Power supply
DC24V
Working environment
0-40°C, 80%RH
Product lctroduction
Pump Head
Channel Number
Tubing
ID xWallThickness(mm)
mL/r
(0.1-400rpm) Flow Rate(mL/min)
Weight(kg)
KT15
Single channel
13#
0.8x1.6
0.033
0.0033-13.20
0.096
14#
1.6x1.6
0.156
0.0156-62.40
19#
2.4x1.6
0.286
0.0286-114.40
16#
3.2x1.6
0.477
0.0477-190.80
25#
4.8x1.6
0.933
0.0933-373.20
Tubing Installation Procedure

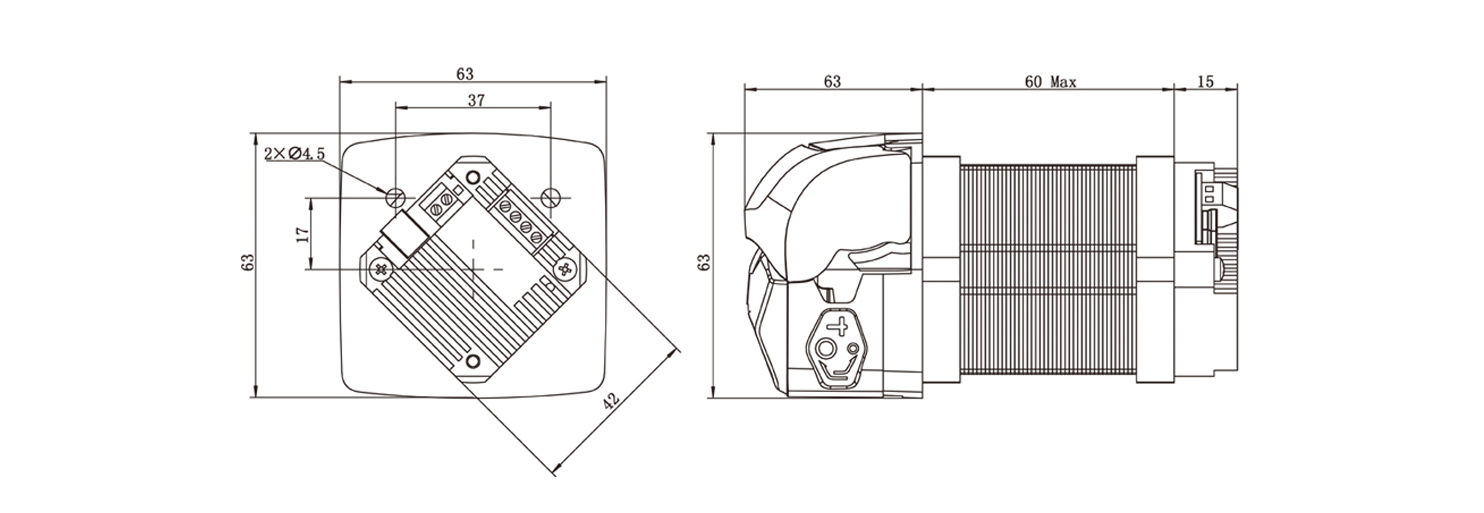

Dimension（Unit：mm）
