The upper pressing block is opened by a turning method, and the operation is simple.
The elastic upper block can reduce tubing wear.
Quickly replace tubing with self-adaptive tube clamp.
Suitable for 5 different sizes of hoses to meet different flow requirements.
Exquisite appearance, small size.
Technical Parameter
Model No.
OEM-KTB001
Speed range
0.1-400rpm
Flow rate
0.0033-373.2mL/min
Motor type
42 stepper motor
Motor phase number
2
Motor step angle
1.8°
Motor phase voltage
3.6V
Motor phase current
1.7A
Working temperature
0-40℃, <80%RH
Product lctroduction
Pump Head
Channel Number
Tubing
ID xWallThickness(mm)
mL/r
(0.1-600rpm) Flow Rate(mL/min)
Weight(kg)
KT15
Single channel
13#
0.8x1.6
0.033
0.0033-19.97
0.096
14#
1.6x1.6
0.156
0.0156-93.42
19#
2.4x1.6
0.286
0.0286-171.6
16#
3.2x1.6
0.477
0.0477-286.32
25#
4.8x1.6
0.933
0.0933-560.04
Tubing Installation Procedure

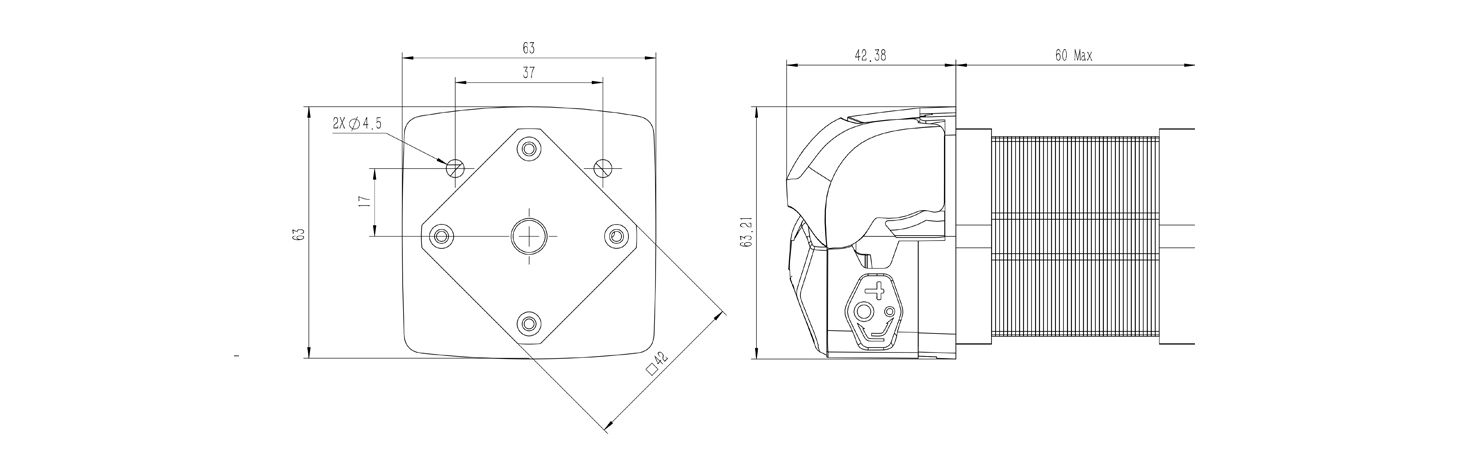

Dimension（Unit：mm）
