KT15
    Speed range：0.1-600rpm
    Flow range：0.0033-560.04mL/min
Optional pump head：
KT15
Online consultation
Download

Product Introduction

  • The upper pressing block is opened by a turning method, and the operation is simple.
  • The elastic upper block can reduce tubing wear.
  • Quickly replace tubing with self-adaptive tube clamp.
  • Suitable for 5 different sizes of hoses to meet different flow requirements.
  • Exquisite appearance, small size.

Product lctroduction

Pump Head
Channel
Number
 Tubing ID xWallThickness(mm) mL/r (0.1-600rpm)
Flow Rate(mL/min)		 Weight(kg)
KT15 Single
channel		 13# 0.8x1.6 0.033 0.0033-19.97 0.096
14# 1.6x1.6 0.156 0.0156-93.42
19# 2.4x1.6 0.286 0.0286-171.6
16# 3.2x1.6 0.477 0.0477-286.32
25# 4.8x1.6 0.933 0.0933-560.04

Tubing Installation Procedure

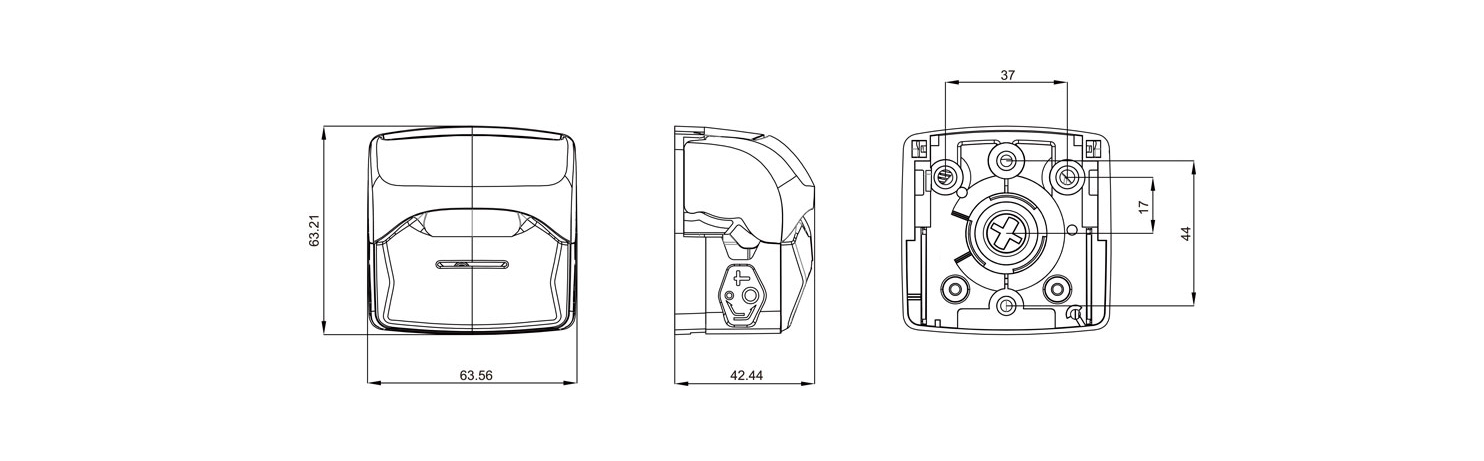

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
