The elastic positioning mechanism enables users remove and install cartridge with one hand.
The elastic pressure tube design effectively extends the life of the tube.
Stepless adiustment of the tube pressure gap, effectively improving the flow rate accuracy between channels.
The mute design of the roller assembly realizes low noise and high speed operation.
Exquisite appearance, compact structure, ideal for supporting instruments.
Technical Parameter
Speed range
0.1-150rpm
Flow rate
0.0002-65mL/min
Motor type
42 stepper motor
Motor phase number
2
Motor step angle
1.8°
Motor phase voltage
3.6V
Motor phase current
1.7A
Working temperature
0-40°C, <80%
Product lctroduction
Tubing
Speed
Flow rate of pump head with 10 rollers (mL/min)
Flow rate of pump head with 6 rollers (mL/min)
Tubing maximum pressure (Mpa)
Continuous
Intermittent
1x1
0.1-150rpm
0.0050~7.55
0.0062~9.36
0.1
0.1
2x1
0.0183~27.52
0.0220~33.06
2.4x0.8
0.0254~38.13
0.0319~47.81
3x1
0.0323~48.38
0.0434~65.17
0.13x0.86
0.0002~0.29
0.0002~0.31
0.19x0.86
0.0003~0.44
0.0003~0.46
0.25x0.86
0.0005~0.76
0.0005~0.80
0.51x0.86
0.0013~2.00
0.0014~2.05
0.89x0.86
0.0030~4.47
0.0031~4.65
1.14x0.86
0.0061~9.16
0.0065~9.74
1.42x0.86
0.0125~18.75
0.0142~21.28
2.06x0.86
0.0197~29.60
0.0234~35.17
2.79x0.86
0.0286~42.86
0.0372~55.77
Tubing Installation Procedure
Invention Patent

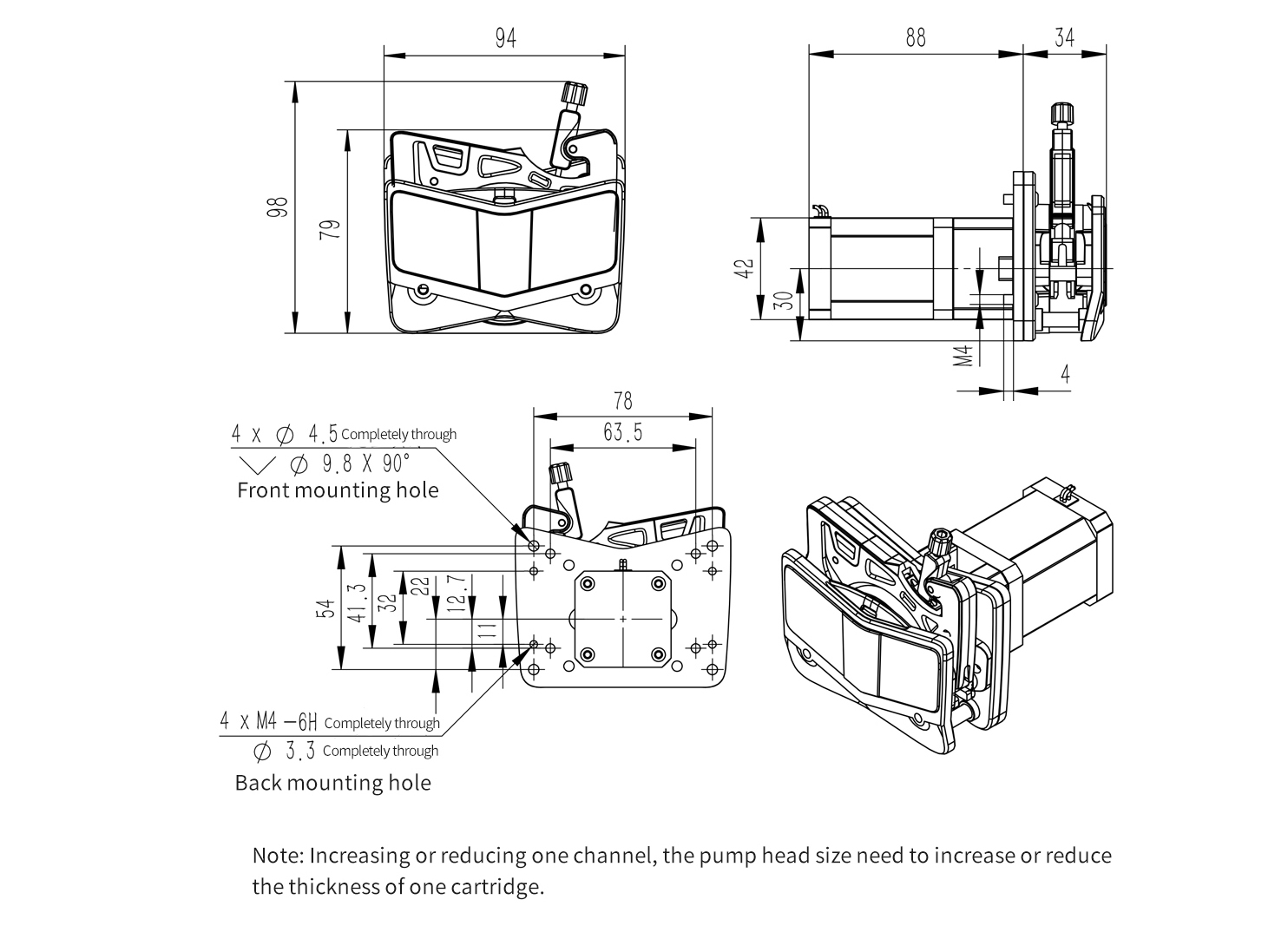

Dimension（Unit：mm）
