AMC
    Speed range：0.1-150rpm
    Flow range：0.0002-65.17mL/min
Optional pump head：
AMC
Online consultation
Download

Product Introduction

  • The elastic positioning mechanism enables users remove and install cartridge with one hand.
  • The elastic pressure tube design effectively extends the life of the tube.
  • Stepless adiustment of the tube pressure gap, effectively improving the flow rate accuracy between channels.
  • The mute design of the roller assembly realizes low noise and high speed operation.
  • Exquisite appearance, compact structure, ideal for supporting instruments.

Product lctroduction

Channel number 1 2 3 4 5 6 8 10 12
Rollers material 304 stainless steel material
Rollers number 6 rollers, 10 rollers


Tubing Speed Flow rate of pump
head with 10 rollers (mL/min)		 Flow rate of pump
head with 6 rollers (mL/min)		 Tubing maximum pressure (Mpa)
Continuous Intermittent
1x1 0.1-150rpm 0.0050~7.55 0.0062~9.36 0.1 0.1
2x1 0.0183~27.52 0.0220~33.06
2.4x0.8 0.0254~38.13 0.0319~47.81
3x1 0.0323~48.38 0.0434~65.17
0.13x0.86 0.0002~0.29 0.0002~0.31
0.19x0.86 0.0003~0.44 0.0003~0.46
0.25x0.86 0.0005~0.76 0.0005~0.80
0.51x0.86 0.0013~2.00 0.0014~2.05
0.89x0.86 0.0030~4.47 0.0031~4.65
1.14x0.86 0.0061~9.16 0.0065~9.74
1.42x0.86 0.0125~18.75 0.0142~21.28
2.06x0.86 0.0197~29.60 0.0234~35.17
2.79x0.86 0.0286~42.86 0.0372~55.77


Tubing Installation Procedure

Invention Patent

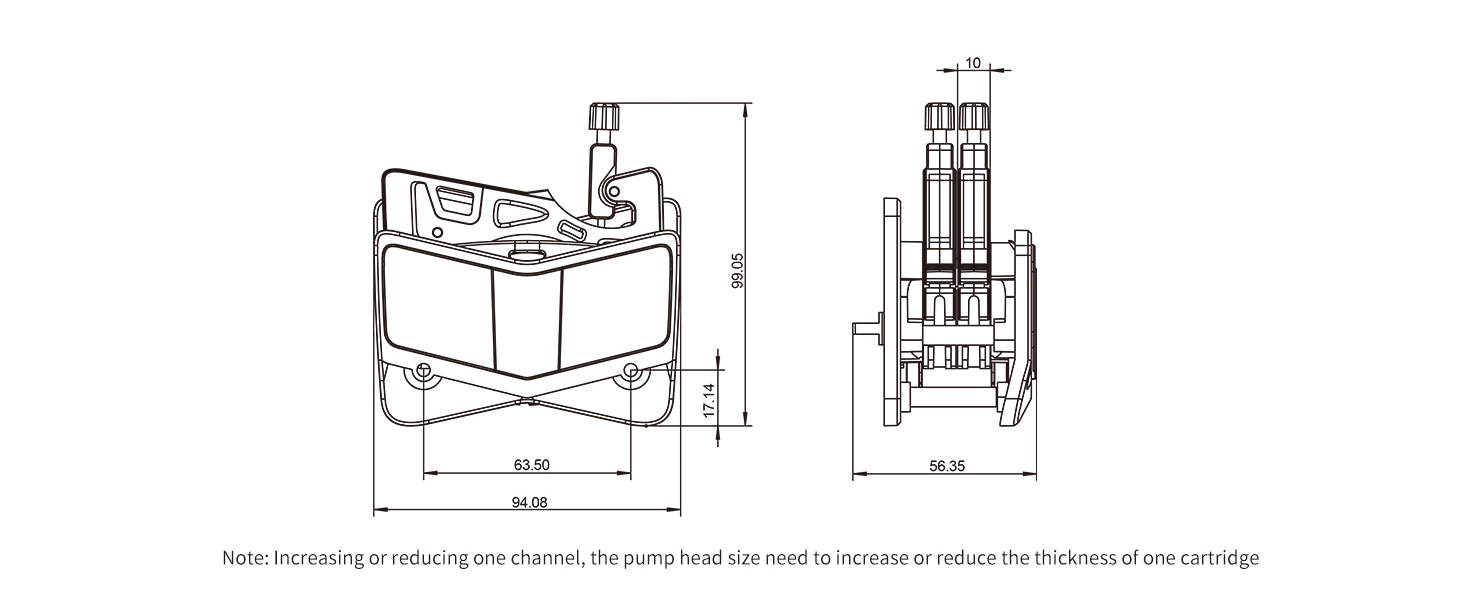

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
