MT12 peristaltic pump is designed specially for increasing the precision among channels.
The main body is made from aluminum alloy material. One compression block can press and fix 12 tubes at the same time to improve the transfer consistency and increase the transfer precision between channels.
Flow Range
Model No.
Housing Material
Rollers Material
Channel Number
Rollers Number
Speed （rpm）
Tubing and Flow Rate per channel（mL/min）
Tubing Maximum Pressure（Mpa）
MT12
Aluminum alloy
304/316 stainless steel
12 channels
10 rollers
0.1-50
0.51×0.9
1.02×0.86
2.06×0.86
2.54×0.86
Intermittent
Continuous
0.0016-0.84
0.005-2.5
0.015-7.5
0.020-10.5
0.2
0.15
Application Cases
Support the chemistry analytical instruments.

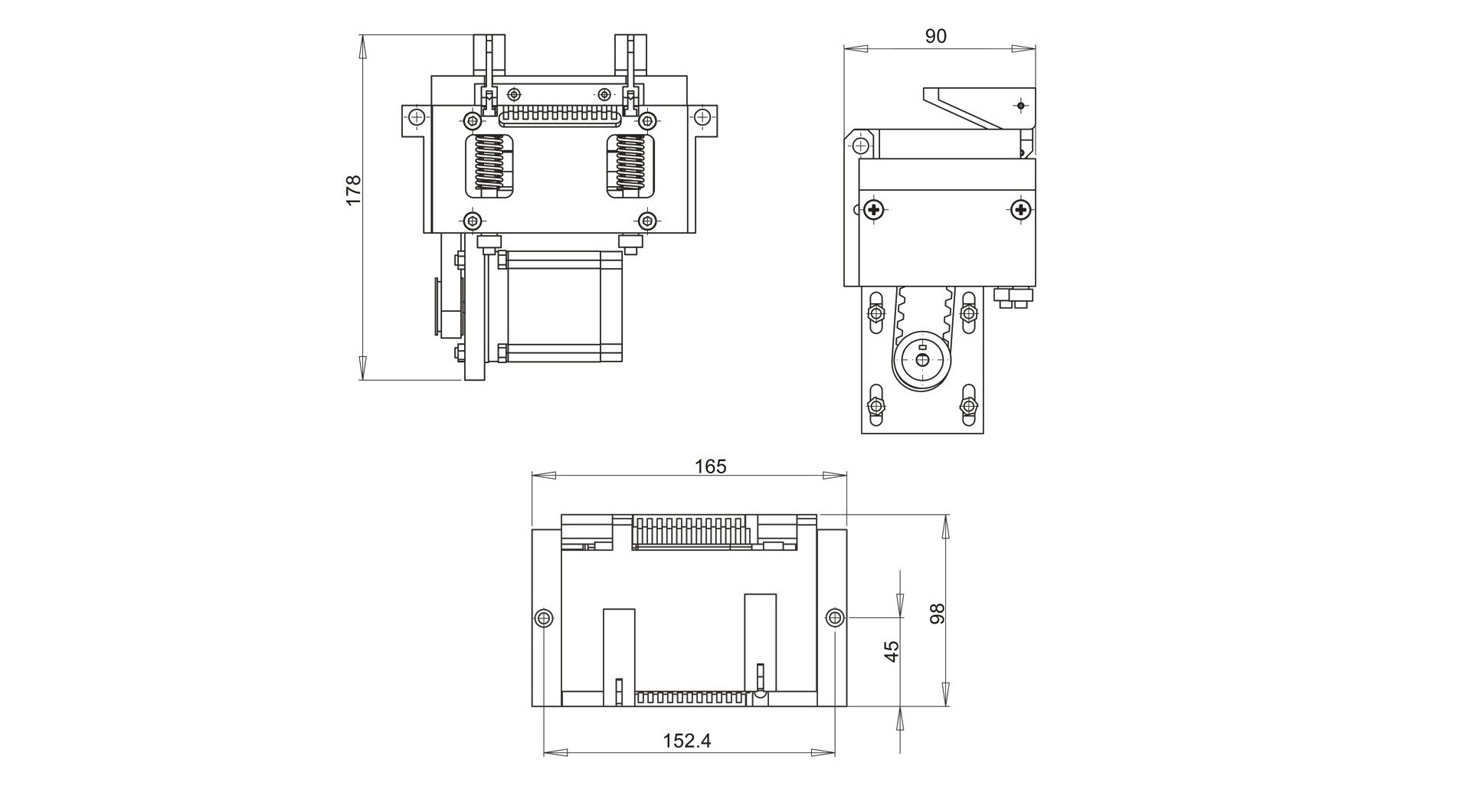

Dimension（Unit：mm）
