The tube clamp linkage mechanism makes it more convenient to install the tube.
The rubbing wheel adjustment mechanism can easily fix different size tube.
The lever assist mechanism makes the operation more easy.
The tube pressure gap fine-tuning mechanism can adjust the pressure, extend the life of the tube and improve the dispensing accuracy.
Two tubes can be installed at the same time to realize single pump head with two channels.
Technical Parameter
Model No.
OEM-JT12
Motor type
AC speed adjustable motor
Power supply
AC220V/AC110V
speed(rpm)
43-430
Flow rate
2.279-2222mL/min
Speed error
≤士10%
Working environment
0-40°C, 80%RH
Product lctroduction
Pump Head
Tubing
lDxWall thickness(mm)
mL/r
Flow Rate(mL/min) (43-430rpm)
Tubing Max.Pressure(Mpa)
Weight(kg)
Intermittent
Continuous
Single Channel EasyPump I/III
13#
0.8x1.6
0.053
2.279-22.79
0.27
0.17
0.6
14#
1.6x1.6
0.27
11.61-116.1
19#
2.4x1.6
0.55
23.65-236.5
16#
3.2x1.6
0.933
40.119-401.19
25#
4.8x1.6
1.967
84.581-845.81
0.24
0.14
17#
6.4x1.6
3.333
143.319-1433.19
0.14
0.10
18#
7.9x1.6
4.3
184.9-1849
0.10
0.07
Single Channel EasyPump II/IV
15#
4.8x2.4
1.8
77.4-774
0.27
0.17
24#
6.4x2.4
2.733
117.519-1175.19
35#
7.9x2.4
3.833
164.819-1648.19
0.24
0.14
36#
9.6x2.4
5.167
222.181-2221.81
Dual Channel EasyPump V/VI
13#
0.8x1.6
0.053
2.279-22.79
0.27
0.17
14#
1.6x1.6
0.27
11.61-116.1
19#
2.4x1.6
0.55
23.65-236.5
16#
3.2x1.6
0.933
40.119-401.19
25#
4.8x1.6
1.967
84.581-845.81
0.24
0.14

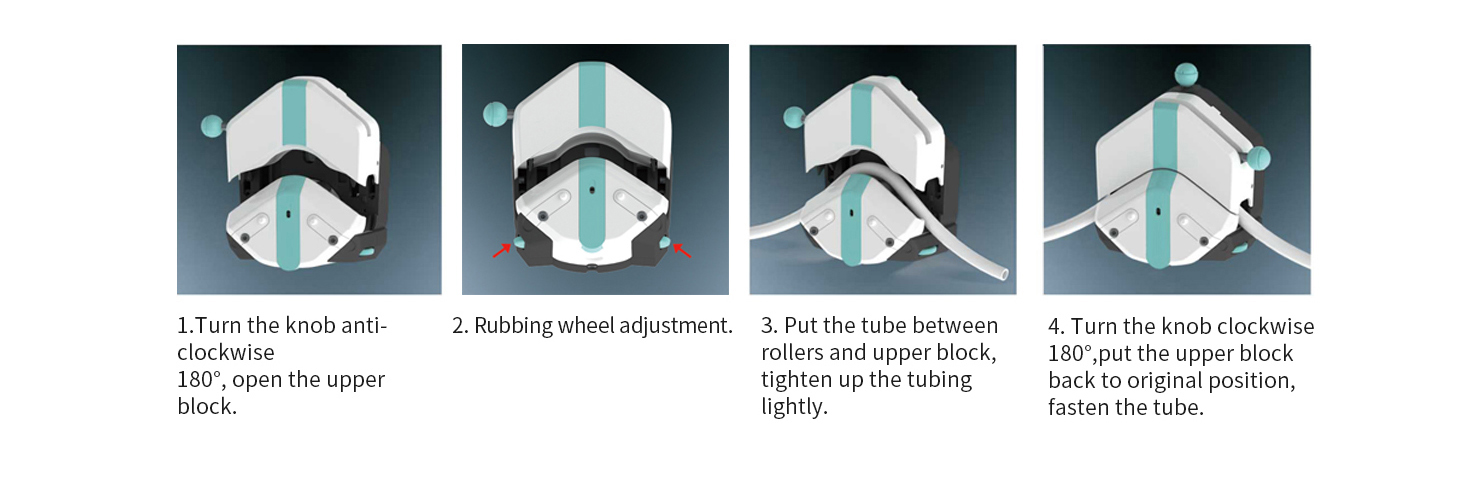

Tubing Installation Procedure
Invention Patent

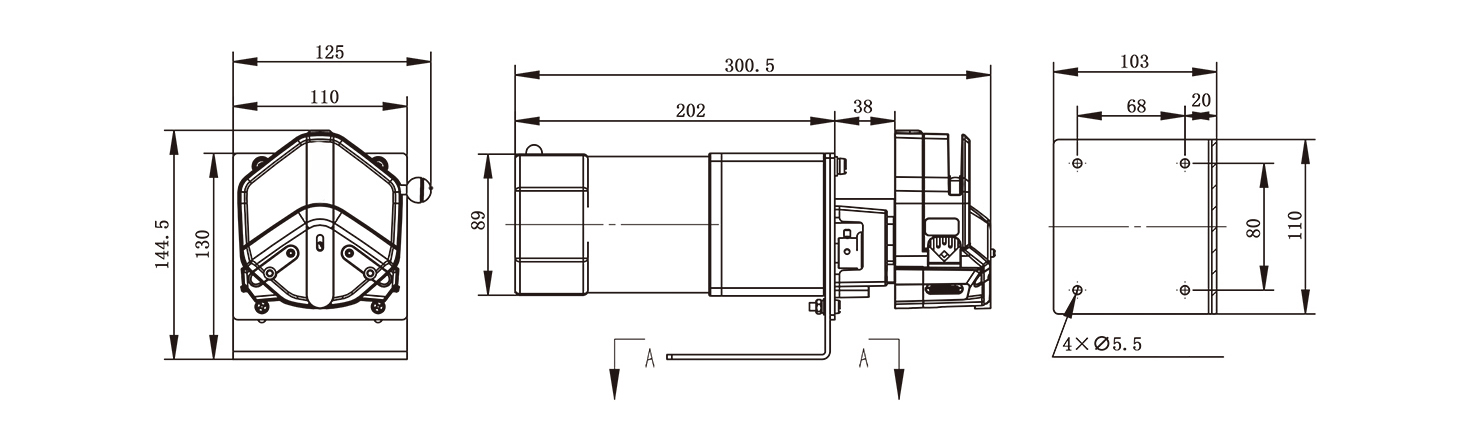

Dimension（Unit：mm）
