The tube clamp linkage mechanism makes it more convenient to install the tube.
The rubbing wheel adjustment mechanism can easily fix different size tube.
The lever assist mechanism makes the operation more easy.
The tube pressure gap fine-tuning mechanism can adjust the pressure, extend the life of the tube and improve the dispensing accuracy.
Two tubes can be installed at the same time to realize single pump head with two channels.
Technical Parameter
Model No.
OEM-Z216
Motor type
DC geared motor
Power supply
DC24V
Speed(rpm)
450
Flow rate
2325mL/min
Speed error
≤士10%
Working environment
0-40°C, 80%RH
Product lctroduction
Pump Head
Tubing
lDxWall thickness(mm)
mL/r
Flow Rate(mL/min) (0.1-600rpm)
Tubing Max.Pressure(Mpa)
Weight(kg)
Intermittent
Continuous
Single Channel EasyPump I/III
13#
0.8x1.6
0.053
0.0053-23.85
0.27
0.17
0.6
14#
1.6x1.6
0.27
0.027-121.5
19#
2.4x1.6
0.55
0.055-247.5
16#
3.2x1.6
0.933
0.093-419.85
25#
4.8x1.6
1.967
0.197-885.15
0.24
0.14
17#
6.4x1.6
3.333
0.333-149.85
0.14
0.10
18#
7.9x1.6
4.3
0.430-1935
0.10
0.07
Single Channel EasyPump II/IV
15#
4.8x2.4
1.8
0.180-810
0.27
0.17
24#
6.4x2.4
2.733
0.273-1229.85
35#
7.9x2.4
3.833
0.383-1724.85
0.24
0.14
36#
9.6x2.4
5.167
0.517-2325.15
Dual Channel EasyPump V/VI
13#
0.8x1.6
0.053
0.0053-23.85
0.27
0.17
14#
1.6x1.6
0.27
0.027-121.5
19#
2.4x1.6
0.55
0.055-247.5
16#
3.2x1.6
0.933
0.093-419.85
25#
4.8x1.6
1.967
0.197-885.15
0.24
0.14
Tubing Installation Procedure
Invention Patent

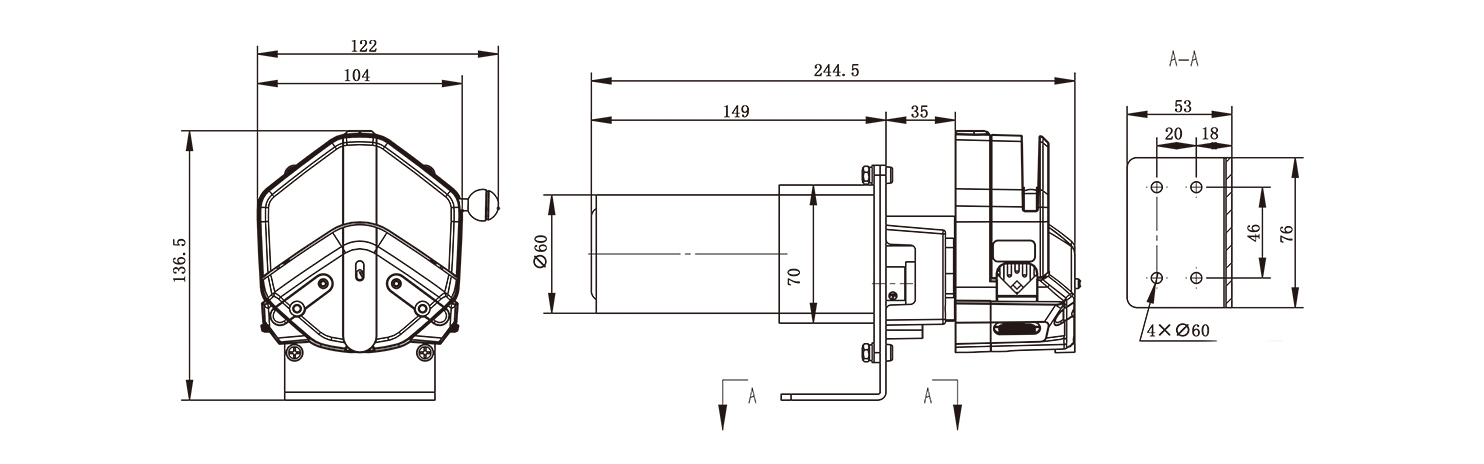

Dimension（Unit：mm）
