Use flexible tube clamp, meet hygiene requirements.
Technical Parameter
Model No.
OEM-B508
Speed range
0.1-600 rpm
Flow rate range
0.3-6000mL/min
Motor type
Closed-loop stepper motor
Motor phase number
2
Motor step angle
1.8°
Motor phase voltage
2V
Motor phase current
4.0A
Encoder power
5V
Working environment
0-40℃, 80%RH
Flow Range
Model No.
Housing Material
Tubing Clamp Material
Tubing
Flow Rate(mL/min) (0.1-600rpm)
Weight(kg)
Tubing Sizes
ID×Wall Thickness(mm)
DZ25-6L
Aluminum alloy/PPS
PP
15#
4.8×2.4
0.3-1800
1.86/0.86
24#
6.4×2.4
0.55-3300
35#
7.9×2.4
0.8-4800
36#
9.6×2.4
1-6000
Installation Steps
Application Cases
This pump head is suitable for high viscous liquid which include granule and floc.
It is also suitable for high pressure request.

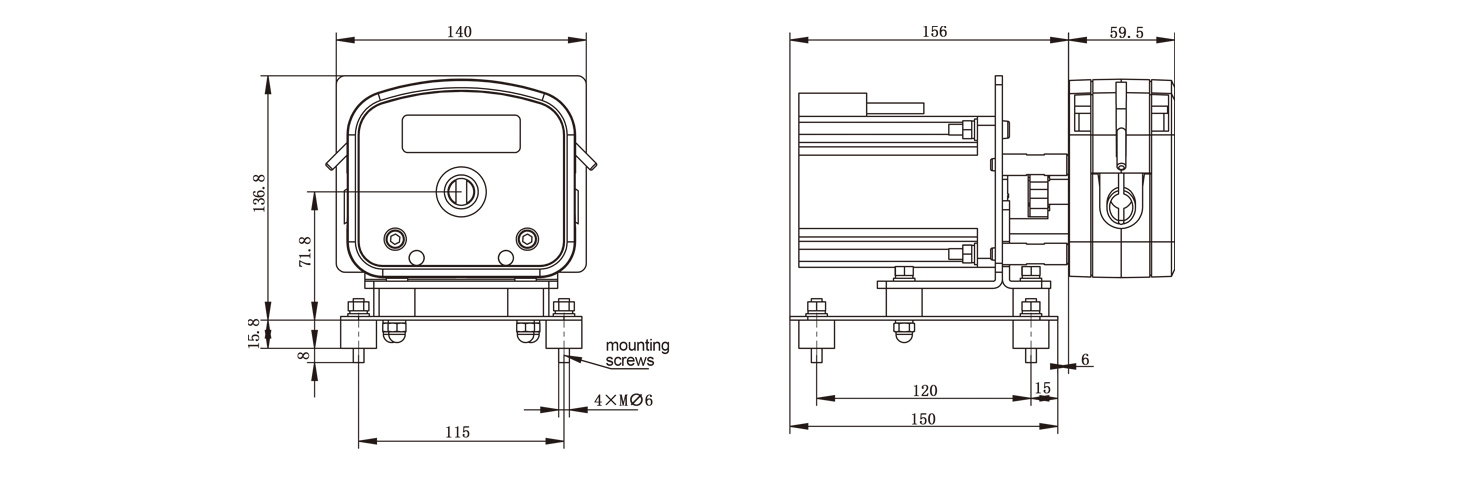

Dimension（Unit：mm）
