Use flexible tube clamp, meet hygiene requirements.
Technical Parameter
Model No.
OEM-JT12
Motor type
AC speed motor
Power supply
AC 220V(standard), AC 110V(optional)
Speed(rpm)
430
Speed error
≤±10%
Working environment
0-40℃, 80% RH
Flow Range
Model No.
Housing Material
Tubing Clamp Material
Tubing
Speed Range (rpm)
Flow Rate(mL/min)
Weight(kg)
Tubing Sizes
ID×Wall Thickness(mm)
DZ25-3L
PPS
PP
15#
4.8×2.4
43-430
90.73-907
0.5
24#
6.4×2.4
165.55-1656
35#
7.9×2.4
218.44-2184
36#
9.6×2.4
258.00-2580
Installation Steps
Application Cases
This pump head is suitable for high viscous liquid which include granule and floc.
It is also suitable for high pressure request.

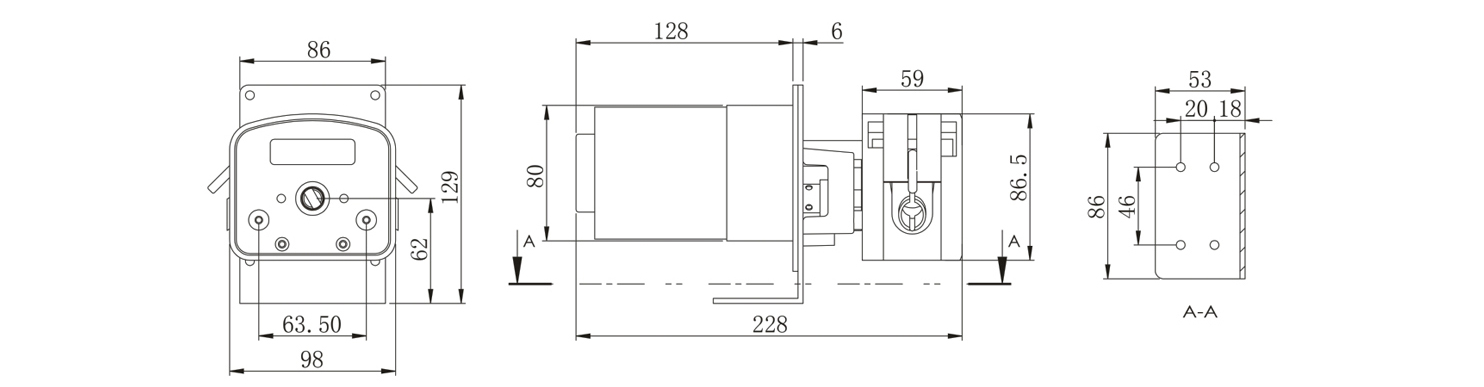

Dimension（Unit：mm）
