Use flexible tube clamp, meet hygiene requirements.
Technical Parameter
Model No.
OEM-Z402
Motor type
DC geared motor
Power supply
DC 24V
Speed(rpm)
600
Speed error
≤±10%
Working environment
0-40℃，80% RH
Flow Range
Model No.
Housing Material
Tubing Clamp Material
Tubing
Flow Rate(mL/min) (0.1-600rpm)
Weight(kg)
Tubing Sizes
ID×Wall Thickness(mm)
DZ25-3L
PPS
PP
15#
4.8×2.4
0.211-1264
0.5
24#
6.4×2.4
0.385-2310
35#
7.9×2.4
0.508-3050
36#
9.6×2.4
0.6-3600
Installation Steps
Application Cases
This pump head is suitable for high viscous liquid which include granule and floc.
It is also suitable for high pressure request.

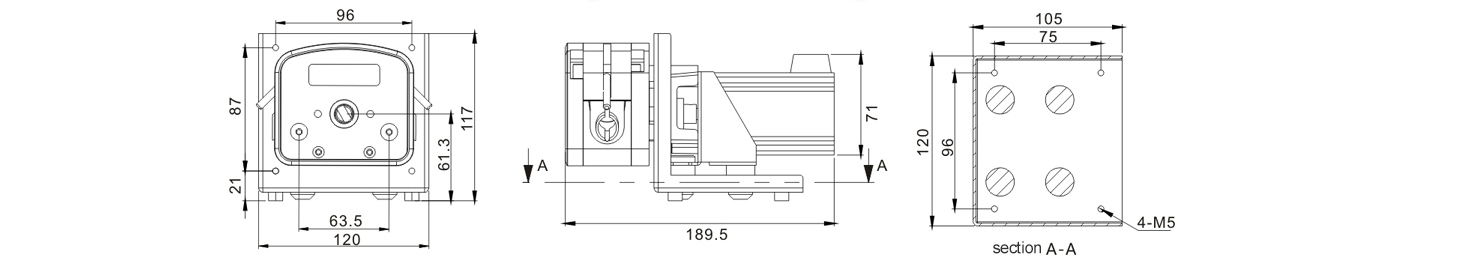

Dimension（Unit：mm）
