DZ25-3L
    Speed range：0.1-600 rpm
    Flow range：0.211-3600 mL/min
Optional pump head：
DZ25-3L
Online consultation
Download

Product Introduction

  • Cartridges and base's body is separated. It is convenient to change the tubing.
  • New cartridge structure design, can use both the special connector and the flexible tube card.
  • Wide flow rate range, accepts 15#, 24#, 35# and 36# tubing.
  • Pump head is stackable.

Flow Range

Model No. Housing Material Tubing Clamp
Material		 Tubing Flow Rate(mL/min)
(0.1-600rpm)		 Weight(kg)
Tubing Sizes ID×Wall Thickness(mm)
DZ25-3L PPS PP 15# 4.8×2.4 0.211-1264 0.5
24# 6.4×2.4 0.385-2310
35# 7.9×2.4 0.508-3050
36# 9.6×2.4 0.6-3600

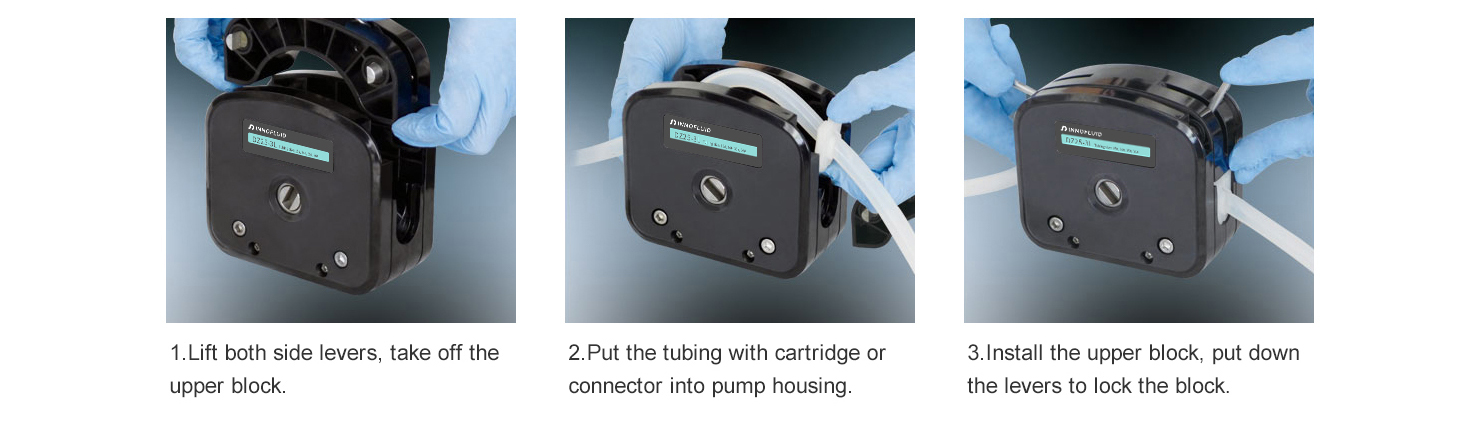

Installation Steps

Application Cases

  1. This pump head is suitable for high viscous liquid which include granule and floc.
  2. It is also suitable for high pressure request.

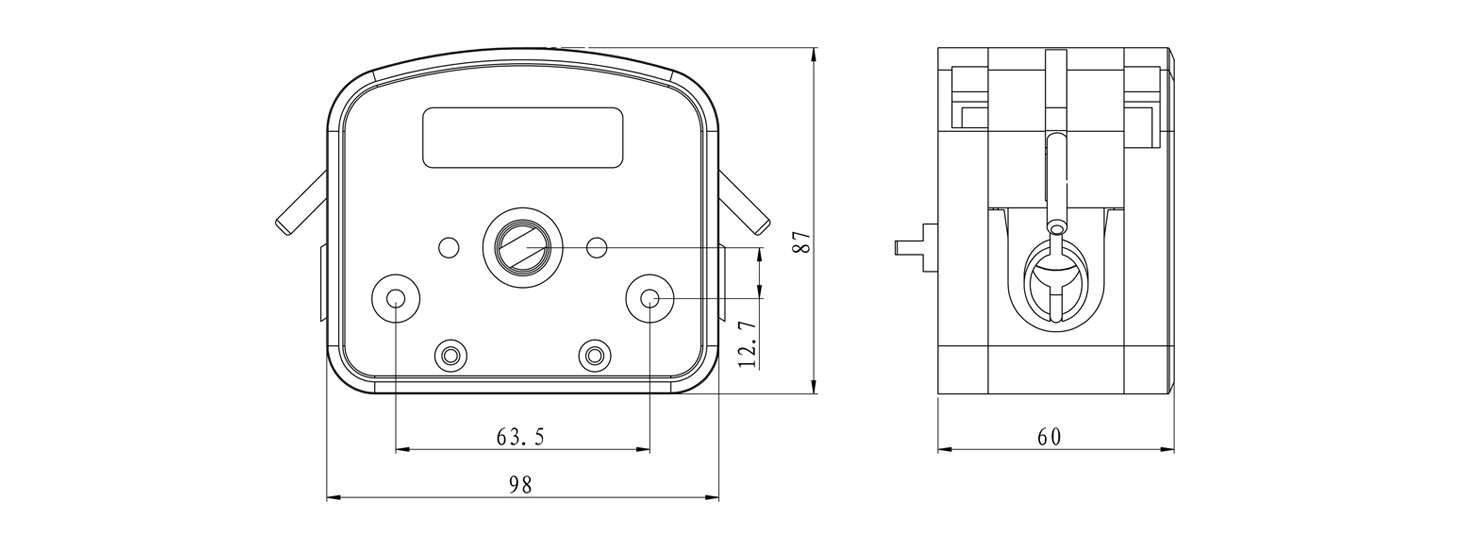

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
