The tube clamp linkage mechanism makes it more convenient to install the tube.
The rubbing wheel adjustment mechanism can easily fix different size tube.
The lever assist mechanism makes the operation more easy.
The tube pressure gap fine-tuning mechanism can adjust the pressure, extend the life of the tube and improve the dispensing accuracy.
Two tubes can be installed at the same time to realize single pump head with two channels.
Technical Parameter
Speed range
0.1-600rpm
Flow rate range
0.0053-2580mL/min
Motor type
57-76 stepper motor
Motor phase number
2
Motor step angle
1.8°
Motor phase voltage
3.4V
Motor phase current
3.0A
Working environment
0-40°C,80%RH
Product lctroduction
Pump Head
Tubing
lDxWall thickness(mm)
mL/r
Flow Rate(mL/min) (0.1-600rpm)
Tubing Max.Pressure(Mpa)
Weight(kg)
Intermittent
Continuous
Single Channel EasyPump I/III
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
0.6
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
25#
4.8x1.6
1.967
0.1967-1180
0.24
0.14
17#
6.4x1.6
3.333
0.3333-2000
0.14
0.10
18#
7.9x1.6
4.3
0.43-2580
0.10
0.07
Single Channel EasyPump II/IV
15#
4.8x2.4
1.8
0.18-1080
0.27
0.17
Dual Channel EasyPump V/VI
13#
0.8x1.6
0.053
0.0053-32
0.27
0.17
14#
1.6x1.6
0.27
0.027-162
19#
2.4x1.6
0.55
0.055-330
16#
3.2x1.6
0.933
0.0933-560
Tubing Installation Procedure
Invention Patent

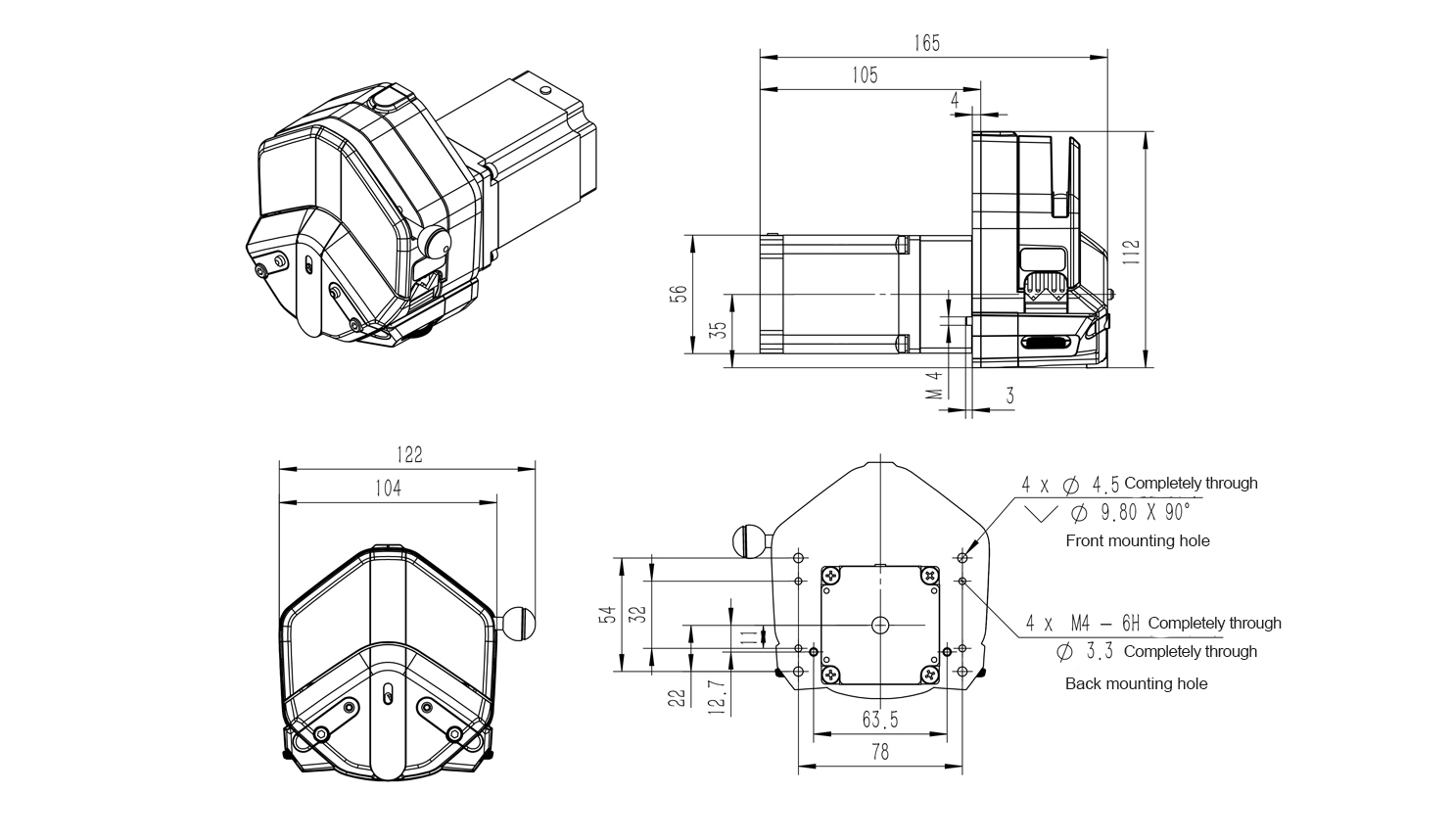

Dimension（Unit：mm）
