EasyPump(PPS)III/IV/VI
    Speed range：0.1-600rpm
    Flow range：0.0053mL/min-3100mL/min
Optional pump head：
EasyPump
Online consultation
Download

Product Introduction

  • 4 rollers, low pulsation, high precision.
  • The tube clamp linkage mechanism makes it more convenient to install the tube.
  • The rubbing wheel adjustment mechanism can easily fix different size tube.
  • The lever assist mechanism makes the operation more easy.
  • The tube pressure gap fine-tuning mechanism can adjust the pressure, extend the life of the tube and improve the dispensing accuracy.
  • Two tubes can be installed at the same time to realize single pump head with two channels.

Product lctroduction

Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump l Single Channel 1.6 NO
EasyPump II Single Channel 2.4 NO
EasyPump III Single Channel 1.6 Adjustable
EasyPump IV
 Single Channel
 2.4 Adjustable
EasyPump V
 Dual Channel
 1.6 NO
EasyPump VI
 Dual Channel
 1.6 Adjustable


Pump Head Tubing lDxWall
thickness(mm)		 mL/r Flow Rate(mL/min)
(0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14
17# 6.4x1.6 3.333 0.3333-2000 0.14 0.10
18# 7.9x1.6 4.3 0.43-2580 0.10 0.07
Single Channel
EasyPump II/IV
 15# 4.8x2.4 1.8 0.18-1080 0.27 0.17
24# 6.4x2.4 2.733 0.2733-1640
35# 7.9x2.4 3.833 0.3833-2300 0.24 0.14
36# 9.6x2.4 5.167 0.5167-3100
Dual Channel
EasyPump V/VI		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14

Tubing Installation Procedure

Invention Patent

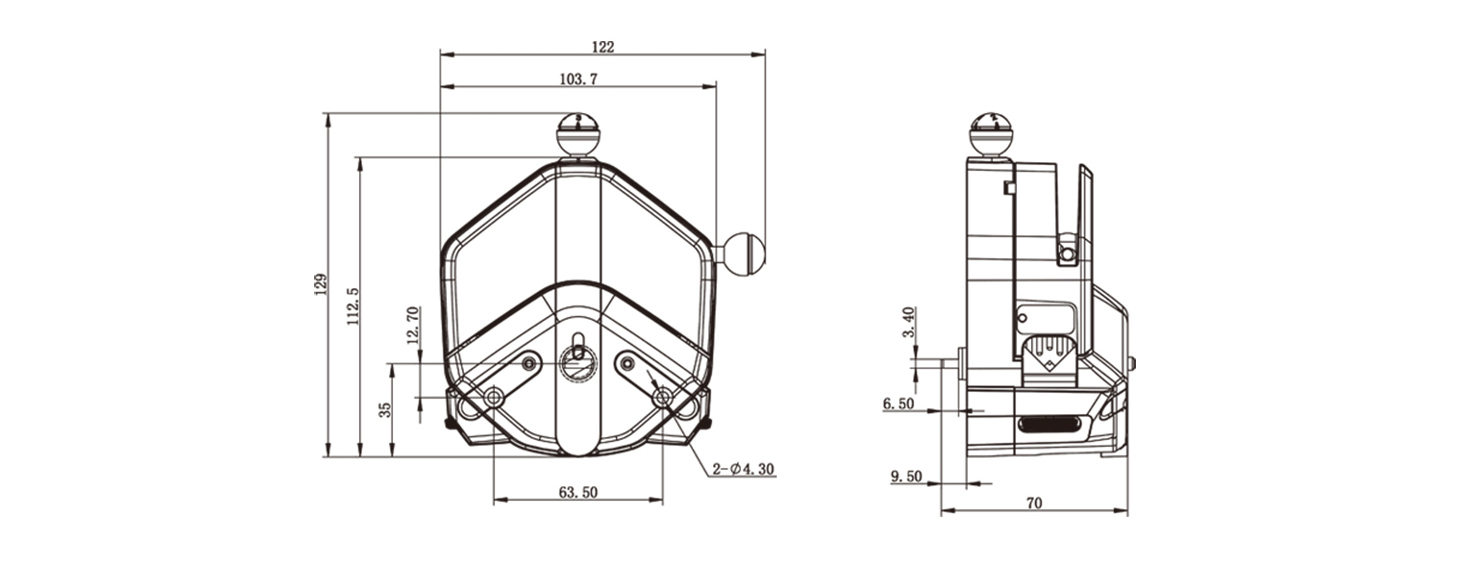

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
