Exquisite appearance, fixed tube space and stable running.
Stack several pump heads, and support various equipments.
Technical Parameter
Model No.
OEM-B255
Speed range
0.1-600 rpm
Flow rate
0.024-1500 mL/min
Motor type
57 stepper motor
Motor phase number
2
Motor step angle
1.8°
Motor phase voltage
2.7V
Motor phase current
3.0A
Working temperature
0-40℃, <80% RH
Flow Range
Model No.
Housing Material
Rollers Material
Tubing
Speed range(rpm)
Flow rate(mL/min)
Weight(kg)
Tubing size
ID×Wall thickness(mm)
SN15-14
PC
304 Stainless steel
14#
1.6×1.6
0.1-600
0.024-144
0.20
SN15-16
16#
3.1×1.6
0.088-528
SN25
24#
6.4×2.4
0.25-1500
Installation Steps
Application Cases

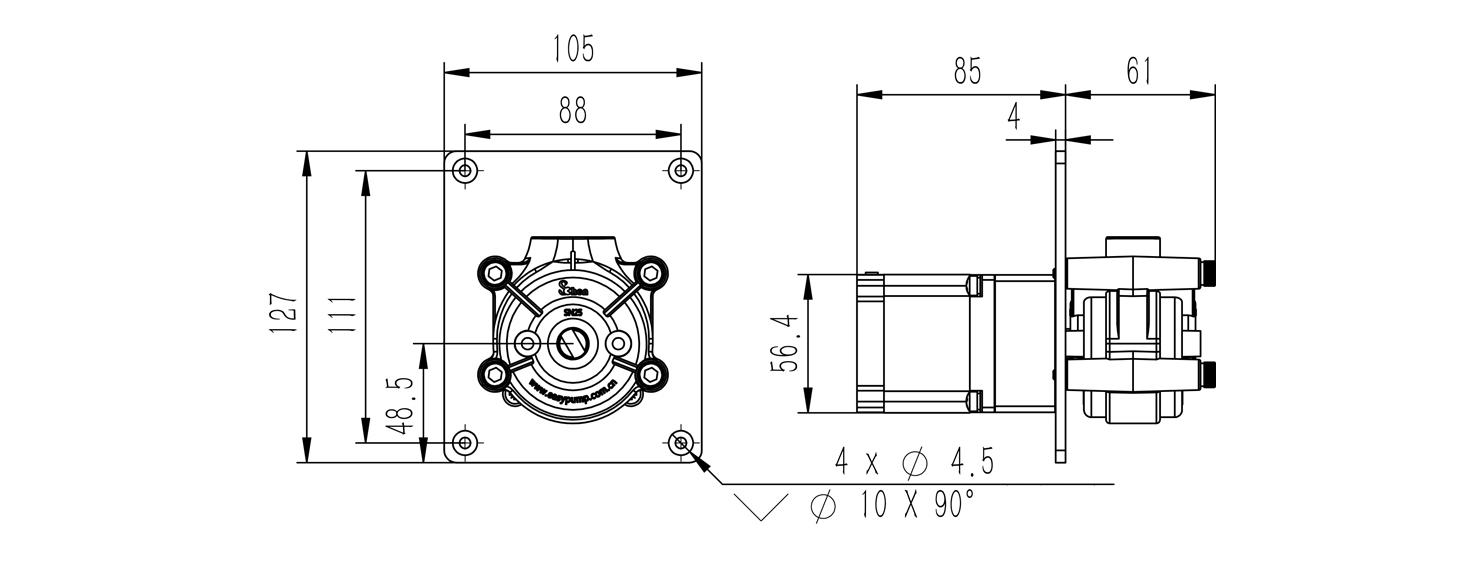

Dimension（Unit：mm）
