Two kinds of material housing for option: PPS and PSF.
High precision and high rigidity.
3 rollers and 6 rollers for option.
304/316 stainless steel roller material resists corrosion.
Technical Parameter
Model No.
OEM-JT406
Pump head
6*YZ15(25)15x
Motor type
AC speed regulating motor
Voltage
AC110V/220V
Power consumption
120 W
Motor size
Φ90 mm
Speed (rpm)
450 rpm
Speed error
≤±10%
Dimension (LW*H)
588.4 * 110 * 137 mm
Relative humidity
<80%
Working temperature
0-40℃
Flow Range
Model No.
Tubing
ID×Wall thickness (mm)
mL/rpm
(0.1-600rpm) Flow rate (mL/min)
Tubing max pressure Mpa
Material & Weight(kg)
Intermittent
Continous
PSF
PPS
YZ1515x
13#
0.8×1.6
0.07
0.07-42
0.27
0.17
0.40 （three rollers）
0.44 （six rollers）
0.46 （three rollers）
0.50 （six rollers）
14#
1.6×1.6
0.27
0.27-162
19#
2.4×1.6
0.55
0.055-330
16#
3.1×1.6
0.82
0.082-492
25#
4.8×1.6
1.7
0.17-1020
0.24
0.14
17#
6.4×1.6
2.9
0.29-1740
0.14
0.10
18#
7.9×1.6
3.8
0.38-2280
0.10
0.07
YZ2515x
15#
4.8×2.4
1.7
0.17-1020
0.27
0.17
0.40 （three rollers）
0.46 （three rollers）
24#
6.4×2.4
2.9
0.29-1740
Installation Steps
Application Cases

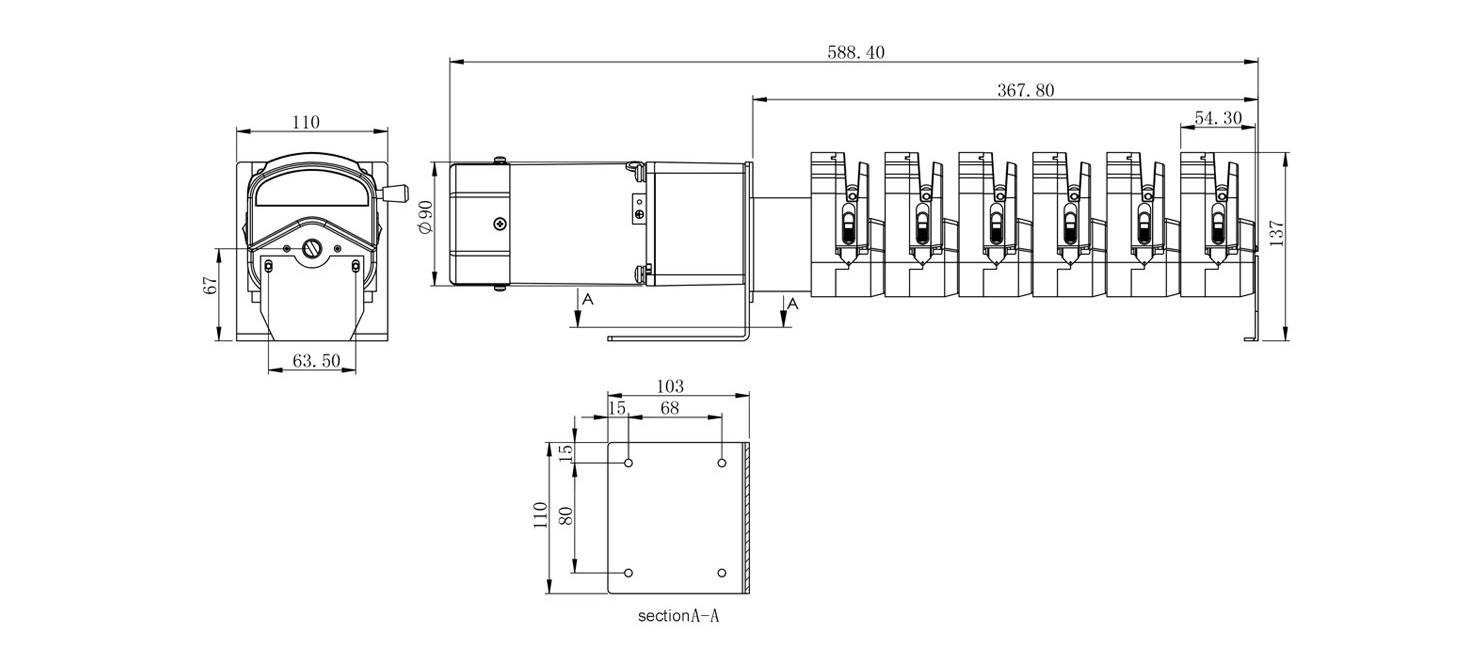

Dimension（Unit：mm）
