OEM-B242
    Speed range：0.1-600 rpm
    Flow range：0.007-2280 mL/min
Optional pump head：
YZ1515x
YZ2515x
Online consultation

Product Introduction

  • Change the tubing easily and rapidly.
  • Two kinds of material housing for option: PPS and PSF.
  • ​High precision and high rigidity.​​
  • 3 rollers and 6 rollers for option.
  • 304/316 stainless steel roller material resists corrosion.

Technical Parameter

Model No. OEM-B242,OEM-B243,OEM-B244
Pump head YZ1515x/YZ2515x
Flow rate resolution 0.01 μL
Control method Touch screen and Mechanical keypad
Condition temperature 0-40℃
Communication interface RS232, RS485 (for option)
Back suction angle 0-360°
Speed range 0.1-150 rpm, 0.1-350 rpm, 0.1-600 rpm for option (Default 0.1-600 rpm)
Power supply AC 28.5V / AC 15V, DC 36V / DC 12V
External control switch signal (for option)
​Relative humidity 80% RH
Output interface Output motor working status (Open-collector output)
​IP rating IP31
Power consumption <50W

Flow Range

Model No. Tubing ID×Wall thickness
(mm)		 mL/rpm (0.1-600rpm)
Flow rate
(mL/min)		 Tubing max pressure Mpa Material & Weight(kg)
Intermittent Continous PSF PPS
YZ1515x 13# 0.8×1.6 0.07 0.07-42 0.27 0.17

0.40
（three rollers）



0.44
（six rollers）

0.46
（three rollers）



0.50
（six rollers）
14# 1.6×1.6 0.27 0.27-162
19# 2.4×1.6 0.55 0.055-330
16# 3.1×1.6 0.82 0.082-492
25# 4.8×1.6 1.7 0.17-1020 0.24 0.14
17# 6.4×1.6 2.9 0.29-1740 0.14 0.10
18# 7.9×1.6 3.8 0.38-2280 0.10 0.07
YZ2515x 15# 4.8×2.4 1.7 0.17-1020 0.27 0.17 0.40
（three rollers）		 0.46
（three rollers）
24# 6.4×2.4 2.9 0.29-1740

Installation Steps

Application Cases

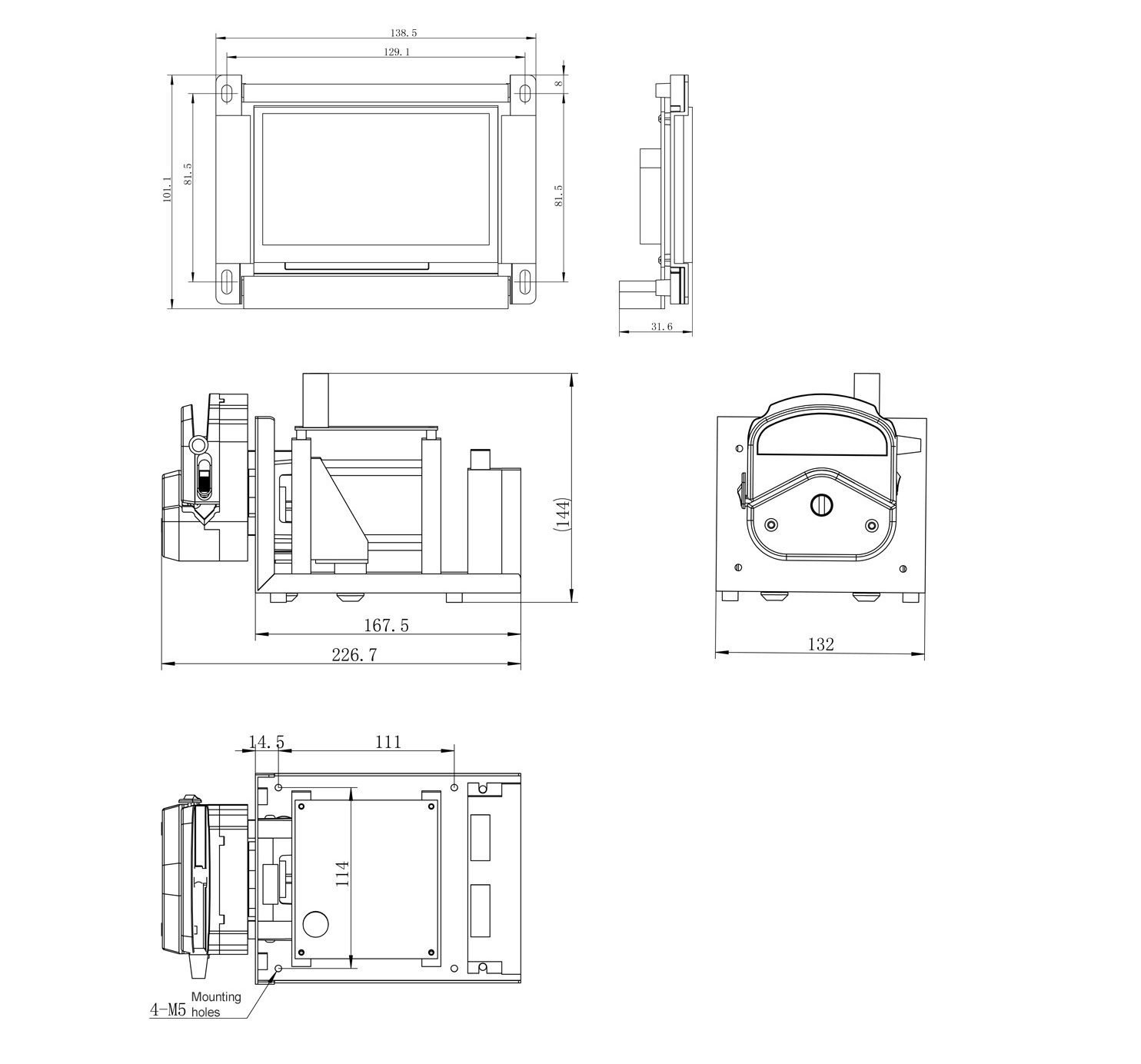

Dimension（Unit：mm）
