OEM-B224
    Speed range：0.1-600 rpm
    Flow range：0.007-2280 mL/min
Optional pump head：
YZ1515x
YZ2515x
Online consultation

Product Introduction

  • Change the tubing easily and rapidly.
  • Two kinds of material housing for option: PPS and PSF.
  • ​High precision and high rigidity.​​
  • 3 rollers and 6 rollers for option.
  • 304/316 stainless steel roller material resists corrosion.

Technical Parameter

Model No. OEM-B224
Motor type 57 stepper motor
Pump head YZ1515x YZ2515x
Speed range ≤600 rpm
Speed resolution 0.1 rpm
Speed control Membrane Keypad (option)
Display method 0.96 OLED Screen
External analog signal control speed 0-5V, 0-10V, 4-20mA
Three analog signals optional (default 0-5V, 4-20mA)
External control switch signal control start and stop (default active 5V)
Communication interface RS485 communication (standard Modbus protocol, RTU mode)
Power AC110V/220V (default AC220V)
Power consumption ≤50W
Maximum flow rate YZ1515x : 2280 mL/min
YZ2515x : 1740 mL/min
Tubing size YZ1515X : 13#, 14#, 19#, 16#, 25#, 17#, 18#
YZ2515X : 15#, 24#
Dimension (LWH) 338.7 * 136.3 * 137.2 mm
Working temperature 0-40℃
Relative humidity <80%

Flow Range

Model No. Tubing ID×Wall thickness
(mm)		 mL/rpm (0.1-600rpm)
Flow rate
(mL/min)		 Tubing max pressure Mpa Material & Weight(kg)
Intermittent Continous PSF PPS
YZ1515x 13# 0.8×1.6 0.07 0.07-42 0.27 0.17

0.40
（three rollers）



0.44
（six rollers）

0.46
（three rollers）



0.50
（six rollers）
14# 1.6×1.6 0.27 0.27-162
19# 2.4×1.6 0.55 0.055-330
16# 3.1×1.6 0.82 0.082-492
25# 4.8×1.6 1.7 0.17-1020 0.24 0.14
17# 6.4×1.6 2.9 0.29-1740 0.14 0.10
18# 7.9×1.6 3.8 0.38-2280 0.10 0.07
YZ2515x 15# 4.8×2.4 1.7 0.17-1020 0.27 0.17 0.40
（three rollers）		 0.46
（three rollers）
24# 6.4×2.4 2.9 0.29-1740

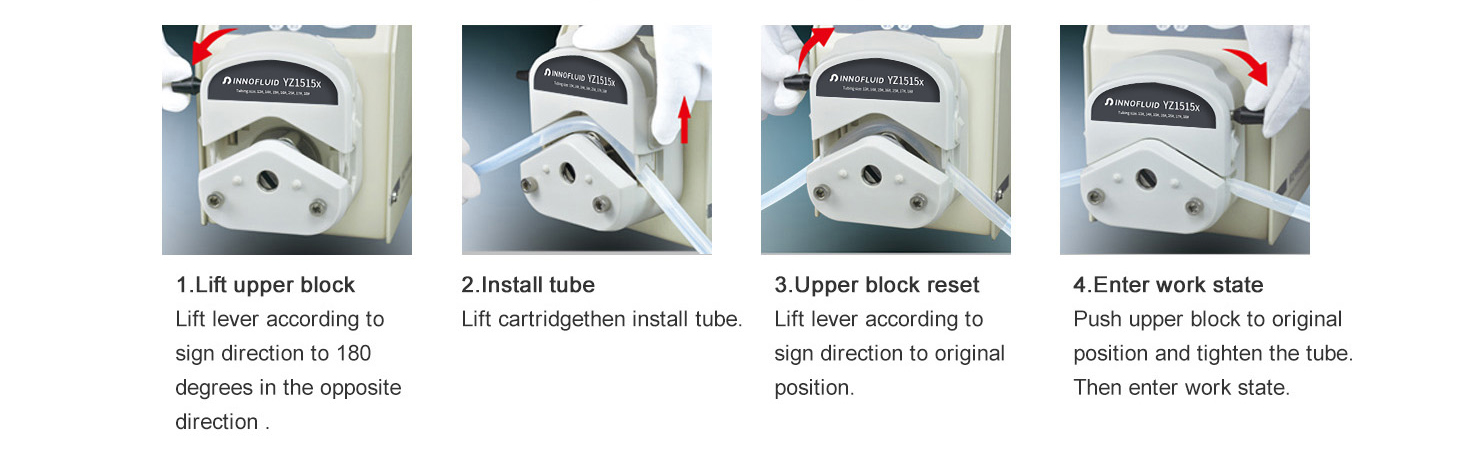

Installation Steps

Application Cases

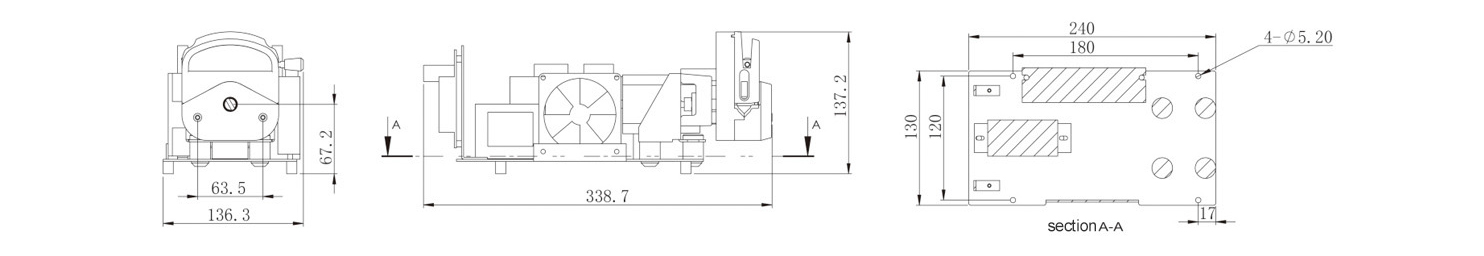

Dimension（Unit：mm）
