YZ1515x (PSF & PPS)
    Speed range：0.1-600 rpm
    Flow range：0.007-2280 mL/min
Optional pump head：
YZ1515x
Online consultation

Product Introduction

  • Housing material - PSF or PPS. PSF pump head has white color and good appearance. It resists high temperature with long-term usage from -100℃ to 150℃, perfect aging-resistant performance under high temperature. PSF pump head resists corrosion from most inorganic acids, bases and salts, but not organic solvents. For organic solvent transfer, use PPS pump head.
  • PPS material pump head features high molding precision and rigidity. Achieves long-term heavy-duty operation and high-accuracy fluid transfer. Resists temperatures up to 200℃ and strong chemical corrosion (e.g. organic solvents).
  • Rollers material - 304 stainless steel: corrosion-resistant, rust-proof, high sanitary grade, low maintenance rate. Reduces customer costs.
  • Compatible with 9 tubing sizes ensuring transfer precision of ±0.5‰ ~ ±1%.

Flow Range

Model No. Tubing ID×Wall thickness
(mm)		 mL/rpm (0.1-600rpm)
Flow rate
(mL/min)		 Tubing max pressure Mpa Material & Weight(kg)
Intermittent Continous PSF PPS
YZ1515x 13# 0.8×1.6 0.07 0.07-42 0.27 0.17

0.40
（three rollers）



0.44
（six rollers）

0.46
（three rollers）



0.50
（six rollers）
14# 1.6×1.6 0.27 0.27-162
19# 2.4×1.6 0.55 0.055-330
16# 3.1×1.6 0.82 0.082-492
25# 4.8×1.6 1.7 0.17-1020 0.24 0.14
17# 6.4×1.6 2.9 0.29-1740 0.14 0.10
18# 7.9×1.6 3.8 0.38-2280 0.10 0.07
YZ2515x 15# 4.8×2.4 1.7 0.17-1020 0.27 0.17 0.40
（three rollers）		 0.46
（three rollers）
24# 6.4×2.4 2.9 0.29-1740

Installation Steps

Application Cases

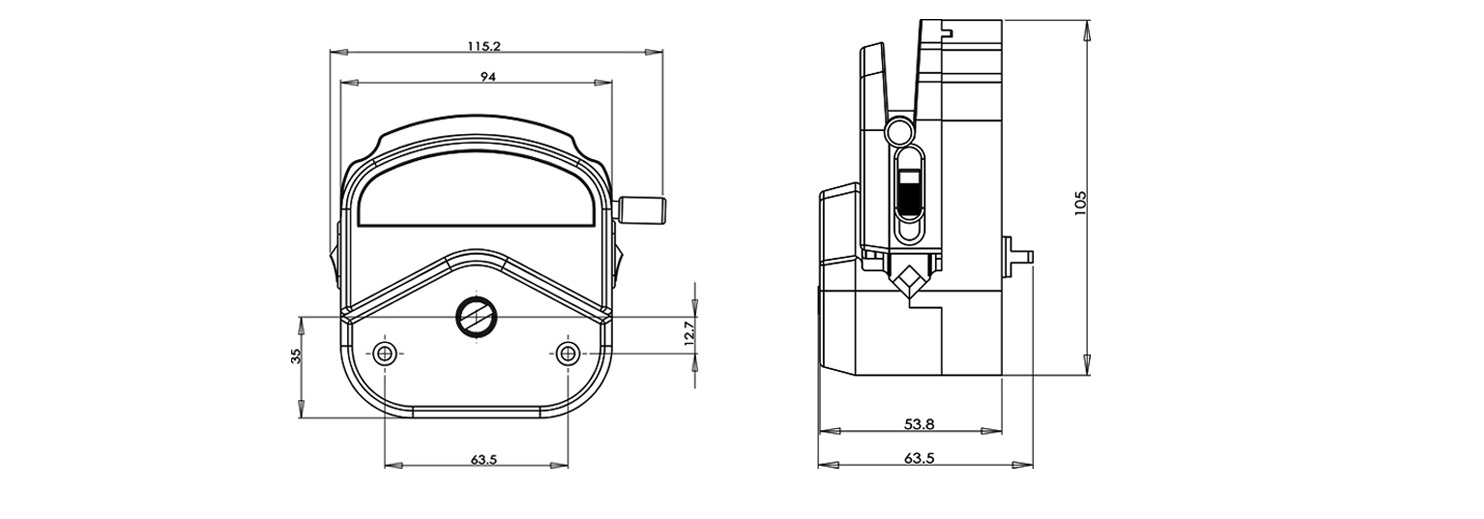

Dimension（Unit：mm）

Video Tutorials

Tubing Installation Demonstration
Tubing Installation Demonstration
