Transparent protective cover, easy to observe the working status of pump head and tubing.
Can use different motor drives, including stepper motor, DC motor and AC motor.
Embedded design, can be used in different equipment and instruments.
Technical Parameter
Model No.
OEM-UB04
Speed range
0.1-350 rpm
Flow rate range
0.08-930 mL/min
Motor type
42 stepper motor
Speed control
Communication control
Address setting
1-32
Power supply
DC 24V,≥36W
Communication interface
RS232,RS485 interface modbus protocol, control start/stop, direction and speed
Working environment
0-40℃, 80% RH
Flow Range
Model
Housing Material
Tubing
Speed range(rpm)
Flow rate(mL/min)
Weight(kg)
Body
Protective Cover
Tubing size
ID×Wall thickness(mm)
UD15
PSF
Transparent PC
16#
3.1×1.6
0.1-350
0.08-280
0.12
25#
4.8×1.6
0.16-580
17#
6.4×1.6
0.26-930
Installation Steps
Application Cases

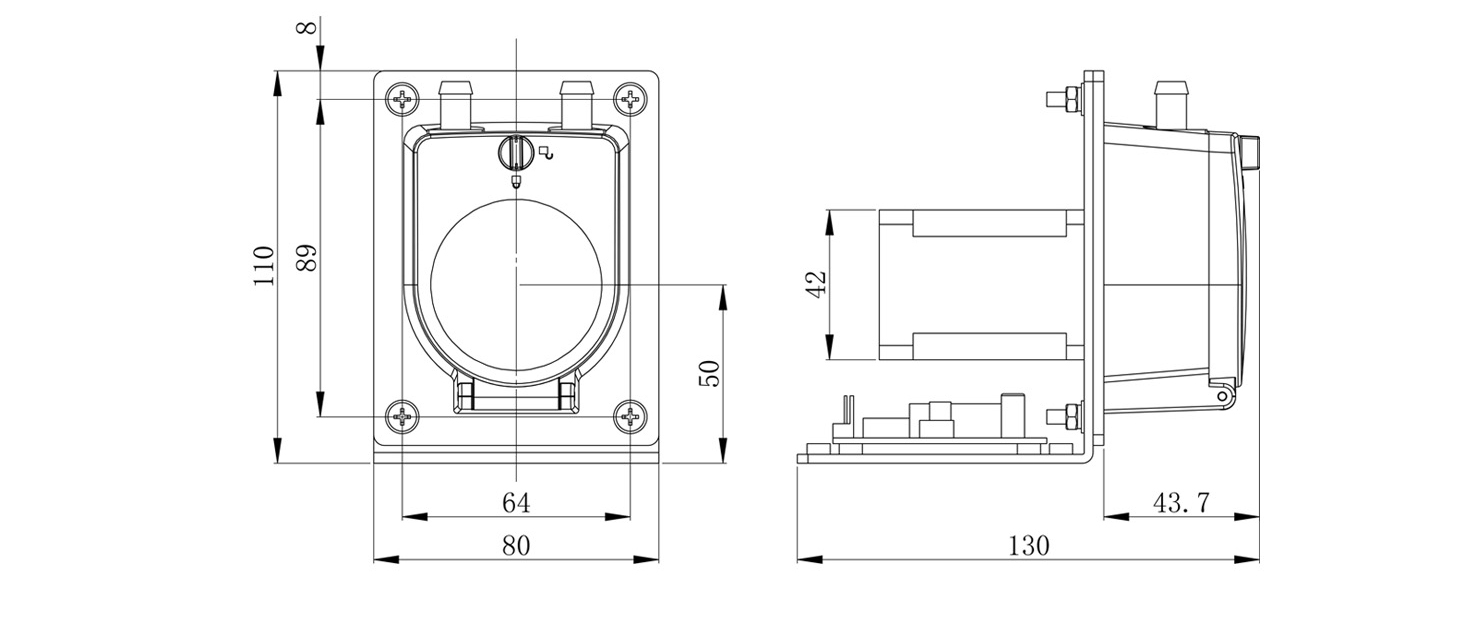

Dimension（Unit：mm）
