Transparent protective cover, easy to observe the working status of pump head and tubing.
Can use different motor drives, including stepper motor, DC motor and AC motor.
Embedded design, can be used in different equipment and instruments.
Flow Range
Model
Material
Tubing
Speed range(rpm)
Flow rate(mL/min)
Weight(kg)
Pump Head
Cover
Tubing size
ID×Wall thickness(mm)
UD15
PSF
Transparent PC
16#
3.1×1.6
0.1-350
0.08-280
0.12
25#
4.8×1.6
0.16-580
17#
6.4×1.6
0.26-930

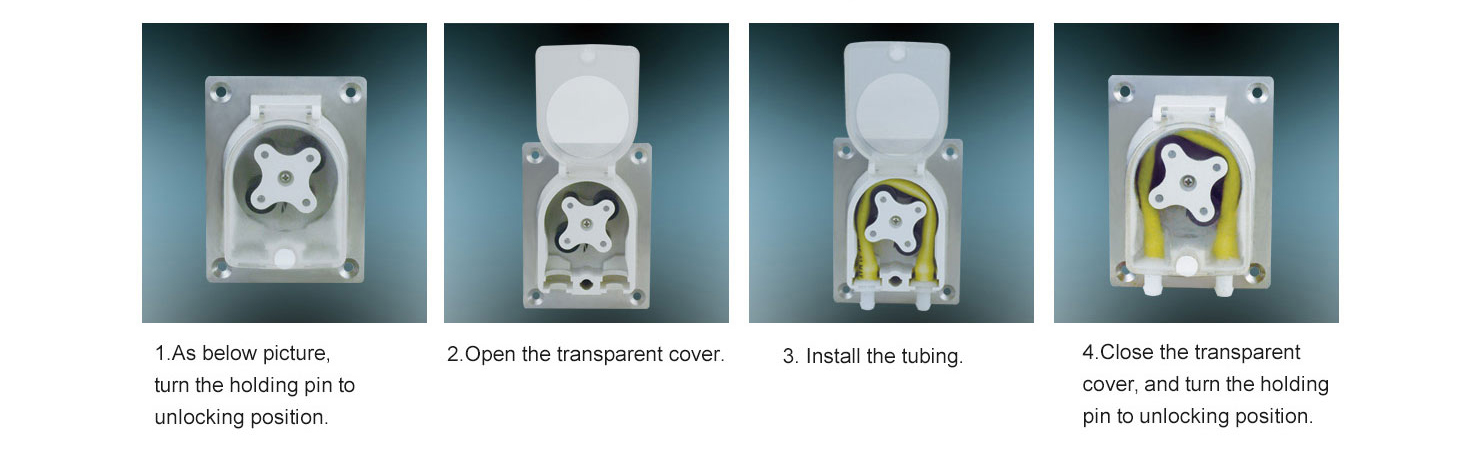

Tubing Installation Procedure
Application Cases
For analytical instruments, For environment instruments.

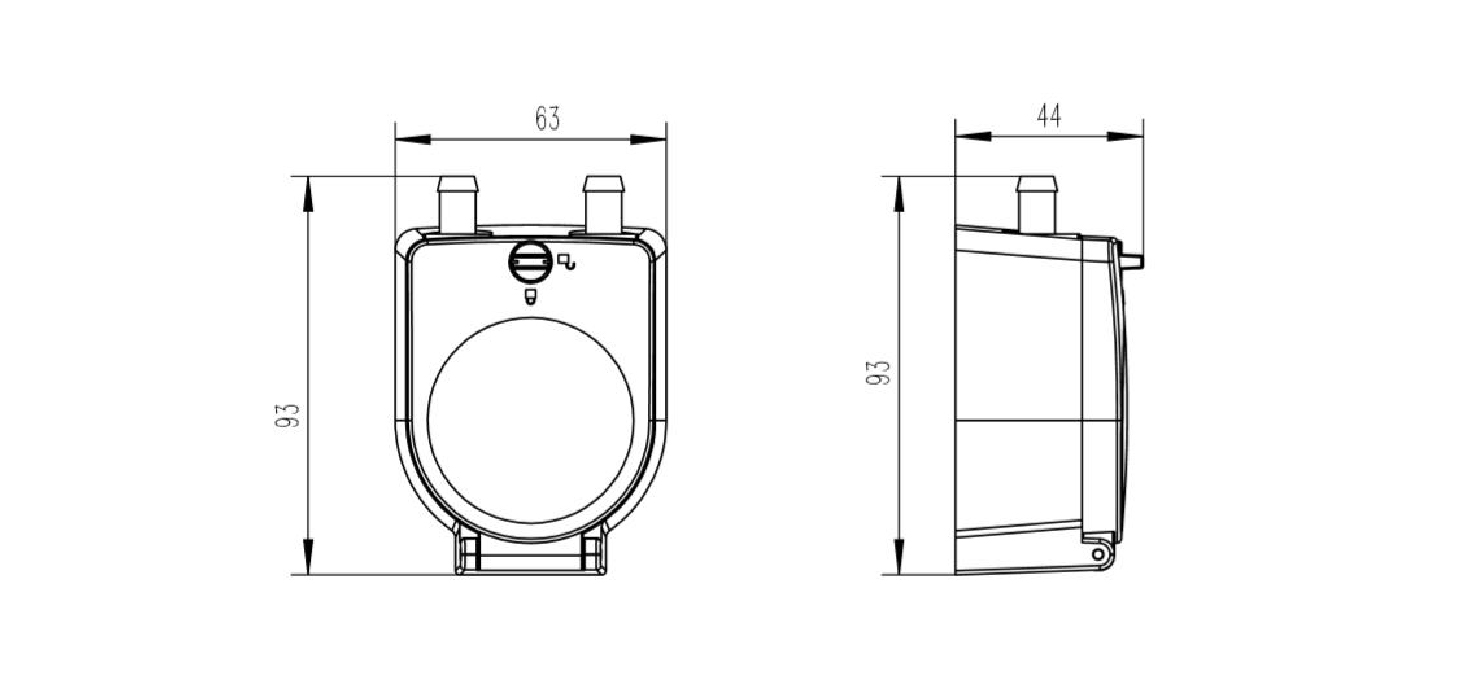

Dimension(Unit:mm)
Video Tutorials
Tubing Installation Demonstration
Tubing Installation Demonstration
