QD600
    Speed range：600-600rpm
    Flow range：3.18-2580mL/min
Optional pump head：
EasyPump
YZ1515/YZ2515x
AMC
DZ25-3L
Online consultation

Product Introduction

  • Gas driven, safe explosion-proof, apply to power hidden trouble or without power supply.
  • Low heat, low temperature-rise, start/stop, reverse function, overload protection.
  • 150W low maintenance motor, large torque, stepless speed regulation.
  • F.R.L unit direction reversible, when working, it can rotate outward to open and deadlock, convenient for user to observe air pressure value.
  • Stainless steel housing with handle, portable and convenient.

Technical Parameter

Speed range 60-600rpm
Display Display air pressure
Speed control function stepless speed regulation(By adjusting the flow valve)
Working air pressure Start/stop, reversing(gas reversing valve control)
Gas consumption 0.4-0.7Mpa
Drive dimension(LxWxH) 4-8L/sec
Drive weight Working:266x272x230mm, Non-working:356x152 x230mm
Condition temperature 4.10 kg
Relative humidity 0-40°C
IP rate 4.1kg

Pump Head Parameter

Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-A-IV-1
60-600
EasyPumpl/llI
13#, 14#, 19#, 16#, 25#, 17#.18#
3.18-2580
EasyPumpll/IV
15#, 24#, 35#, 36#
108-3100
EasyPumpV/VI
13#, 14#, 19#, 16#, 25#
3.18-1180
YZ1515x
13#, 14#, 19#, 16#, 25#, 17#.18#
5-2280
YZ2515x
15#, 24#
100-1740
AMC1-AMC12
Inner diameter:0.13-3mm
Wall thickness:0.8-1mm
0.12-65(suggestionworking speeds150rpm)
DZ25-3L
15#, 24#, 35#, 36#
120-3600

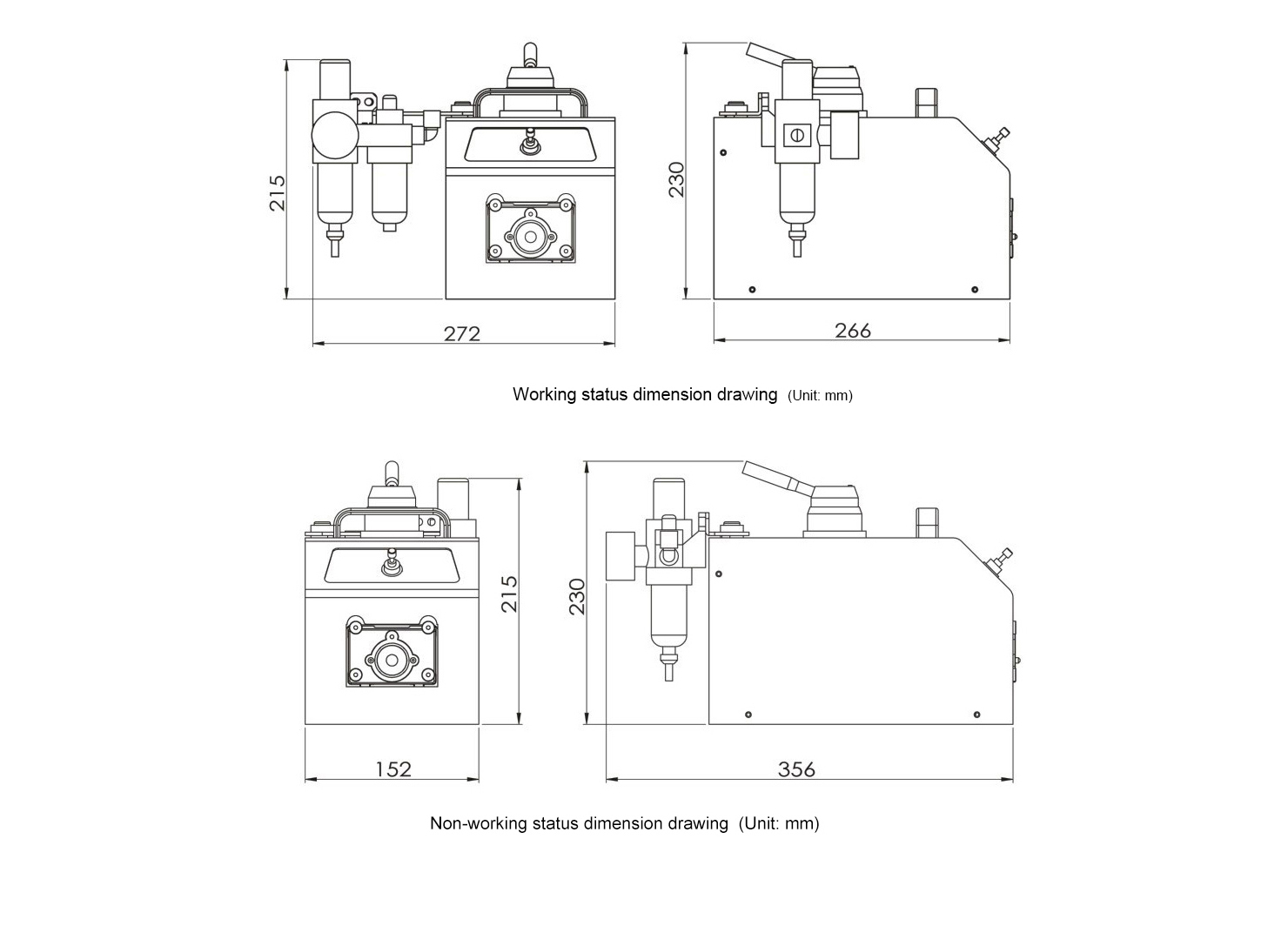

Dimension（Unit：mm）
