EXP600-IV-1/YZ35(PPS)
- Speed range：60-600rpm
- Flow range：414-12000mL/min
Optional pump head：
YZ35
- Product Introduction
- Technical Parameter
- Pump Head Parameter
- Dimension
Product Introduction
- It is safe and explosion-proof, and suitable for occasions with potential electrical hazard.
- Frequency converter speed regulation, positive and reverse rotation reversible.
- Stable flow, high torque, low noise, suitable for various pump heads and hoses.
- Two YZ15/25/35 pump heads can be used in series. After the outlet channels are combined. The flow increases, the pulse decreases, and the fluid transmission is more stable
Technical Parameter
| Flow rate | 414-12000mL/min |
| Speed range | 60-600rpm |
| Speed control | Inverter speed regulation |
| Display | Frequency converter displays operating frequency |
| Speed regulation resolution | 0.01Hz |
| External control | Passive switch signal control start/stop, motor running state output and 4-20mA speed control |
| Communication function | RS485 RTU |
| Voltage | AC 3 phase 380V /AC 3 phase 220V |
| Power | 0.37kW |
| Condition environment | 0-40°C, <80%RH |
| Explosion-proof grade | ExdIBT4 |
| IP rate | IP 55 |
Pump Head Parameter
|
Drive
|
Speed(rpm)
|
Pump Head
|
Tubing Size
|
Flow Rate(mL/min)
|
|
EXP600-IV-1/YZ35
|
60-600
|
YZ35
|
26#, 73#, 82#
|
4200-12000
|

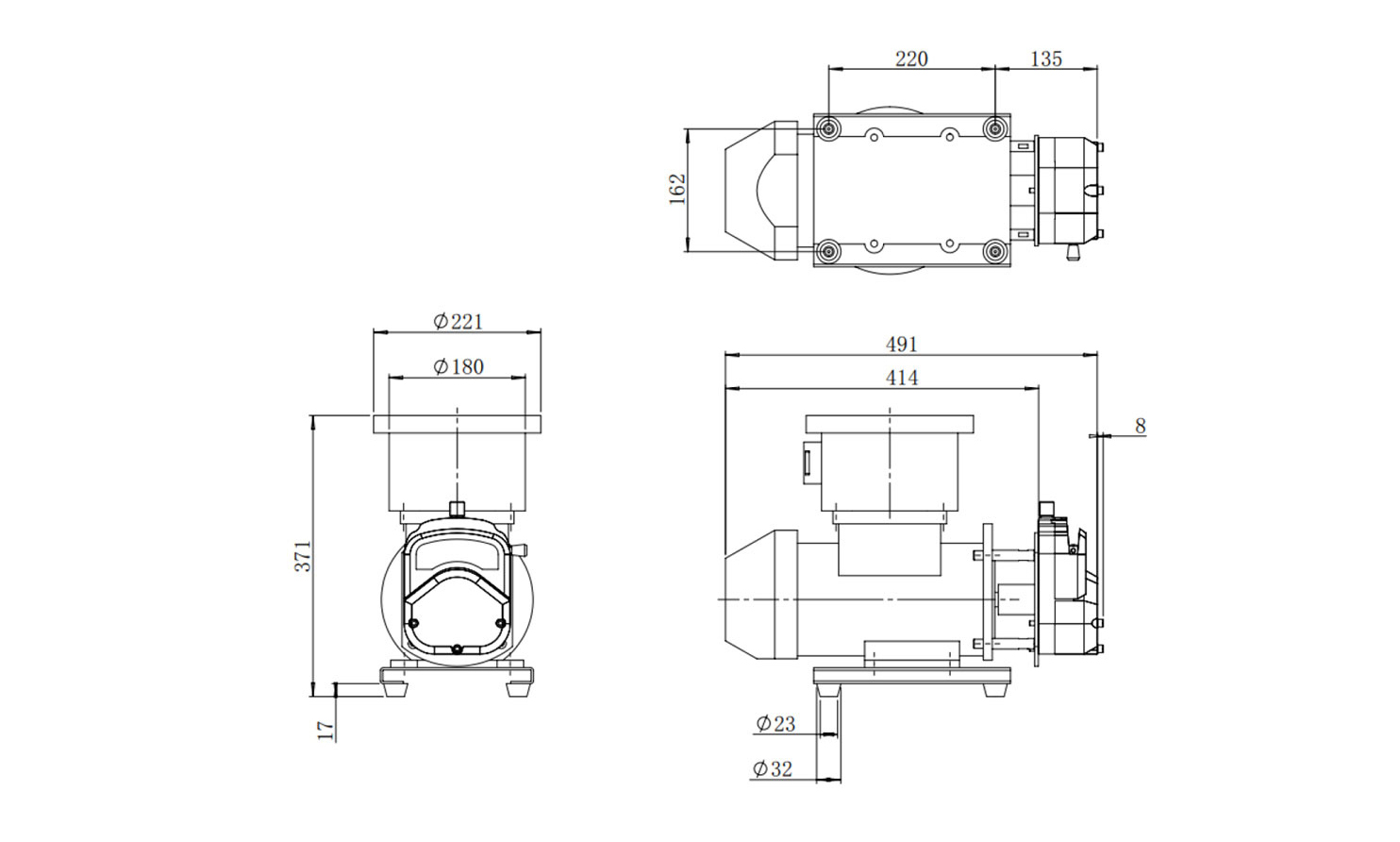

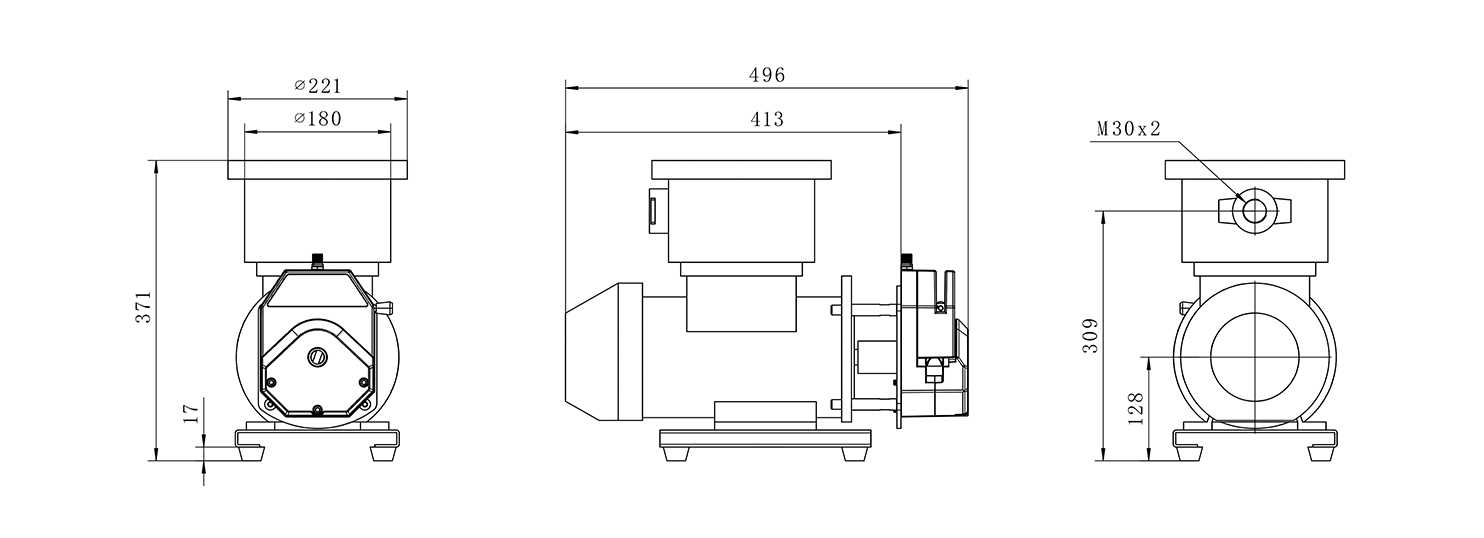

Dimension（Unit：mm）
