It is safe and explosion-proof, and suitable for occasions with potential electrical hazard.
Frequency converter speed regulation, positive and reverse rotation reversible.
Stable flow, high torque, low noise, suitable for various pump heads and hoses.
Two YZ15/25/35 pump heads can be used in series. After the outlet channels are combined. The flow increases, the pulse decreases, and the fluid transmission is more stable.
Technical Parameter
Flow rate(mL/min)
4200-12000mL/min
Speed range
60-600rpm
Speed regulation
Frequency converter speed regulation
Working voltage
Three phase AC380V/Three phase AC220V (choose one from two)
Rated power
0.37Kw
Working environment
Temperature 0-40'C, relative humidity< 80% RH, no condensation
Protection grade
IP55
Motor explosion-proof grade
ExdIBT4
Pump Head Parameter
Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-II-1/YZ35
60-600
YZ35
26#, 73#, 82#
4200-12000

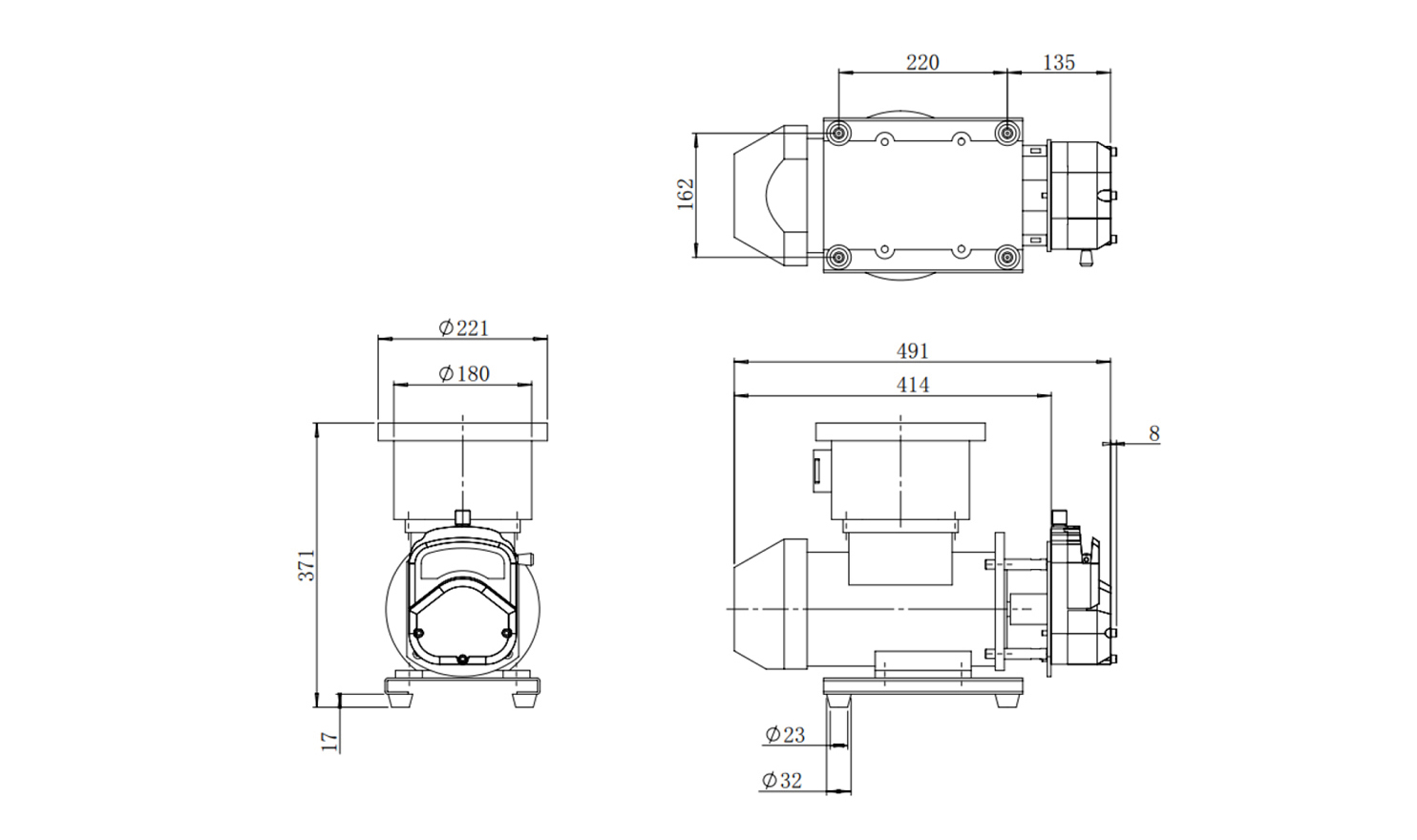

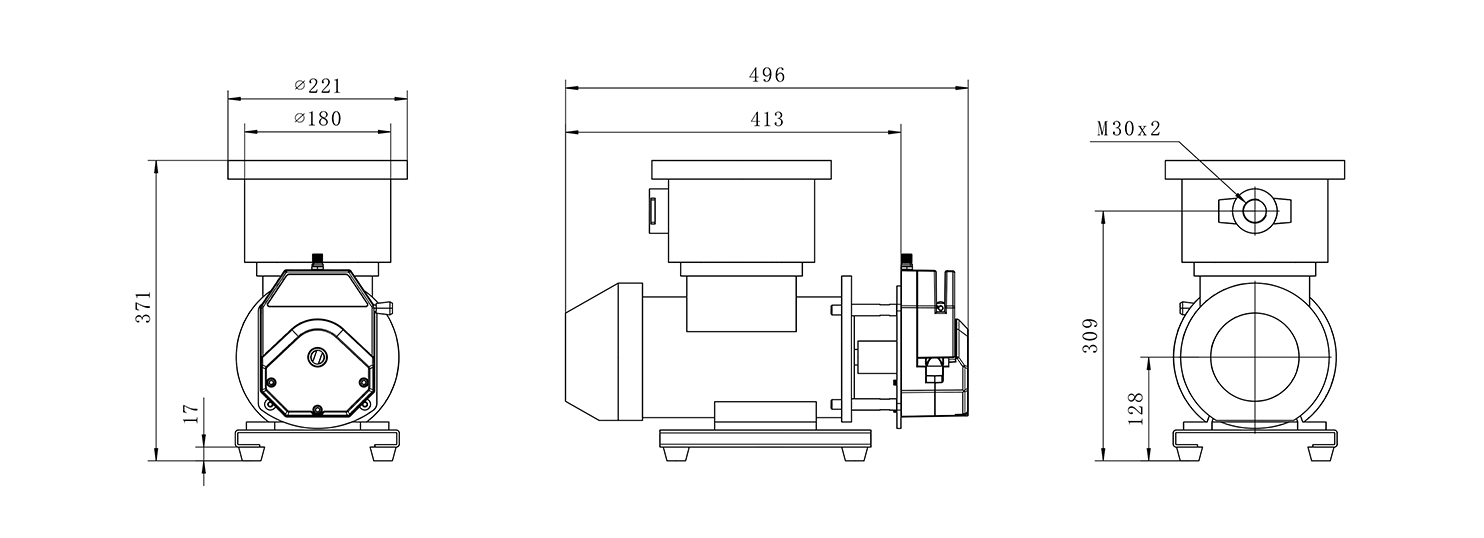

Dimension（Unit：mm）
