It is safe and explosion-proof, and suitable for occasions with potential electrical hazard.
Stable flow, high torque, low noise, suitable for various pump heads and hoses.
Two YZ15/25/35 pump heads can be used in series. After the outlet channels are combined. The flow increases, the pulse decreases, and the fluid transmission is more stable.
Technical Parameter
Flow rate(mL/min)
4200-12000mL/min
Speed range
60-600rpm
Speed regulation
Frequency converter speed regulation(Optional)
Working voltage
Three phase AC380V/Three phase AC220V (choose one from two)
Rated power
0.37Kw
Working environment
Temperature 0-40 'C, relative humidity < 80% RH, no condensation
Protection grade
IP55
Motor explosion-proof grade
ExdIBT4
Pump Head Parameter
Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-III-1/Z35
60-600
YZ35
26#, 73#, 82#
4200-12000

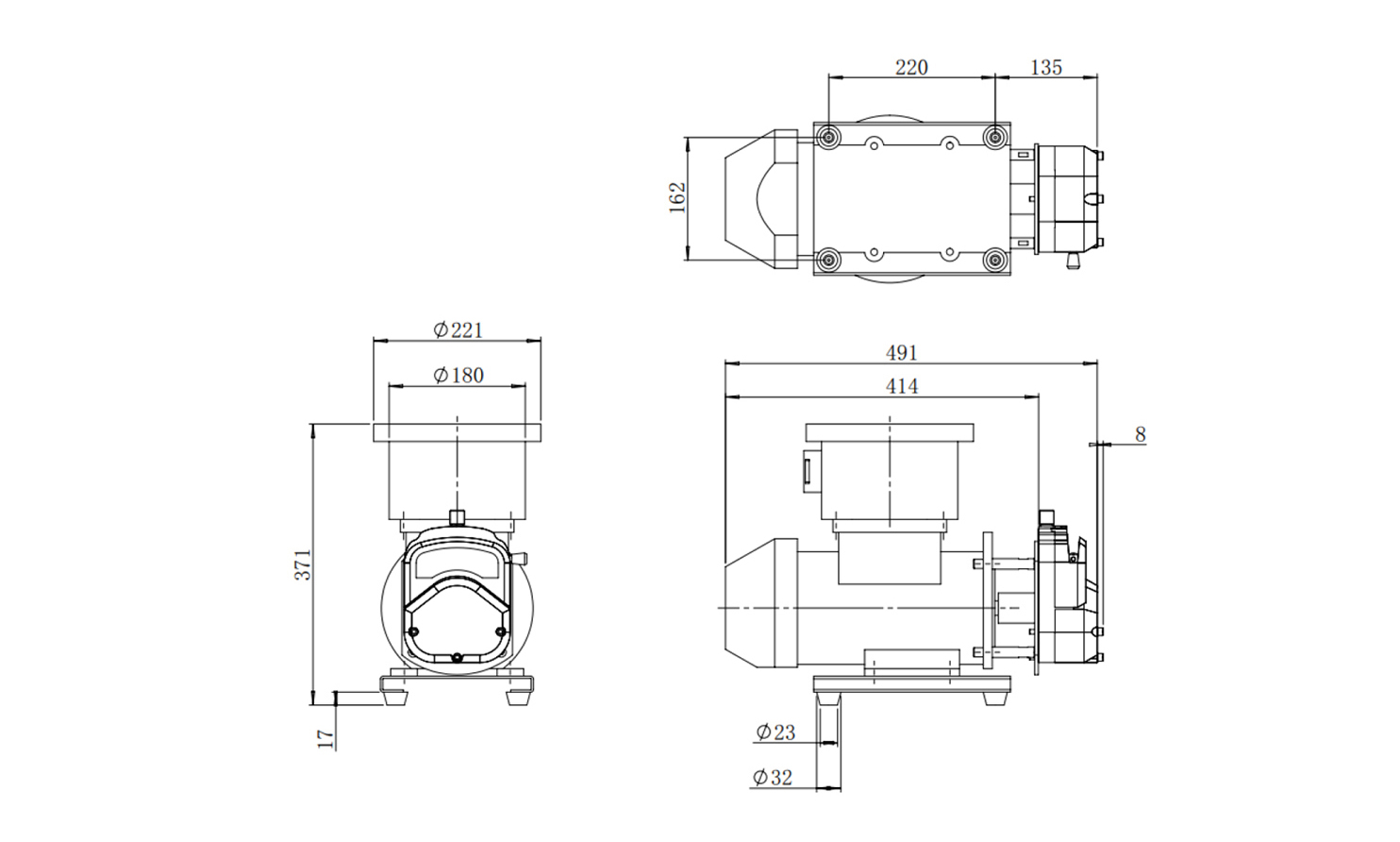

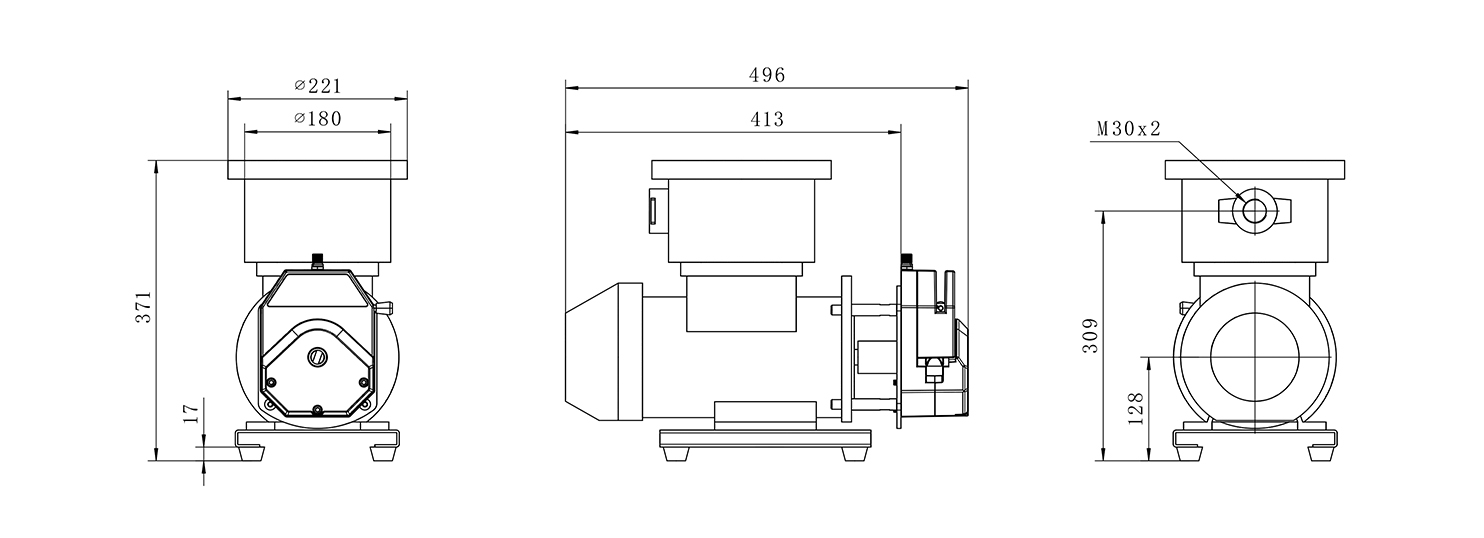

Dimension（Unit：mm）
