Safe explosion proof, suitable for sites where have electric hidden danger.
Stepless speed regulation, reversible.
Stable flow rate, high torque and low noise, suitable for various pump head and tubing.
Can mount 2 pcs pump heads to increase flow rate. Reduce pulsation, more stable to transfer liquid.
Big fow rate design, speed range is 180-600 rpm.
Technical Parameter
Speed range
180-600mL/min
Speed control
Manual stepless speed regulation
Voltage
3 phase 380V(standard)/3 phase 220V(optional)
Drive dimension(LxWxH)
424x230x330(mm)
Drive weight
30kg
Condition temperature
0~40°C
Relative humidity
<80%
Explosion-proof grade
ExdIlBT4 Gb
IP rate
IP55
Pump Head Parameter
Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-1/YZ35(Aluminum Alloy)
180-600
YZ35
26#, 73#, 82#
1242-12000

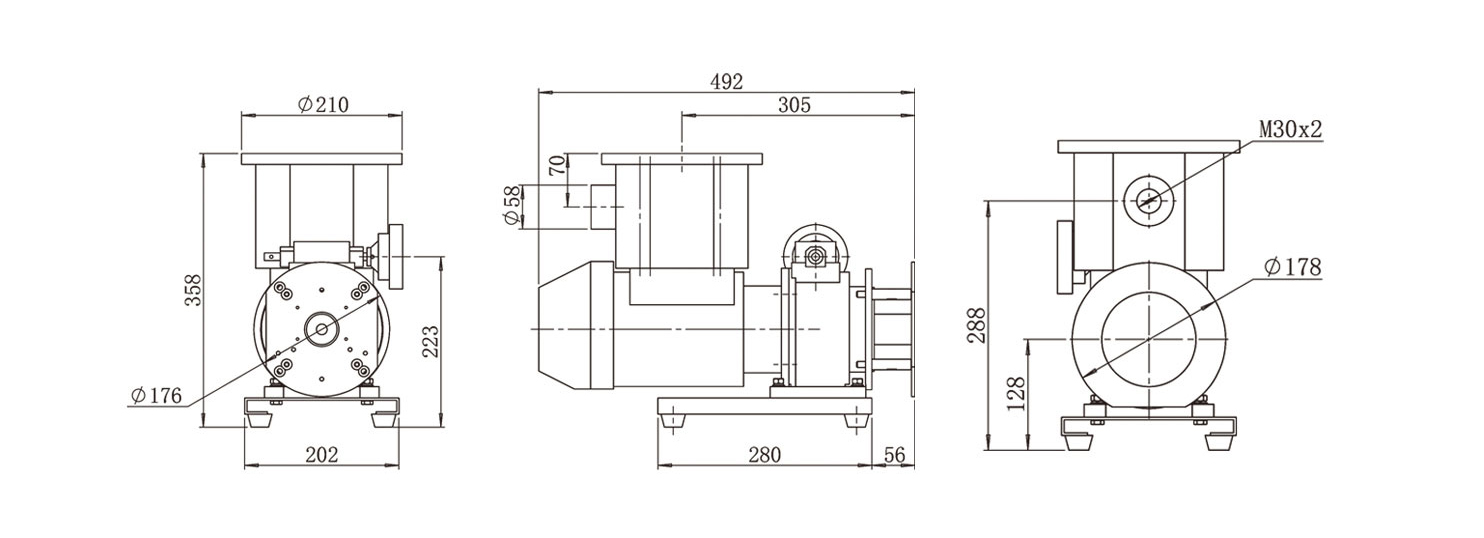

Dimension（Unit：mm）
