Safe explosion proof, suitable for sites where have electric hidden danger.
Stepless speed regulation, reversible.
Stable flow rate, high torque and low noise, suitable for various pump head and tubing.
Big flow rate design, speed range is 60-300 rpm.
Technical Parameter
Speed range
37.5-350rpm
Speed regulation
Frequency converter speed regulation
Voltage
3 phase 380V(standard)/3 phase 220V(optional)
Drive dimension(LxWxH)
400x325x245(mm)
Rated power
0.55kW
Condition temperature
0-40°C
Relative humidity
<80%
Explosion-proof grade
ExdIIBT4
IP rate
IP55
Pump Head Parameter
Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(L/min)
EXP300-III-1/DZ45
37.5-350
DZ45
88#, 92#
1.0-28.15

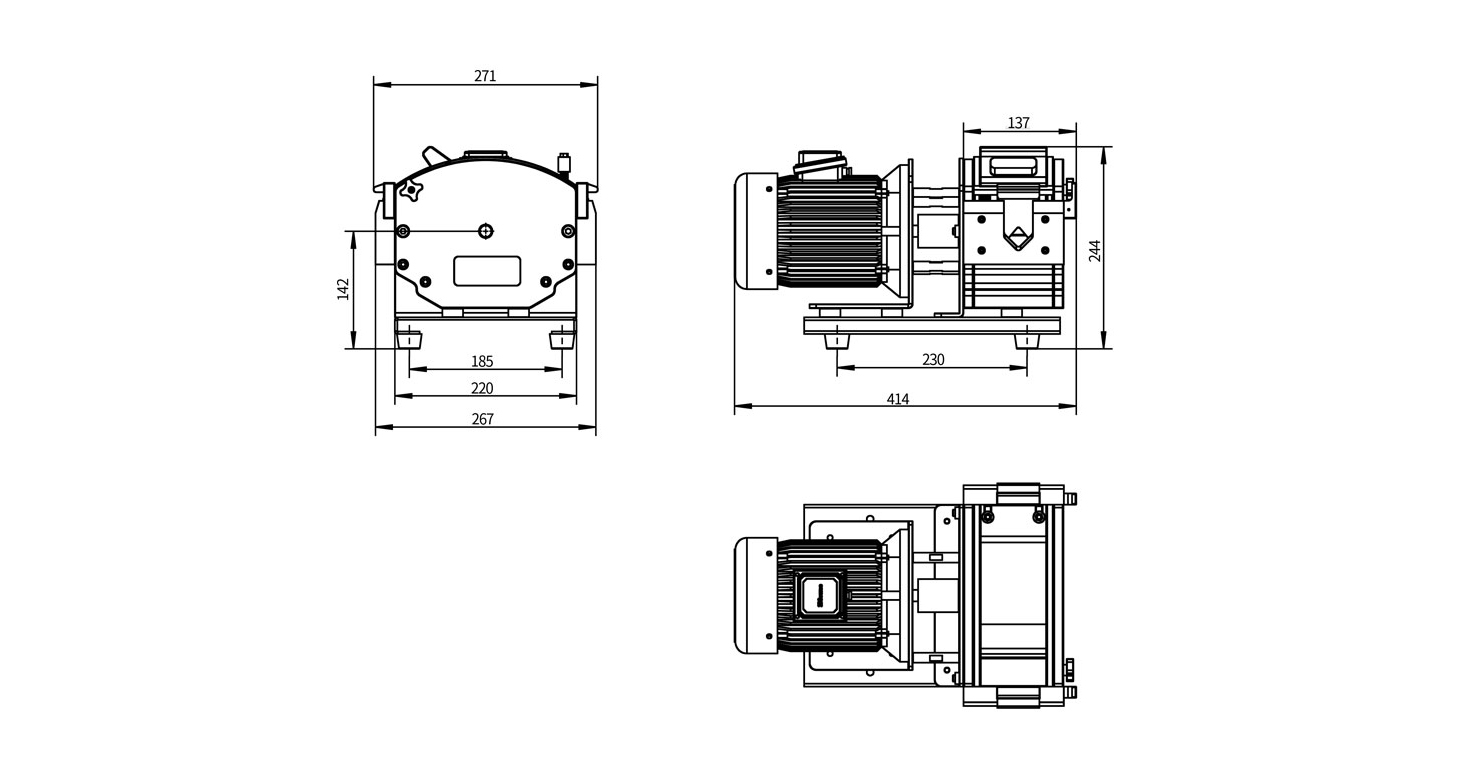

Dimension（Unit：mm）
