BT100M

1-150 rpm

0.07-570 mL/min

Optional pump head：

YZ1515x

YZ2515x

Online consultation

Download

Product Introduction

Ultra-quiet drive design, precision control, little vibration and noise.
Plastic-coated metal housing, compact structure.
Timing function, time range 0.5s-999s, can be used for simple dispensing.
RS232, RS485 communication interface. Supports Shenchen communication protocol or standard Modbus communication protocol (RTU mode).

Flow rate range	0.00166-570mL/min
Speed range	1-150rpm
Speed resolution	0.1rpm (0-100rpm), 1rpm (100-600rpm)
Outlet pressure	0.1MPa (0.8-1.0mm wall thickness tubing); 0.1-0.27MPa (1.6-2.4mm wall thickness tubing)
Back suction angle	0-360°(optional)

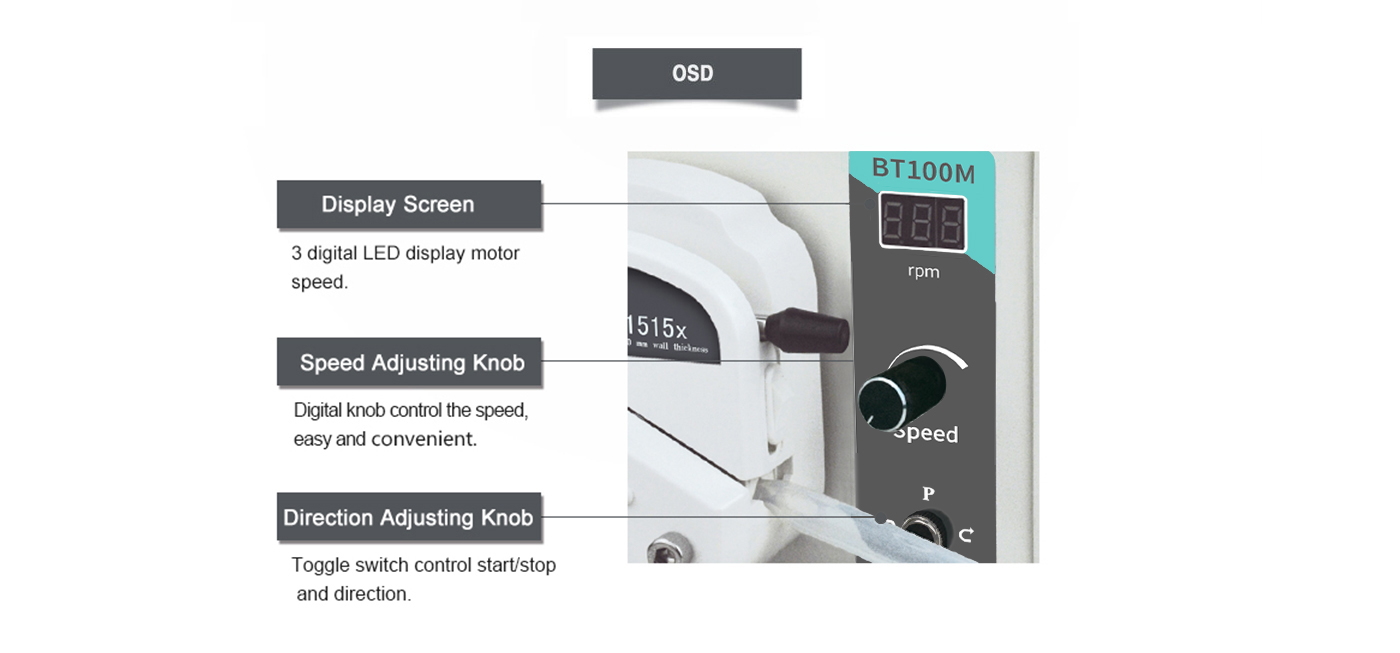

Display	3-digit digital LED
Control method	Toggle switch + Rotary encoder switch
Keypad lifetime	300,000 times
External speed control signal	0-5V, 0-10V, 4-20mA optional
Start/stop signal	TTL level signal
Communication interface	RS485(optional), Modbus protocol(RTU mode)
Power supply	AC 220V±10% 50Hz/60Hz(standard), AC 110V±10% 50Hz/60Hz(optional)
Drive dimension(L×W×H)	236×144×143mm
Drive weight	3.60kg
Power consumption	<50W
Condition temperature	0-40℃
Relative humidity	<80%
IP rating	IP31

Drive	Pump Head	Tubing Size	Speed	Flow Rate(mL/min)
BT100M	YZ1515x	13#，14#，19#，16#，25#，17#，18#	1-150rpm	0.07-570
	YZ2515x	15#，24#		1.7-435
	MC1-MC12(10)	Diameter：0.13-3.17mm Wall thickness：0.8-1mm		0.00166-49(suggestionworking speed≤150rpm)
	MC1-MC12(6)	Diameter：0.13-3.17mm Wall thickness：0.8-1mm		0.00185-65(suggestionworking speed≤150rpm)

Change the tubing easily and rapidly; automatic tubing retention; accept 9 sizes tubing to meet different flow-rate requests.
Two kinds of material housing for customers' selection. PSF (polysulphone material): white, exquisite appearance, good rigidity, high precision, usually used in research laboratory and supporting analytical device. PPS (polyphenylene sulfide material): black, resistant to organic solvent corrosion, high precision and rigidity, suitable for industry or other harsh working conditions.
Roller assembly with 304 stainless steel material, corrosion-resistant with long lifetime.
