M6-12L
- Speed range：0.1-600 rpm
- Flow range：0.69-12000 mL/min
Optional pump head：
YZ35
- Product Introduction
- Technical Parameter
- Pump Head Parameter
- OSD
- Dimension
Product Introduction
- Closed-loop stepper motor drive, precise control, strong power, low vibration and low noise.
- 3-digit digital LED display of motor speed, rotary encoder switch control.
- Suitable for industrial sites, transferring liquid with large flow and high precision.
- 304 stainless steel housing, conforming to GMP requirements. Also, adopting seamless welding techniques, avoiding the liquid leaking into the pump housing, protecting the internal circuit effectively.
- Circuit board sprayed with three paints, anti-dust, anti-moisture, anti-static, resisting corrosion.
Technical Parameter
| Flow rate range | 0.69-12000mL/min |
| Speed range | 0.1-600rpm |
| Speed resolution | 0-100rpm, 0.1rpm; 100-600rpm, 1rpm |
| Flow rate accuracy | <±0.5% |
| Motor type | Closed-loop stepper motor |
| Display | 3-digit digital LED |
| Control method | Mechanical keypad |
| Keypad lifetime | 300,000 times |
| Speed control | Rotary encoder switch |
| External speed control signal | 0-5V(standard), 0-10V, 4-20mA(optional) |
| Start/stop, direction signal | Passive switch signal, such as foot pedal, Active switch signal: 24V default |
| Communication interface | RS232(standard), Shenzhen-N232 communication protocol; RS485(optional), Modbus protocol(RTU mode) |
| Power supply | AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional) |
| Drive dimension(L×W×H) | 283×192×274 mm |
| Drive weight | 7.85kg |
| Power consumption | <300W |
| Condition temperature | 0-40℃ |
| Relative humidity | <80% |
Pump Head Parameter
| Drive | Motor Type | Pump Head | Tubing Size | Speed range(rpm) | Flow rate(mL/min) |
| M6-12L | Closed-loop stepper motor | YZ35 | 26#，73#，82# | 0.1-600 | 0.69-12000 |
OSD

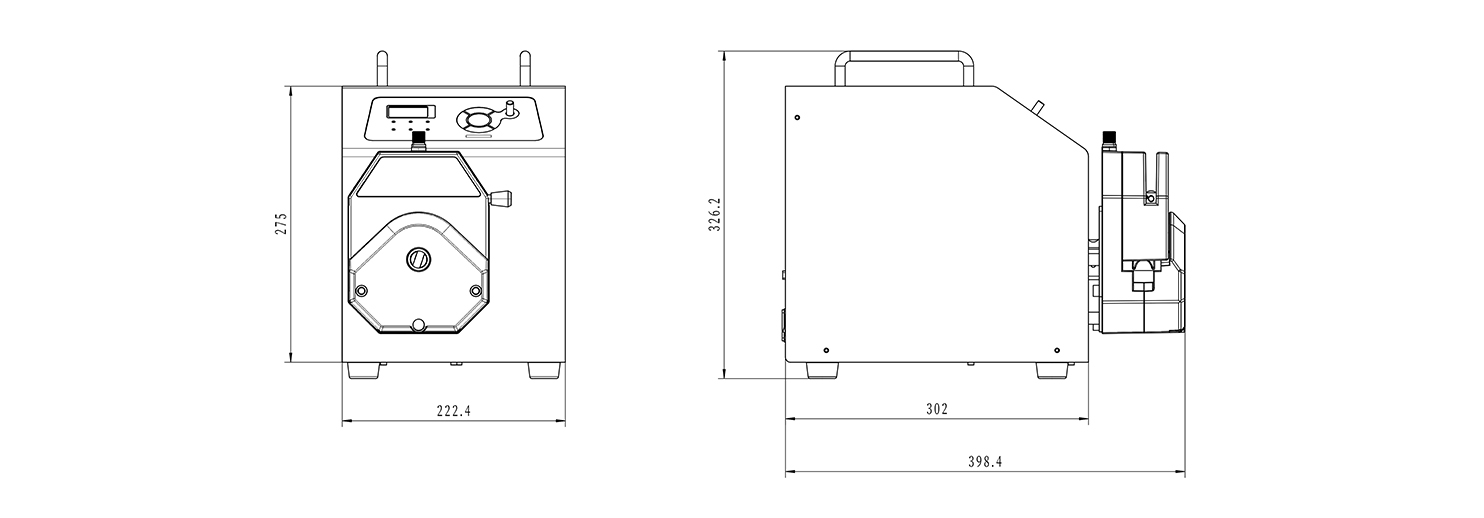

Dimension（Unit：mm）
