V6-12L
    Speed range：0.1-600 rpm
    Flow range：0.69-12000 mL/min
Optional pump head：
YZ35
Online consultation
Download

Product Introduction

  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adiusting function, can be in the case of not stop, adiust the flow, eliminate the error.
  • 304 SS stainless steel.
  • Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.

Technical Parameter

Flow rate range 0.69~12000 mL/min
Speed range 0.1-600 rpm
Speed resolution 0.01 rpm
Flow rate resolution 0.01 mL
Dispensing volume 0.01-9999mL
Volume resolution 0.01mL
Dispensing time 0.1-9999s
Pause time 0.1-9999s
Time resolution 0.01s
Repeat number 1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy < ±0.5%
Back suction angle 0-360°
Motor type Closed-loop stepper motor
Display Industrial grade 4.3" color LCD display
Control method Touch screen and mechanical keypad
Keypad lifetime 300,000 times
External speed control signal 0-5V, 0-10V, 4-20mA
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V universal
Communication interface RS232, RS485 support MODBUS protocol (RTU mode)
Output interface Output motor working status (Open-Collector output)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension 302×222×275 mm
Drive weight 13.14 kg
Power consumption < 300W
Environment temperature 0-40℃
Relative humidity < 80%

Pump Head Parameter

Pump
Head		 Tubing ID×Wall thickness
(mm)		 mL/r Flow rate(mL/min)
(0.1-600rpm)		 Tubing pressure resistance(Mpa) Material Weight(kg)
Continuous Intermittent
YZ35-II 26# 6.4×3.3 6.9 0.69-4200 0.27 0.2 Cast aluminum alloy 2.8
73# 9.6×3.3 12.3 1.23-7400 0.27 0.2
82# 12.7×3.3 20 2-12000 0.14 0.1

Pump Head
 Tubing Filling Volume(mL) Filling Time(s) Accuracy(±%) Output(pcs/min) Motor Speed(rpm)
YZ35-II 26 50 1 0.5 30 434.78
26 100 2 0.5 20 434.78
73 100 1.2 0.5 27 406.50
73 150 2 0.5 20 365.85
82 200 1.5 0.5 24 400.00
2*YZ35-II 73 100 1.2 0.5 27 203.25
73 200 1.5 0.5 24 235.20
82 500 2 0.5 20 375.00

OSD

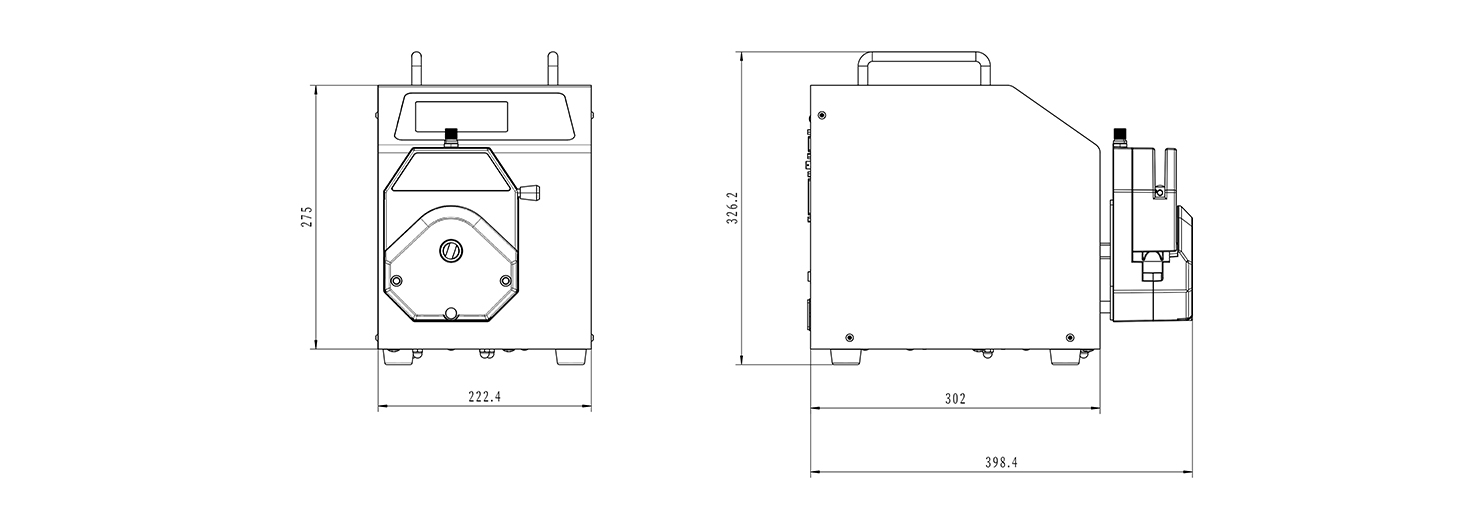

Dimension（Unit：mm）
