HPM600-SS/EasyPump
5-Year Warranty
- Speed range：0.1-600 rpm
- Flow range：0.0053-3100 mL/min
Optional pump head：
EasyPump
- Product Introduction
- Technical Parameter
- Pump Head Parameter
- OSD
- Dimension
Product Introduction
- Equipped with a 4.3-inch color LCD touchscreen.
- Features real-time animation to display current operating status.
- Flow rate data, preset parameters, and system configurations are all displayed on a single screen.
- Built-in smart calibration function.
- Supports multiple external control modes to easily meet remote operation requirements.
- Features a three-level user authority management system.
- The external control interface features internal and external circuit isolation, minimizing electromagnetic interference and accidental damage to ensure the safe operation of the main control system and connected equipment.
- Designed to meet GMP certification requirements; the stainless steel housing is sleek, easy to clean, and simple to disinfect.
- The entire unit features an IP66 protection rating, ensuring long-term stable operation.
- Includes an "Lid open stop" function, preventing accidental operation and ensuring user safety.
Technical Parameter
| EMC Standard | IEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3 |
| Housing material | Stainless Steel 304 |
| Speed range | 0.1-600 rpm |
| Speed adjustment resolution | 0.01 rpm |
| Display | 4.3-inch industrial-grade color LCD screen |
| Control modes | Touch screen, mechanical keypad, external control signal control, communication control |
| Working modes | Transferring mode, dispensing mode (Fixed volume, dispensing, speed dispensing) |
| Transferring mode | Continuous operation at set flow rate and speed |
| Dispensing mode | Dispensing:Set volume, time, repeat numbers, pause time Dispensing:Set volume, flow rate, repeat numbers, pause time Speed dispensing:Set speed (rpm), time, repeat numbers, pause time |
| Dispensing volume range | 0.1ml-9999L |
| Dispensing time range | 0.1s-9999h |
| Pause time range | 0.5s-9999h |
| Repeat numbers | 1-9999 times, 0 means unlimited times |
| Calibration | Automatic calibration after inputting actual running liquid volume |
| Back suction angle | 0-360° |
| Communication interface | RS485 |
| Communication protocol | Modbus protocol (RTU mode) |
| External control speed signal | 0-5V, 0-10V, 4-20mA (optional) |
| External control signal input | Active switch signal (5-24V) controls start/stop, direction; Passive switch signal controls start/stop |
| Signal output | Open collector output operation status; 4-20mA output |
| Open cover to stop pump function | Prevent misoperation and effectively protect user safety(Depend on pump head) |
| Three levels of permissions | Reasonable configuration of operation permissions |
| Drive dimension | 268mm*162mm*223mm(L×W×H) |
| Power supply | AC110-220V±10% 50/60Hz |
| Rated power | 11.5W |
| Working environment | 0-40°C |
| Drive weight | 6.2kg |
| Relative humidity | <100% |
| Protection level | IP66 |
Pump Head Parameter
| Pump Head | Tubing Size | Speed | Flow rate(mL/min) |
| EasyPump I/III | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.1-600rpm | 0.0053-2580 |
| EasyPump II/IV | 15#, 24#, 35#, 36# | 0.18-3100 | |
| EasyPump V/VI | 13#, 14#, 19#, 16#, 25# | 0.0053-1180 |

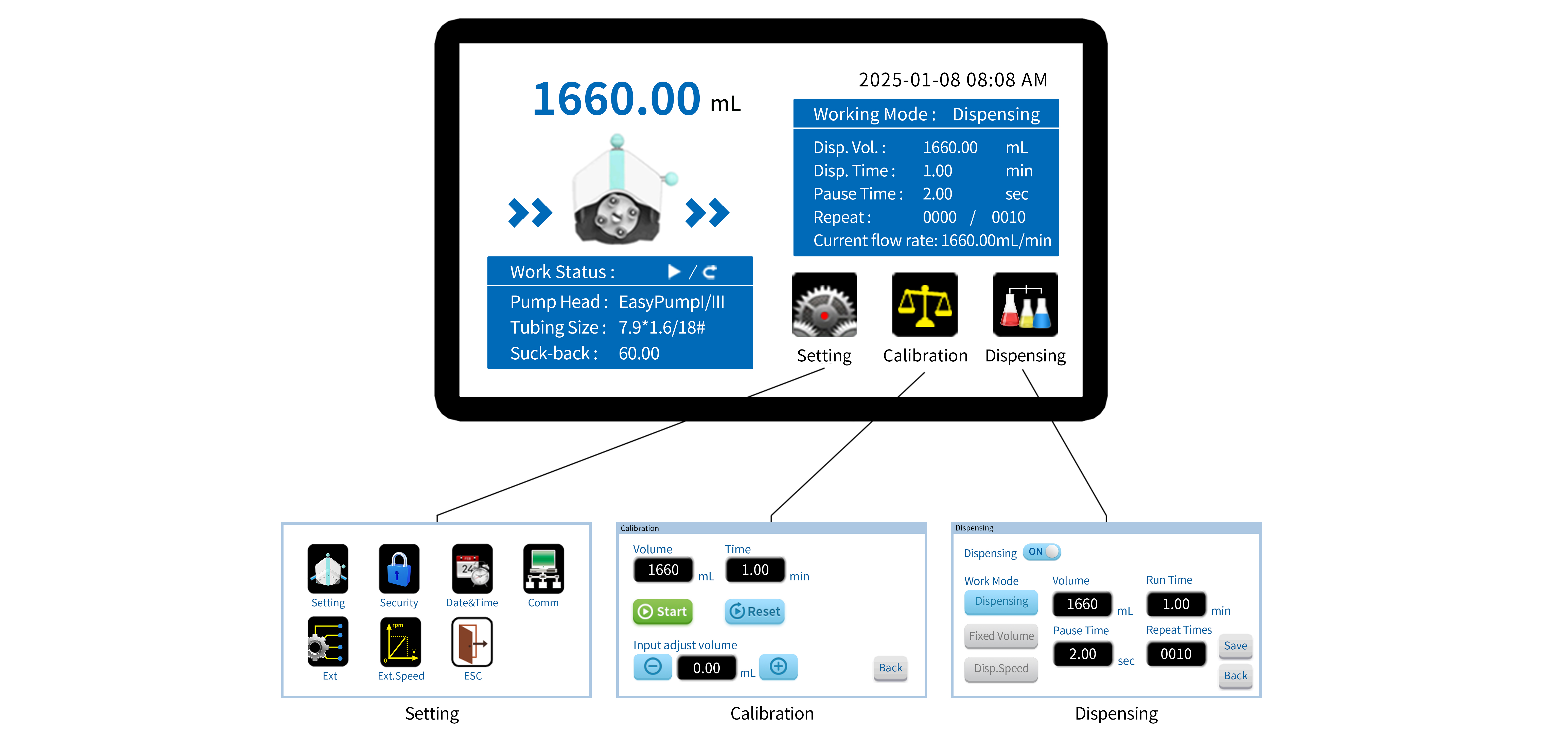

OSD

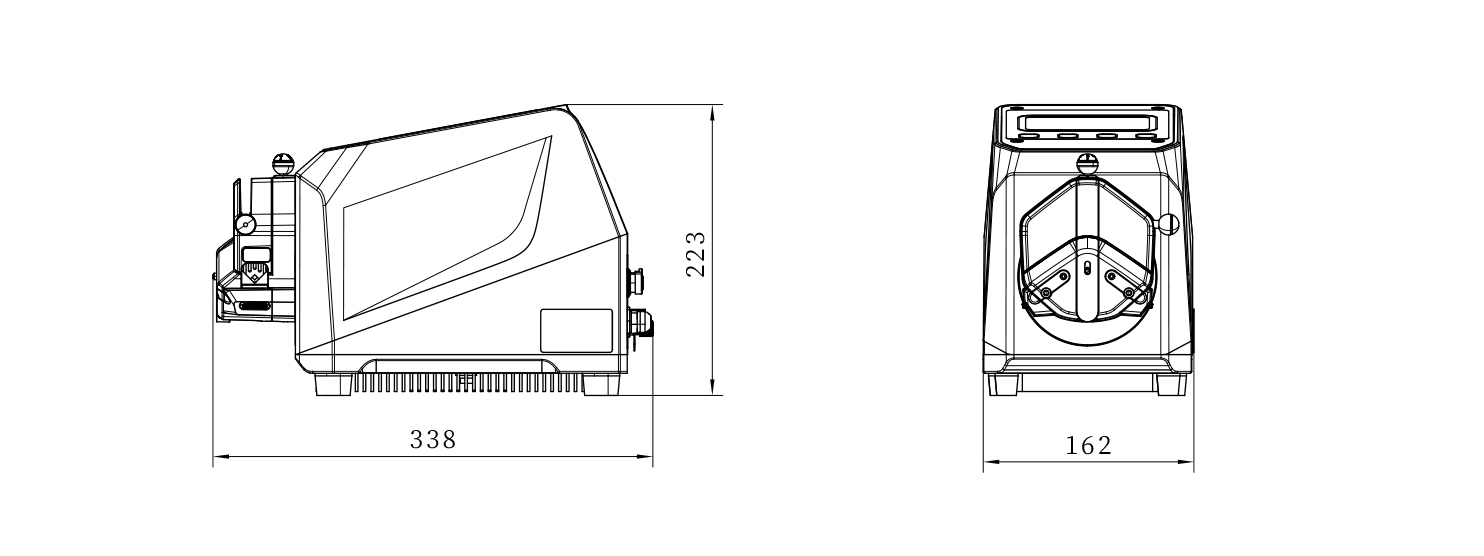

Dimension（Unit：mm）
