LabV-III series KD15/KD25
3-Year Warranty
    Speed range：0.1-600rpm
    Flow range：0.0079-3027.97mL/min
Optional pump head：
KD15/KD25
Online consultation
Download

Product Introduction

  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adjusting function, can be in the case of not stop, adjust the flow, eliminate the error.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.

Technical Parameter

Drive
LabV1-III
LabV3-III
LabV6-III
Speed range
0.1-150rpm
0.1-350rpm
0.1-600rpm
Flow rate range
0.0079-756.99mL/min
0.0079-1766.31mL/min
0.0079-3027.97mL/min
Flow rate resolution
0.01mL/min
Speed resolutio
0.01rpm
Dispensing volume
0.01-9999mL
Volume resolution
0.01mL
Dispensing time
0.1-9999s
Pause time
0.1-9999s
Time resolution
0.01s
Repeat number
1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy
<±0.5%
Back suction angle
0-360°
Motor type
Stepper motor
Display
4.3 inch-industrial grade-True color LCD screen
Control method
Touch screen and Mechanical keypad
Keypad lifetime
300,000 times
External control signal
0-5V.0-10V,4-20mA foroption
Start/stop,change direction signa
Passive switch signal,such as:foot pedal switch,Active switch signal:5V-24V
Communication interface
RS232,RS485 support MODBuS protocol(RTU mode)
Outputinterface
Output motor working status(Open-Collector output)
Power supply
AC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension (LxWxH)
259x157x237(LxWxH)
Drive Weight
4.40kg
Power consumption
<80W
condition temperature
0-40°C
Relative humidity
<80%

Pump Head Parameter

Pump Head
 Tubing lDxWall thickness(mm) Flow Rate(L/min)
(3 rollers, 0.1-600rpm)		 Flow Rate(L/min)
(4 rollers, 0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
KD15 13# 0.8x1.6 0.0083-50.3 0.0079-47.37 0.27 0.17 0.37
14# 1.6x1.6 0.0281-168.4 0.0267-160.37
19# 2.4x1.6 0.0613-367.97 0.0544-326.13
16# 3.2x1.6 0.1006-603.5 0.0942-565.47
25# 4.8x1.6 0.2243-1345.83 0.2103-1262 0.24 0.14
17# 6.4x1.6 0.3297-1978.1 0.2915-1748.93 0.14 0.10
18# 7.9x1.6 0.5047-3027.97 0.4483-2690 0.10 0.07
KD25 15# 4.8x2.4 0.2513-1507.6 0.1979-1187.55 0.27 0.17
24# 6.4x2.4 0.3912-2346.95 0.2909-1745.5

OSD

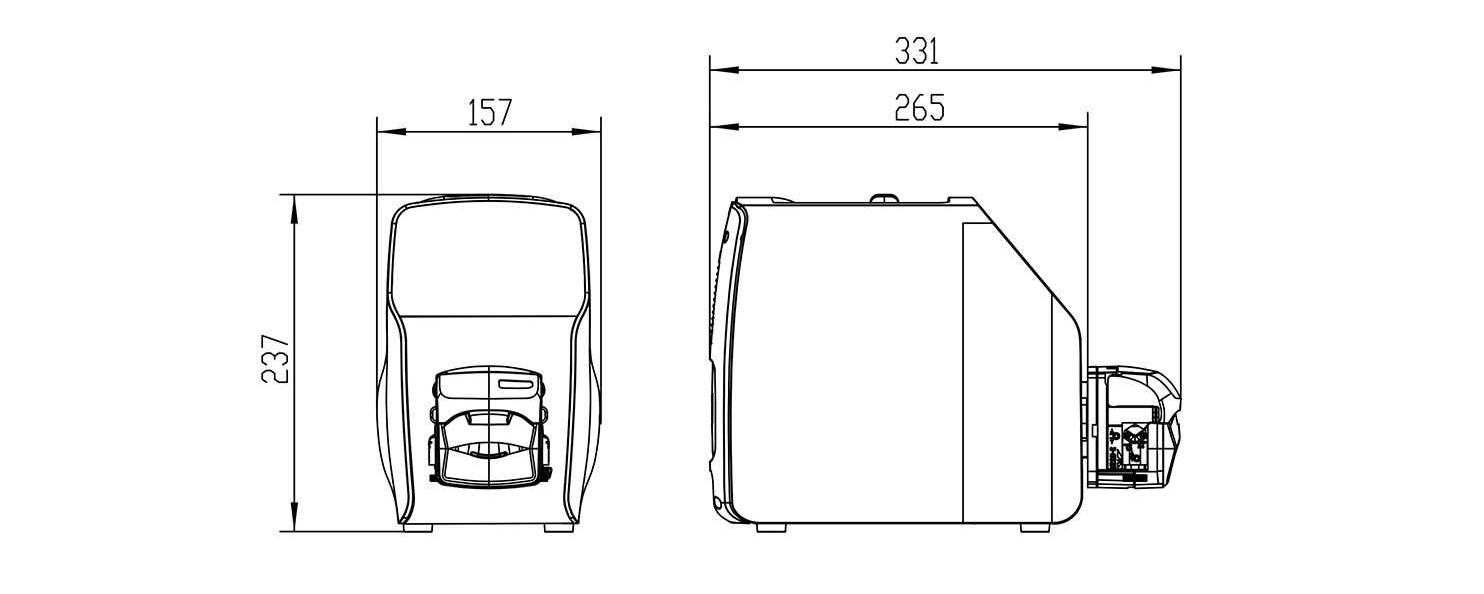

Dimension（Unit：mm）
