CF600 Plus IV
3-Year Warranty
    Speed range：0.1-600 rpm
    Flow range：0.69-12000 mL/min
Optional pump head：
YZ35
Online consultation
Download

Product Introduction

CF600 PlusIV is integrated type filling system with low driven by servo motor. One controller control 8 groups, each groups with 8 filling units, total 32 filling units. 4.3" true color display with touch screen control. Using YZ35 high flow rate pump head. Filling accuracy up to 0.5%-1%. Touch screen control, can preset filling volume, filling time, pause time, copy numbers and back suction angle. Dynamic display the working status, filling data, setting parameters and system configuration. Intelligent calibration and micro adjusting function. Industry application: Support Pharmaceutical machine, filling machine, Pharmaceutical, cosmetic, food, beverage dispensing.

Technical Parameter

Speed range 0.1-600rpm
Filling volume range 0.1-9999.99 mL
Filling time range 0.1-9999.99 s
Pause time range 0.5-9999.99 s
Filling volume resolution 0.01 mL
Time resolution 0.01 s
Copy numbers 1-9999 times, setting "0" means unlimited
Back suction angle 0-3600°
Dispensing accuracy <±0.5%
Motor type Closed-loop stepper motor
Display 4.3" industrial grade true color LCD screen
Control method Touch screen and mechanical keypad
Keypad lifetime 300,000 times
Start/stop,direction Passive switch signal, such as foot pedal; Active switch signal: 5-24V universal
Output interface Output motor working status (open-collector output)
Communication interface RS485 communication Modbus protocol (RTU mode)
Power supply AC 220V±10% 50Hz/60Hz (standard); AC 110V±10% 50Hz/60Hz (optional)
Drive dimension 310×228×248 mm(L×W×H)
Drive weight 11.9 kg
Power consumption Each filling unit <300W
Condition temperature 0-40℃
Relative humidity <80%

Parameter

Product Composition and Flow Rate Range


Drive Pump Head Housing material Tube clamp/connector material Tubing （Motor speed 0.1-600rpm）
Flow rate range mL/min
Tubing size ID×Wall thickness(mm)
CF600 Plus IV YZ35-PPS PPS PP 26# 6.4×3.3 0.69-4200
73# 9.6×3.3 1.23-7400
82# 12.7×3.3 2-12000


Filling Volume Reference (Media is water)


Drive Pump Head Tubing Filling Volume（mL） Filling Time（s） Accuracy（±%） Output（pcs/min） Motor Speed（rpm）
CF600 Plus IV YZ35-PPS 26# 50 1 0.5 30 434.78
26# 100 2 20 434.78
73# 100 1.2 27 406.50
73# 150 2 20 365.85
82# 200 1.5 24 400.00
2*YZ35 26# 100 1.2 27 203.25
73# 200 1.5 24 325.20
82# 500 2 20 375.00

OSD

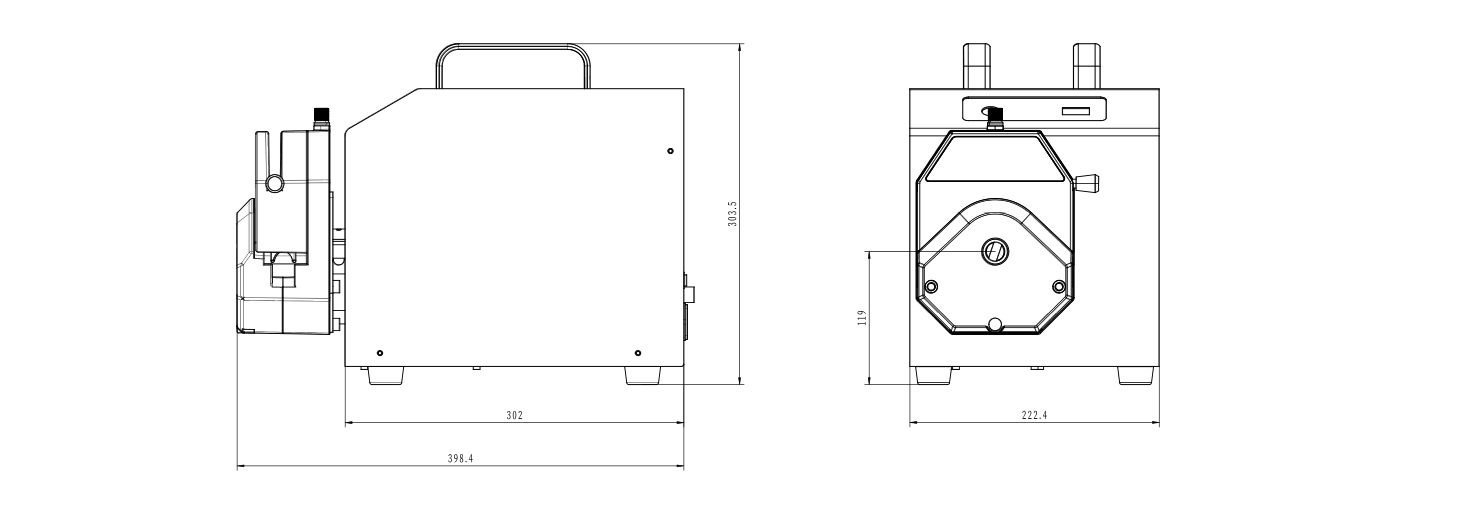

Dimension（Unit：mm）
