LabM1-III
3-Year Warranty
    Speed range：0.1-150rpm
    Flow range：0.0053-775mL/min
Optional pump head：
EasyPump
Online consultation
Download

Product Introduction

  • 3 digital LED display motor speed, mechanical keypad control, multiple external control for selection.
  • Timing function, the time range of 0.5 seconds -999 seconds can be used as a simple dispensing.
  • Timing function, can be used for simple dispense. Has both RS232 and RS485 communication mode.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Full speed button: with full filling and emptying function.

Technical Parameter

Flow rate range 0.0053-775mL/min
Speed range 0.1-150rpm
Speed resolution 0.1 rpm
Testing time range 0.5s-999s
Outlet pressure 0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa (1.6-2.4mm wall thickness tubing)
Back suction angle 0-360°
Display 3 digital LED
Control method Mechanical keypad
Keypad lifetime 300,000 times
External control speed signal 0-5V,0-10V,4-20mA for option
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal, default 24V
Communication interface RS232/RS485 support MODBUS protocol (RTU mode)
Power supply AC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension 323x157x237(LxWxH)
Drive weight 4.40kg
Power consumption <80W
Environment temperature 0-40℃
Relative humidity <80%
IP rate IP31

Pump Head Parameter

Pump Head Tubing lDxWall
thickness(mm)		 mL/r Flow Rate(mL/min)
(0.1-150rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III 		 13# 0.8x1.6 0.053 0.0053-8 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-41
19# 2.4x1.6 0.55 0.055-83
16# 3.2x1.6 0.933 0.0933-140
25# 4.8x1.6 1.967 0.1967-295 0.24 0.14
17# 6.4x1.6 3.333 0.3333-500 0.14 0.10
18# 7.9x1.6 4.3 0.43-645 0.10 0.07
Single Channel
EasyPump II/IV
 15# 4.8x2.4 1.8 0.18-270 0.27 0.17
24# 6.4x2.4 2.733 0.2733-410
35# 7.9x2.4 3.833 0.3833-575 0.24 0.14
36# 9.6x2.4 5.167 0.5167-775
Dual Channel
EasyPump V/VI 		 13# 0.8x1.6 0.053 0.0053-8 0.27 0.17
14# 1.6x1.6 0.27 0.027-41
19# 2.4x1.6 0.55 0.055-83
16# 3.2x1.6 0.933 0.0933-140
25# 4.8x1.6 1.967 0.1967-295 0.24 0.14

OSD

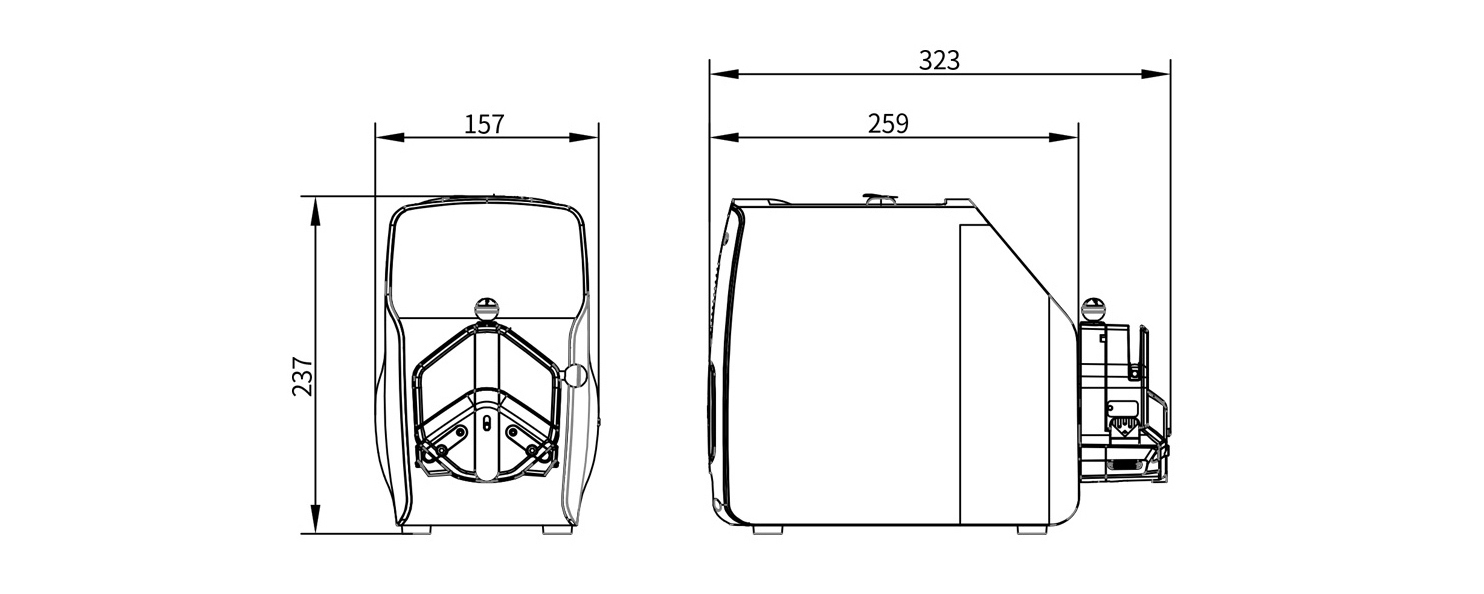

Dimension（Unit：mm）
