1. Home
  2. Laboratory Peristaltic Pump
  3. Compact Peristaltic Pump
LabK/MicroPump
3-Year Warranty
    Speed range：0.1-150rpm
    Flow range：0.004-63.96mL/min
Optional pump head：
MicroPump
Online consultation
Download

Product Introduction

  • Low power consumption, mute working.
  • Stable flow rate and suitable for continuous dosing applications.
  • Easy to replace long life PharMed tubing.
  • Digital knob control speed, memory back up, user setting saved if power lost.

Technical Parameter

Flow rate range 0.004-63.96mL/min
Speed range 0.1-150rpm,reversible
Speed resolution 0.1rpm
Speed control Digital knob
Control method Mechanical keypad
Keypad lifetime 300,000 times
Display OLED
Communication interface RS485 support MODBUS protocol
External control 0-5V,4-20mA(standard),0-10V (opional)
Power supply DC 24V/1A with power adapter
Drive dimension 180x115x125mm(LxWxH)
Weight 800g
Condition temperature 0-40°C
Relative humidity <80%
IP rate IP31

Pump Head Parameter

Model
 Pump Head Speed(rpm)
Tubing Size
Flow Rate Range(mL/min)
LabK
MicroPump
0.1-150rpm
1×1
0.004-6.38
2×1
0.014-21.45
3×1
0.031-47.26
4×1
0.042-63.96

OSD

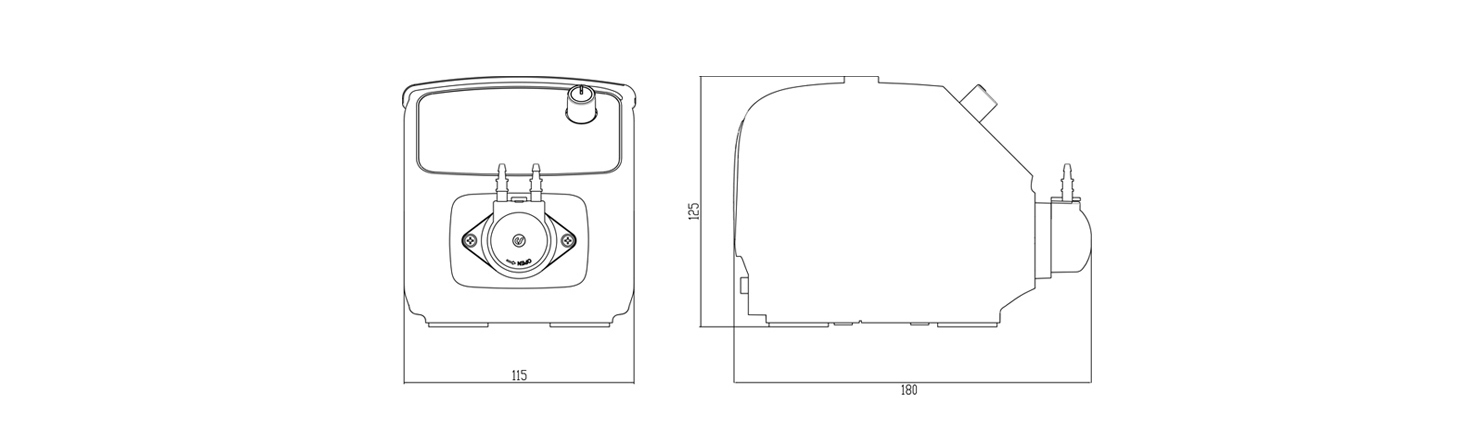

Dimension（Unit：mm）

Video Tutorials

Installation Demonstration
Operation Demonstration
Installation Demonstration
Operation Demonstration
