LabQ/KT15
3-Year Warranty
    Speed range：0.1-350rpm
    Flow range：0.0033-326.55mL/min
Optional pump head：
KT15
Online consultation
Download

Product Introduction

  • 2.4 inch true color LCD screen display.
  • Super silent drive setting, precise control, low vibration and low noise.
  • Mechanical keypad control, menu interface, convenient for users setting the parameters.
  • Digital rotary knob is convenient for speed regulation and easy to operate.
  • Various external control functions, support 0-5V, 0-10V, 4-20mA analog signals control speed.
  • Power down memory function, store parameters in time, safe and reliable.
  • Strong anti-jamming feature, wide voltage design, suitable for complex working environment.
  • Fast fluid-filled function, not only can clean the tubing, but also fill liquid into the tubing.

Technical Parameter

Speed range 0.1-350rpm
Speed resolution 0.1rpm
Control method Mechanical keypad and Knob speed
Display 2.4 inch LCD screen
External speed control signal 0-5V, 0-10V, 4-20mA
Output interface Open-collector output
Relative humidity <80%
Power consumption <30W
Power supply Output:(24V/1.25A),Input:AC100V-240V, 50Hz/60Hz
Communication interface RS485 support Modbus protocol (RTU mode)
Dimension(L*W*H) 188*128*135mm
Weight 1.1kg
Start/stop, reversing signal Switch signal( The default is passive signal, a active signal is optional)
Temperature 0-40°C
IP rate IP31

Pump Head Parameter

Model Channel number Tubing size ID*Wall Thickness (mm) mL/r (0.1-350rpm)
Flow rate(mL/min)		 Weight(kg)
LabQ-KT15 Single channel 13# 0.8x1.6 0.033 0.0033-11.55 1.1
14# 1.6x1.6 0.156 0.0156-54.60
19# 2.4x1.6 0.286 0.0286-100.10
16# 3.2x1.6 0.477 0.0477-166.95
25# 4.8x1.6 0.933 0.0933-326.55

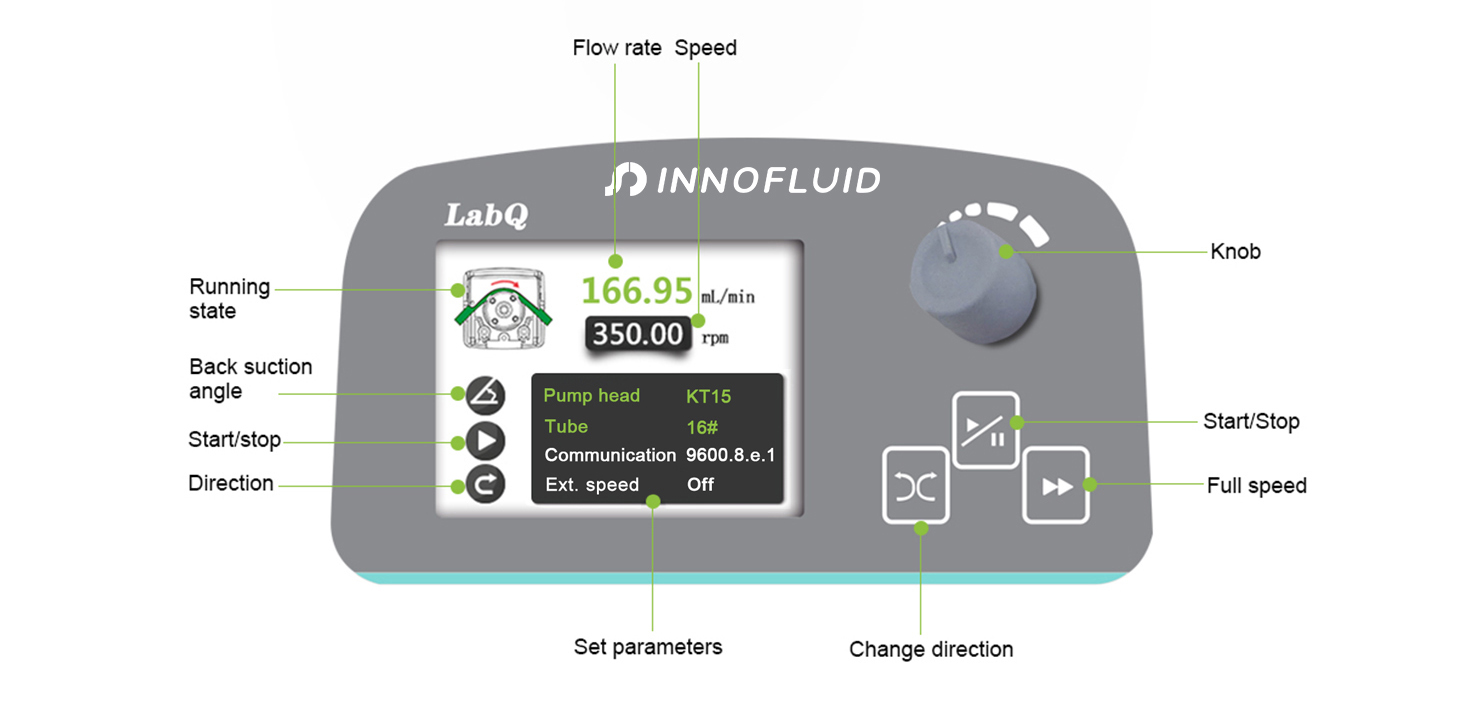

OSD

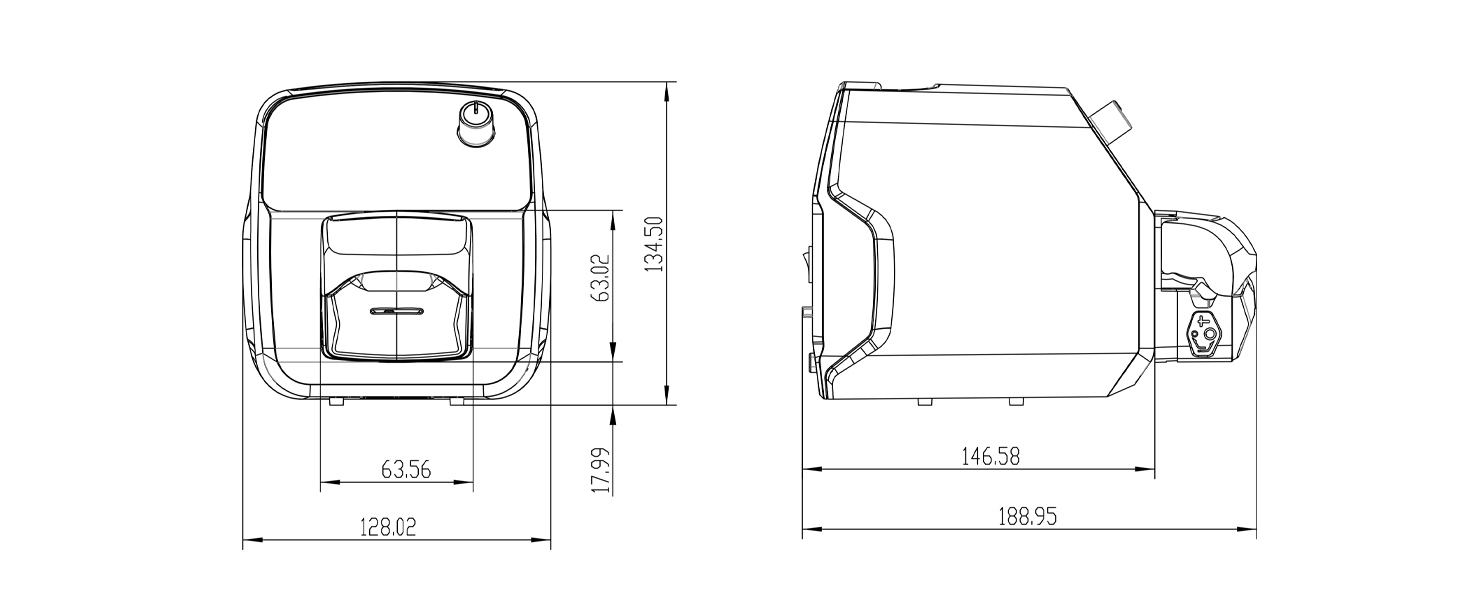

Dimension（Unit：mm）
